Summary of Contents for DivioTec NBR126PA

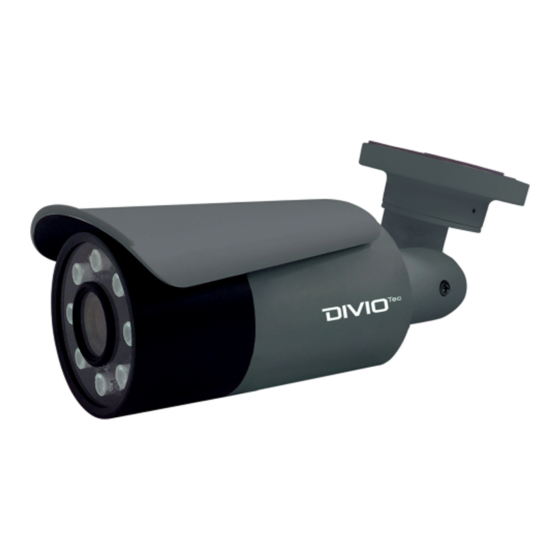

- Page 1 IR Outdoor Bullet Camera NBR126PA/ NBR526PA User Manual Note: The manual is subject to change without notice Part Number: 00125525921_190116...
-
Page 2: Table Of Contents
Content ontents Chapter 1: Product Introduction 1 Image - Overlay ..................22 Overlay ..................22 Overview ....................1 Text Size ..................22 Camera ....................1 Network - Basic ..................23 Cable ....................1 IPv4 Settings ..................23 Hardware Installation ................2 System Settings ................23 IPv6 Settings ..................23 Chapter 2: Camera Configuration Basic Cont. - Page 3 Content Time Setting ..................37 SMTP Server ...................51 Time Zone Setting ................37 Receipient List ................51 System - Maintenance ................38 Network Storage Configurations ............52 System Information ................38 Trigger Event ..................52 Firmware Update ................38 Receipient List ................52 Backup ...................39 Login Certificate ................53 Restore ..................39 Mount and Remove Network Storage ..........53 Video System .................39 Relay Handler Configurations ............54...
-
Page 4: Chapter 1: Product Introduction
Chapter 1: Product Introduction 1: p hapter roduCt ntroduCtIon Overview Camera Cable... -
Page 5: Hardware Installation
Chapter 1: Product Introduction Hardware Installation Name Mounting Screws Wall Mount Bracket (ACB-02) W1 Kit Expansion Bolts Mounting Screws Wall or Ceiling Surface Installation Sticker Description: The mounting surface for the bracket installation needs to withstand at least three times the total weight of the bracket and IP camera. 1. - Page 6 Chapter 1: Product Introduction 6. Adjust the direction of the camera to the desired field of view. 8. Put the cover back and use a hex key wrench to secure the 3 screws. Make sure all the parts of the camera are installed securely. 7.
-
Page 7: Chapter 2: Camera Configuration
Chapter 2: Camera Configuration 2: C hapter amera onfIguratIon Web Browser 1. Locate and open one of the web browsers (such as Internet Explorer, Chrome, Firefox, etc.) shortcut on the desktop. 2. In the address bar, type 192.168.0.250 (default IP address of the camera) and then press the Enter button. -
Page 8: Motorized Lens
Chapter 2: Camera Configuration Motorized Lens Live view Viewer Setup Zoom Control Buttons used to control zooming function. Button Description Returns the camera back to default position. Zoom Position Adjusts the camera’s zoom level. Move the zoom slider bar left or right to adjust the zoom level. -
Page 9: Configuring The Camera's Setting
Chapter 2: Camera Configuration Configuring the Camera’s Setting 1. To configure the camera’s setting, click on the Setup button on the main Setup... -
Page 10: Browsing Through The Configuration Menu
Chapter 2: Camera Configuration Browsing Through the Configuration Menu The following are the camera settings available on the left hand side for: The layout of the configuration menu is split into two sections. All the camera settings are located on the left hand side of the interface, clicking ▪... - Page 11 Chapter 2: Camera Configuration Video Configuration Menu The following are the camera settings available on the left hand side for : ▪ Streaming ▪ System – Video – Audio – Date/Time – Maintenance ▪ Image – User Management – Homepage Layout –...
-
Page 12: Video - Video Configuration
Chapter 2: Camera Configuration Video - Video Configuration Primary Stream Codec Configures the format of the video stream, the options are H.265, H.264, and MJPEG. Resolution Configures the resolution of the video stream. The available options are 1920x1080 and 1280x720. Rate Control Configures the Rate Control mode as CBR (constant bit rate) or CVBR (constrained variable bit rate) for the stream. -
Page 13: Secondary Stream
Chapter 2: Camera Configuration Video Configuration Cont. Target Bitrate Configures the bit rate, the range is 2~8000. Users can enter the value or adjust it through the slider bar. Secondary Stream Codec Configures the format of the video stream, the options are H.265 and H.264. -
Page 14: Third Stream
Chapter 2: Camera Configuration Video Configuration Cont. Third Stream Resolution Configures the resolution of the video stream. The available options are 640x360 and 320x240. Quality Configures the video quality of the stream. The options are High, Mid and Low. Frame Rate Adjusts the frame rate of the video stream, the range is 0~30FPS. -
Page 15: Video - Audio Configuration
Chapter 2: Camera Configuration Video - Audio Configuration Audio Settings Type Select the audio configuration type of the camera. The available options are Line in and Line out. Encoding Adjustment of audio compression. The available options are A-Law and U-Law. Audio Input Level Volume adjustment for audio-in of the camera. -
Page 16: Image - Exposure
Chapter 2: Camera Configuration Image - Exposure Configurations Profile The available options are Day, and Night. AE Mode The available options are Auto, 50Hz, 60Hz and Lock. If Lock is selected, then Exposure Time Control, Gain Control and BLC cannot be edited. - Page 17 Chapter 2: Camera Configuration Exposure Cont. Maximum Gain Select the value of Maximum Gain with the range is 0~42 with the increment of 3. Gain Select the value of Gain with the range is 0~42 with the increment of 3. It can only be edited when Lock is selected as the AE Mode.
-
Page 18: Day Night Setting
Chapter 2: Camera Configuration Exposure Cont. Day Night Setting Image Profile Select the Image Profile mode. The available options are Auto, Force Day, and Force Night. Day Night Control Select the Day and Night control mode. The available options are Auto, Force Day, Force Night, Schedule, and Light Sensor. -
Page 19: Profile Management
Chapter 2: Camera Configuration Exposure Cont. Profile Management Adjusts multiple customized settings in one camera for different times. Profile Select the Profile mode. The available options are profile1, profile2, profile3, profile4, profile5, profile6, profile7, profile8, profile9, and profile10. Profile Schedule Select a Profile to schedule with. - Page 20 Chapter 2: Camera Configuration Exposure Cont. Profile Import/ All Import Select the Import button to import the Profile Data of your choice/ all of the profiles. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.
-
Page 21: Image - Basic Settings
Chapter 2: Camera Configuration Image - Basic Settings Orientation Mirror Enables or Disables the mirror function on the camera. Rotate Allows you to rotate the image from the camera. The available options to rotate the image are 0, 90, 180, and 270. Digital Processing Stabilize Enables or disables video stabilization function. - Page 22 Chapter 2: Camera Configuration Basic Settings Cont. Brightness Adjust Configures the brightness of the image, the range is 0 ~ 100, with 0 being the lowest brightness. Enter the values or adjust the bar to increase or decrease the values. The default value is 50. Hue Adjust Configures the overall hue of the image, the range is 0 ~ 100.
-
Page 23: Image - Roi
Chapter 2: Camera Configuration Image - ROI Configurations ROI is used to select which areas will be monitored and recorded with higher image quality while using lower image quality for other non-ROI zones to save bandwidth and storage. The instructions below illustrate how to setup ROI. -
Page 24: Image - Privacy Zone
Chapter 2: Camera Configuration Image - Privacy Zone Configurations Configures which area of the video stream will be masked for privacy. There are 5 privacy zones that can be configured. 1. Select ON to enable Privacy Zone function. The default is OFF. 2. -
Page 25: Image - Overlay
Chapter 2: Camera Configuration Image - Overlay Overlay Camera Name Specifies a name for the device. The maximum length is 32 characters. Text Color Configures the text colour as White, Black, Green, Yellow, or Red. Font Border Enables or Disables the Font Border function. Content OFF: The default setting is OFF. -
Page 26: Network - Basic
Chapter 2: Camera Configuration Network - Basic IPv4 Settings DHCP Enables or disables DHCP, use this feature if the camera is connected to a network with DHCP server. To manually configure an IP address, disable DHCP and input the IP address, subnet mask, default gateway, primary and secondary DNS server address. -
Page 27: Basic Cont
Chapter 2: Camera Configuration Basic Cont. RTMP Settings Enables or disables RTMP function. Enter website link if necessary. Link Speed Speed and Duplex The available options are Auto, 100Mbps Full Duplex, 100Mbps Half Duplex, 10Mbps Full Duplex, or 10Mbps Half Duplex. -
Page 28: Network - Ftp
Chapter 2: Camera Configuration Network - FTP Configurations Enable Enables or disables FTP access to this camera. This function is only available when an SD card is inserted. You can access files in the SD card attached to the IP camera. Password Specifies the FTP login password to access the IP camera. -
Page 29: Network - Ssl
Chapter 2: Camera Configuration Network - SSL SSL Configurations Mode Disabled: Support for http only. Optional: Support for http & https. Required: Support for https only. Certificate Select Certificate Install Method Provides options to install a new CA certification. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 30: Network - 802.1X
Chapter 2: Camera Configuration Network - 802.1x 802.1x Configurations Protocol The default is None to disable 802.1x function. Select the protocols to enable 802.1x function. The available protocols are EAP-MD5, EAP-TLS, EAP-TTLS or EAP-PEAP. After the protocol has been selected, manually configure the username, password and other required information. -
Page 31: Snmp Configurations
Chapter 2: Camera Configuration Network - SNMP SNMP Configurations The available options are No SNMP Server, SNMP V2c, or SNMP V3. No SNMP Server Disables SNMP function. SNMP V2c Enables or disables SNMPv2c support. Community String Configures the community string. Trap Configuration Specifies the destination IP address to send SNMP trap messages. -
Page 32: Network - Firewall
Chapter 2: Camera Configuration Network - Firewall Firewall Configurations Mode Select OFF to disable the filtering of the specified IP address. Select Allow or Deny in the drop-down menu to specify the type of filtering rule applied to the IP address entered. Address1 to Address8 The IP address and associated protocol (TCP, UDP or None) to filter can be entered here. -
Page 33: Ldap Configurations
Chapter 2: Camera Configuration Network - LDAP LDAP Configurations Enable Enables or Disables the LDAP function. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 34: Ddns Configurations
Chapter 2: Camera Configuration Network - DDNS DDNS Configurations Enable Enables or Disables the DDNS function. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 35: Network - Rtsp
Chapter 2: Camera Configuration Network - RTSP RTSP Configurations Authentication Enables or disables verification of the account and password. The account and password are same as the camera’s login account and password. Port Configures the port number for stream 1 to stream 3. The range is 554/1025~65535. -
Page 36: Multicast (Stream 1 To Stream 3)
Chapter 2: Camera Configuration RTSP Cont. Multicast (Stream 1 to Stream 3) Enable RTSP Multicast Enables or disables RTSP multicast streaming. Always Multicast Check this option to enable the video stream to start multicast streaming without using RTCP. Video IP Configures the multicast address to stream video. - Page 37 Chapter 2: Camera Configuration RTSP Cont. Path Configures the URL address of the video stream. Configures the time-to-live threshold of the multicast datagram before it is discarded by the router. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.
-
Page 38: Bonjour Configurations
Chapter 2: Camera Configuration Network - Bonjour Bonjour Configurations Enable Enables or Disables the Bonjour function. -
Page 39: Upnp Configurations
Chapter 2: Camera Configuration Network - Upnp Upnp Configurations Enable Enables or Disables the Upnp function. -
Page 40: System - Date/Time
Chapter 2: Camera Configuration System - Date/Time Date/Time Configurations Display Format Displays the current date and time. There are various formats to select from the drop-down menu. Time Setting Time Server DHCP: If your DHCP server provides NTP server information, select this setting to enable NTP information retrieval. -
Page 41: System - Maintenance
Chapter 2: Camera Configuration System - Maintenance System Information Firmware Version Displays the current firmware version. Model Name Displays the IP camera model number. Serial Number Displays the IP camera serial number. MAC Address Displays the IP camera MAC number. Firmware Update To update the camera’s firmware, click on the Browse button and locate the firmware image file, once the file is selected, press the Upload button... -
Page 42: Backup
Chapter 2: Camera Configuration Maintenance Cont. Reset to Factory Default Click this button to restore all the camera’s setting back to factory default, including IP address (default is 192.168.1.168). Download Log File Records all the status information of the camera in list format when the camera is connecting to the PC. -
Page 43: System - User Management
Chapter 2: Camera Configuration System - User Management Admin Setting Admin The default username is admin. Users cannot change it. Password Set up the password for administrator’s authorization. Re-type Password Retype the same password to confirm. User List Displays user accounts available on the camera. Press New User to add a new account and set up the authorization level of this user from the following User Information. -
Page 44: User Information
Chapter 2: Camera Configuration User Management Cont. User Information This section allows users to set up each new user’s authorization level. A total of ten accounts can be created for Admins/Views. Access Level Admins: Has full control (read/write) over every configuration menu item. Views: Only has access (read) to the live view of the camera (main screen). -
Page 45: Logo Graph
Chapter 2: Camera Configuration System - Homepage Layout Logo Graph This section allows users to set up a customized logo(GIF, JPG, or PNG) for main page. The available options are Default, or Customer. Click on the Choose File button and choose the logo file, once the file is selected, press the Upload button to upload the logo. -
Page 46: Event - Alarm Handler
Chapter 2: Camera Configuration Event - Alarm Handler Alarm Handler Configurations Enable Enables or disables the alarm schedule setup. Alarm Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. -
Page 47: Event - Motion Detection
Chapter 2: Camera Configuration Event - Motion Detection Motion Configurations This section configures which area of the live video will be monitored for detecting motion. Enable Enables or disables motion detection function. Sensitivity Configures the sensitivity of motion detection, the range is 0 to 100. Zone1 to Zone5 Setup Configures the type of area layout to use for motion detection. -
Page 48: Motion Schedule Settings
Chapter 2: Camera Configuration Motion Detection Cont. Motion Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time. -
Page 49: Event - Tampering Alarm
Chapter 2: Camera Configuration Event - Tampering Alarm Tampering Alarm Configurations Enable Enables or disables tampering alarm function. Sensitivity Configures the sensitivity level of tampering alarm, the options are High, Mid and Low. Tampering Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. -
Page 50: Event - Audio Detection
Chapter 2: Camera Configuration Event - Audio Detection Audio Detection Configurations Enable Enables or disables audio detection function. Mode The available options are Above, or Under. Threshold Configures the threshold of audio detected, the range is 0 ~ 32768, with 0 being the lowest. -
Page 51: Event - Network Loss Detection
Chapter 2: Camera Configuration Event - Network Loss Detection Network Loss Detection Configurations Enable Enables or disables network loss detection function. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 52: Event - Ftp Upload
Chapter 2: Camera Configuration Event - FTP Upload FTP Upload Handler Configurations Configures which type of event trigger to enable and the FTP server address that the camera will connect to. The options are: ▪ Trigger Alarm Detection ▪ Trigger Motion Detection ▪... -
Page 53: Smtp Notification Configurations
Chapter 2: Camera Configuration Event - SMTP Notification SMTP Notification Configurations This section configures the SMTP mail server address that the camera will use for sending emails. From Specifies the email address of the sender. Trigger Event Configures which type of event trigger to enable and the SMTP server address that the camera will connect to. -
Page 54: Smtp Server
Chapter 2: Camera Configuration SMTP Notification Cont. SMTP Server This section configures the SMTP mail server address that the camera will use for sending emails. From Specifies the email address of the sender. Host Address Specifies the host name or IP address of the SMTP mail server. Port Number Specifies the port number of the SMTP mail server. -
Page 55: Network Storage Configurations
Chapter 2: Camera Configuration Event - Network Storage Network Storage Configurations Network Storage This section configures the network storage server address that the camera will use when an event trigger is detected. Trigger Event Configures which type of event trigger to enable and the network storage server that the camera will connect to. -
Page 56: Login Certificate
Chapter 2: Camera Configuration Network Storage - Cont. Login Certificate Username and Password Specifies the login username and password for the network storage server. Mount and Remove Network Storage Mount Set up a network connection with the network storage server. All the video recordings or snapshots from event triggers will be uploaded to the network storage server. -
Page 57: Relay Handler Configurations
Chapter 2: Camera Configuration Relay Handler Configurations Event - Relay Handler This section configures the event trigger options for devices connected to the DI/DO of the camera. Modes The available options are Monostable, or Bistable. Trigger Alarm Detection: When a signal is detected from Alarm in, the Alarm out will be triggered. -
Page 58: Sd Record Handler Configurations
Chapter 2: Camera Configuration Event - SD Record Handler SD Record Handler Configurations Configures which type of event trigger to enable the SD recording and scheduling function. The following options are available: ▪ Enable Trigger Alarm Detection ▪ Enable Trigger Motion Detection ▪... - Page 59 Chapter 2: Camera Configuration SD Record Handler Cont. Overwrite Enables or disables SD card overwrite. Record Type Configures the recording method to record the stream on to the SD card. The options are Video or Snapshot.
-
Page 60: Tcp Notify Configurations
Chapter 2: Camera Configuration Event - TCP Notify TCP Notify Configurations Trigger Alarm Detection: When a signal is detected from Alarm in, the Alarm out will be triggered. Trigger Motion Detection: When a motion detection event is detected, the Alarm out will be triggered. Trigger Motion Zone(1-5) Detection: When a motion event detection in a specified zone is detected, the Alarm out will be triggered. - Page 61 Chapter 2: Camera Configuration TCP Notify Cont. Trigger Tampering Detection: When a tampering is detected from Alarm in, the Alarm out will be triggered. Trigger Object Detection: When an object detection event is detected, the Alarm out will be triggered. Trigger AudioZone(1-5) Detection: When an audio detection is detected, the Alarm out will be triggered.
-
Page 62: Video Analytics - Object Detection
Chapter 2: Camera Configuration Video Analytics - Object Detection Configurations Enable: Enables or disables video analytics. Configures the methods of video analytics, the options are Object-Counting, Line Crossing, Zone Object- Counting, Zone Intrusion, Loitering, and Object Left/Removed. Object-Counting: Counts objects. Detect mode options that available are One way or Two way. - Page 63 Chapter 2: Camera Configuration Object Detection Cont. Zone Intrusion: Detects objects that move into a user specified area. Detect mode options that available are Inside or Outside. Loitering: Detects objects that remain in a user-specified area beyond a specified time. Left click and drag to set a specified area.
- Page 64 Chapter 2: Camera Configuration Object Detection Cont. Object Left: Continuously monitors a specified area to detect objects that have been left. The range of sensitivity is 0~100. Object Removed: Continuously monitors a specified area to detect objects that have been removed. The range of sensitivity is 0~100.
-
Page 65: Object Schedule Settings
Chapter 2: Camera Configuration Object Detection Cont. Object Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time. -
Page 66: Setup Detection Area Settings
Chapter 2: Camera Configuration Object Detection Cont. Setup Detection Area Settings Minimum Width Configures the minimum width of the detection area. Adjust the bar to increase or decrease the minimum width of the detection area. Minimum Height Configures the minimum height of the detection area. Adjust the bar to increase or decrease the minimum height of the detection area. -
Page 67: Push Http Message Settings
Chapter 2: Camera Configuration Object Detection Cont. Push HTTP Message Settings Enable Enables or disables Push HTTP Message to this camera. Host Address To manually input the host address. Push Type Configures the push type of Push HTTP Message to this camera. Push Type options are Event, and Period.
