Summary of Contents for DivioTec NDR153P

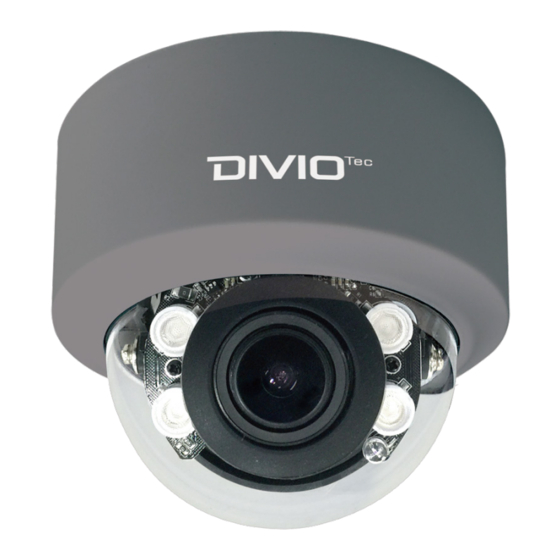

- Page 1 IR Indoor Fixed Mini Dome Camera NDR153P User Manual Note: The manual is subject to change without notice Published March 2018...
-
Page 2: Table Of Contents
Chapter 1: Product Introduction Image - OSD ..................22 General Settings ................22 Overview ....................1 Text Overlay ...................22 NDR153P .....................1 Network - Basic ..................23 Cable ....................1 IPv4 Settings ..................23 Hardware Installation ................2 System Settings ................23 IPv6 Settings ..................23 Chapter 2: Camera Configuration RTMP Settings ................24... - Page 3 GB28181 Configurations ...............36 SMTP Notification Handler Configurations ........51 System - Date/Time ................37 Trigger Event ..................51 Date/Time Configurations ..............37 SMTP Server ...................52 Time Setting ..................37 Recipient List ..................52 Time Zone Setting ................37 Event - Network Storage ...............53 System - Maintenance ................38 Network Storage Configurations ............53 System Information ................38 Trigger Event ..................53...
-
Page 4: Chapter 1: Product Introduction
Chapter 1: Product Introduction 1: p hapter roduCt ntroduCtIon Overview NDR153P Cable... -
Page 5: Hardware Installation
Chapter 1: Product Introduction Hardware Installation Name Installation Sticker Expansion Bolts Mounting Screws IP Camera Top-Cover Housing 1. Put the installation sticker on the ceiling. 2. Remove the base of the camera. Use expansion bolts and mounting screws to fix the base of the camera onto the ceiling. 3. -
Page 6: Chapter 2: Camera Configuration
1. Download the CAM-FINDER installer file.Please access: http://www. before proceeding. diviotec.com/index.php?tid=1603&pid=31&cid=50 2. Unzip the CAM-FINDER file to a location on the hard drive. You can access the camera via a web browser or CAM-FINDER software. - Page 7 Chapter 2: Camera Configuration 5. Confirm the directory that the program will be installed on. To specify 7. Specify which user accounts on the computer can access the program, a different folder, please click on the Browse button and locate the the options are Everyone and Just me.
- Page 8 Chapter 2: Camera Configuration 9. Click on the Next button to begin installation. 10. Once the installation process is complete, click on the Close button to finish. A shortcut will be created on the desktop. Next button Close button...
-
Page 9: Cam-Finder
Chapter 2: Camera Configuration CAM-FINDER 3. Once the camera is discovered, it will show the following information: ▪ Model Name 1. Locate and open the CAM-FINDER software shortcut on the desktop. ▪ IP address ▪ MAC address ▪ UUID ▪ Serial Number ▪... -
Page 10: Introduction To The Cam-Finder User Interface
Chapter 2: Camera Configuration Introduction to the CAM-FINDER User Interface Button Functions Function Button Description Control Bar Search Discovers IP cameras available on the network. Assign IP Changes the IP address of the camera. Opens the web browser to the home page of Home Page the camera. -
Page 11: Web Browser
Chapter 2: Camera Configuration Web Browser 1. Locate and open one of the web browsers (such as Internet Explorer, Chrome, Firefox, etc.) shortcut on the desktop. 2. In the address bar, type 192.168.0.250 (default IP address of the camera) and then press the Enter button. 3. - Page 12 Chapter 2: Camera Configuration Motorized Lens Live view Snapshot Start/Stop Viewer Setup Zoom Control Buttons used to control zooming function. Button Description Returns the camera back to default position. Zoom Control Adjusts the camera to zoom in or out. Zoom Zoom Position Slider Adjusts the camera’s zoom level.
-
Page 13: Configuring The Camera's Setting
Chapter 2: Camera Configuration Configuring the Camera’s Setting 1. To configure the camera’s setting, click on the Setup button on the main screen to enter the configuration menu. Setup... -
Page 14: Browsing Through The Configuration Menu
Chapter 2: Camera Configuration Browsing Through the Configuration Menu The layout of the configuration menu is split into two sections. All the camera settings are located on the left hand side of the interface, clicking The following are the camera settings available on the left hand side: on them will open their corresponding sub-menu on the right. -
Page 15: Video - Video Configuration
Chapter 2: Camera Configuration Video - Video Configuration Primary Stream 1 Codec Configures the format of the video stream, the options are H.265 and H.264. Resolution Configures the resolution of the video stream. The available options are 2592x1944, 2048x1536 and 1920x1080. Rate Control Configures the Rate Control mode as CBR (constant bit rate) or CVBR (constrained variable bit rate) for the stream. -
Page 16: Secondary Stream
Chapter 2: Camera Configuration Video Configuration Cont. Smart GOP Enables or disables Smart GOP feature. Enabling it will allow GOP to automatically increase when no moving objects are detected to save bandwidth. When moving objects are detected, GOP will automatically decrease. -
Page 17: Third Stream
Chapter 2: Camera Configuration Video Configuration Cont. Third Stream Resolution Configures the resolution of the video stream. The available options are 640x360 and 320x240. Quality Configures the video quality of the stream. The options are High, Nor- mal and Low. Frame Rate Adjusts the frame rate of the video stream, the range is 1~30FPS. -
Page 18: Image - Exposure
Chapter 2: Camera Configuration Image - Exposure Configurations Assists users to set up one Day profile and one Night profile. Profile Selects which profile (Day or Night) to configure. AE Mode The available options are Auto, Iris priority, Shutter priority, 50Hz, 60Hz and Lock. - Page 19 Chapter 2: Camera Configuration Exposure Cont. Gain Control The available options are OFF, Low, Medium, High and User Define. Select User Define to enter the value of Maximum Gain (the range is 1~512) manually. Gain The range is 1~512. It can only be edited when Lock is selected as the AE Mode.
-
Page 20: Day Night Setting
Chapter 2: Camera Configuration Exposure Cont. Day Night Setting Image Profile Select Day or Night profile to automatically set up parameters quickly. The available options are AUTO, Force Day and Force Night. Day Night Control Select the Day and Night control mode. The available options are AUTO, Force Day, Force Night and Switch Schedule. -
Page 21: Image - Basic Settings
Chapter 2: Camera Configuration Image - Basic Settings Orientation Mirror Flips the image horizontally (flip left-to-right) or vertically (flip top-to- bottom). They can be selected at the same time. Rotate Allows you to get a vertically oriented image from the camera. It is suitable for narrow corridors, hallways or aisles applications. - Page 22 Chapter 2: Camera Configuration Basic Settings Cont. Brightness Adjust Configures the brightness of the image, the range is 0 ~ 100, with 0 being the lowest brightness. Enter the values or adjust the bar to increase or decrease the values. The default value is 50. Hue Adjust Configures the overall hue of the image, the range is 0 ~ 100.
-
Page 23: Image - Roi
Chapter 2: Camera Configuration Image - ROI Configurations ROI is used to select which areas will be monitored and recorded with higher image quality while using lower image quality for other non-ROI zones to save bandwidth and storage. The instructions below illustrate how to setup ROI. -
Page 24: Image - Privacy Zone
Chapter 2: Camera Configuration Image - Privacy Zone Configurations Configures which area of the video stream will be masked for privacy. There are 5 privacy zones that can be configured. 1. Select ON to enable Privacy Zone function. The default is OFF. 2. -
Page 25: Image - Osd
Chapter 2: Camera Configuration Image - OSD General Settings Camera Name Specifies a name for the device. The maximum length is 32 characters. Background Configures the background color of the text overlay, the options are Translucent (light grey) or Transparent. Text Color Configures the text colour as Black, White, Green or Yellow. -
Page 26: Network - Basic
Chapter 2: Camera Configuration Network - Basic IPv4 Settings DHCP Enables or disables DHCP, use this feature if the camera is connected to a network with DHCP server. To manually configure an IP address, disable DHCP and input the IP address, subnet mask, default gateway, primary and secondary DNS server address. -
Page 27: Rtmp Settings
Chapter 2: Camera Configuration Basic Cont. RTMP Settings RTMP Enables or disables RTMP function. Configures the web URL address. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 28: Network - Ftp
Chapter 2: Camera Configuration Network - FTP Configurations Enable Enables or disables FTP access to this camera. This function is only available when an SD card is inserted. You can access files in the SD card attached to the IP camera. Password Specifies the FTP login password to access the IP camera. -
Page 29: Network - Ssl
Chapter 2: Camera Configuration Network - SSL SSL Configurations Mode Disabled: Support for http only. Optional: Support for http & https. Required: Support for https only. Certificate Select Certificate Install Method Provides options to install a new CA certification. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 30: Network - Ssh
Chapter 2: Camera Configuration Network - SSH SSH Configurations Enable Enables or disables SSH access to this camera. Password Specifies the SSH login password to access the IP camera. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 31: Network - 802.1X
Chapter 2: Camera Configuration Network - 802.1x 802.1x Configurations Protocol The default is None to disable 802.1x function. Select the protocols to enable 802.1x function. The available protocols are EAP-MD5, EAP-TLS, EAP-TTLS or EAP-PEAP. After the protocol has been selected, manually configure the username, password and other required information. -
Page 32: Network - Snmp
Chapter 2: Camera Configuration Network - SNMP SNMP Configurations No SNMP Server Disables SNMP function. SNMP V2c Enables or disables SNMPv2c support. Community String Configures the community string. Trap Configuration Specifies the destination IP address to send SNMP trap messages. SNMP V3 Enables or disables SNMPv3 support. -
Page 33: Network - Firewall
Chapter 2: Camera Configuration Network - Firewall Firewall Configurations Mode Select OFF to disable the filtering of the specified IP address. Select Allow or Deny in the drop-down menu to specify the type of filtering rule applied to the IP address entered. Address1 to Address8 The IP address and associated protocol (TCP, UDP or None) to filter can be entered here. -
Page 34: Network - Ldap
Chapter 2: Camera Configuration Network - LDAP LDAP Configurations Enables or disables LDAP, use this feature if the camera is connected to a network with LDAP server. After enabling LDAP, manually configure the LDAP server and other required information. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 35: Network - Ddns
Chapter 2: Camera Configuration Network - DDNS DDNS Configurations Enable Enables or disables DDNS service. Hostname Hostname of the DDNS account. DDNS Server Select the DDNS service provider from the drop-down menu, the available providers are DynDNS, NO-IP, and Two-DNS. The default option is DynDNS. -
Page 36: Network - Rtsp
Chapter 2: Camera Configuration Network - RTSP RTSP Configurations Authentication Enables or disables verification of the account and password. The account and password are same as the camera’s login account and password. Port Configures the port number for stream 1 to stream 3. The range is 554/1025~65535. -
Page 37: Multicast (Stream 1 To Stream 3)
Chapter 2: Camera Configuration RTSP Cont. Multicast (Stream 1 to Stream 3) Enable RTSP Multicast Enables or disables RTSP multicast streaming. Always Multicast Check this option to enable the video stream to start multicast streaming without using RTCP. Video IP Configures the multicast address to stream video. - Page 38 Chapter 2: Camera Configuration RTSP Cont. Path Configures the URL address of the video stream. Configures the time-to-live threshold of the multicast datagram before it is discarded by the router. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.
-
Page 39: Network - Gb28181
Chapter 2: Camera Configuration Network - GB28181 GB28181 Configurations Enable Enables or disables GB28181 settings. After enabling GB28181, manually configure the related information for GB28181 settings. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. -
Page 40: System - Date/Time
Chapter 2: Camera Configuration System - Date/Time Date/Time Configurations Display Format Displays the current date and time. There are various formats to select from the drop-down menu. Time Setting Time Server None: Disables synchronization of the current date/time through the internet. DHCP: If your DHCP server provides NTP server information, select this setting to enable NTP information retrieval. -
Page 41: System - Maintenance
Chapter 2: Camera Configuration System - Maintenance System Information Firmware Version Displays the current firmware version. Model Name Displays the IP camera model number. Serial Number Displays the IP camera serial number. MAC Address Displays the IP camera MAC number. Firmware Update To update the camera’s firmware, click on the Browse button and locate the firmware image file, once the file is selected, press the Upload button... -
Page 42: Backup
Chapter 2: Camera Configuration Maintenance Cont. Reset to Factory Default Click this button to restore all the camera’s setting back to factory default, including IP address (default is 192.168.0.250). Download Log File Records all the status information of the camera in list format when the camera is connecting to the PC. -
Page 43: System - User Management
Chapter 2: Camera Configuration System - User Management Admin Setting Admin The default username is admin. Users cannot change it. Password Set up the password for administrator’s authorization. Re-type Password Retype the same password to confirm. User List Displays user accounts available on the camera. Press New User to add a new account and set up the authorization level of this user from the following User Information. -
Page 44: User Information
Chapter 2: Camera Configuration User Management Cont. User Information This section allows users to set up each new user’s authorization level. A total of ten accounts can be created for Admins/Views. Access Level Admins: Has full control (read/write) over every configuration menu item. Views: Only has access (read) to the live view of the camera (main screen). -
Page 45: Event - Alarm Handler
Chapter 2: Camera Configuration Event - Alarm Handler Alarm Handler Configurations Enable Enables or disables the alarm schedule setup. Alarm Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. -
Page 46: Event - Motion Detection
Chapter 2: Camera Configuration Event - Motion Detection Motion Configurations This section configures which area of the live video will be monitored for detecting motion. Enable Enables or disables motion detection function. Sensitivity Configures the sensitivity of motion detection, the range is 0 to 100. Zone1 to Zone5 Setup Configures the type of area layout to use for motion detection. -
Page 47: Motion Schedule Settings
Chapter 2: Camera Configuration Motion Detection Cont. Motion Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time. -
Page 48: Event - Sabotage Detection
Chapter 2: Camera Configuration Event - Tampering Alarm Tampering Alarm Configurations Enable Enables or disables tampering alarm function. Sensitivity Configures the sensitivity level of tampering alarm, the options are High, Medium and Low. Tampering Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. -
Page 49: Event - Object Detection
Chapter 2: Camera Configuration Event - Object Detection Object Detection Configurations Enable Enables or disables object detection function. Detect mode Configures the methods of object detection, the options are Line counting, Line crossing, Zone counting and Zone intrusion. Line counting: To create a Line counting area for calculation (no event trigger), on the live video screen, select the area by holding down the mouse button and draw the Line counting lines, release the button once the desired area is covered. - Page 50 Chapter 2: Camera Configuration Object Detection Cont. Zone intrusion: To create a Zone intrusion area for triggering events, on the live video screen, select the area by clicking the mouse button to specify the first anchor point, then draw a line to place the second anchor point. Continue to draw lines for the third and fourth anchor points, then finish off the selection by clicking the first anchor point.
- Page 51 Chapter 2: Camera Configuration Object Detection Cont. Outside for Zone Counting: Objects entering from outside the zone area to the inside will be counted as Outside. Objects leaving from inside the zone area to the outside will not be counted as Inside or Outside. Count Reset Resets all the counting results of Line Counting or Zone Counting to zero.
-
Page 52: Object Schedule Settings
Chapter 2: Camera Configuration Object Detection Cont. Object Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time. -
Page 53: Event - Ftp Upload
Chapter 2: Camera Configuration Event - FTP Upload FTP Upload Handler Configurations Configures which type of event trigger to enable and the FTP server address that the camera will connect to. The options are: ▪ Trigger Alarm Detection ▪ Trigger Motion Detection ▪... -
Page 54: Event - Smtp Notification
Chapter 2: Camera Configuration Event - SMTP Notification SMTP Notification Handler Configurations This section configures the SMTP mail server address that the camera will use for sending emails. From Specifies the email address of the sender. Trigger Event Configures which type of event trigger to enable and the SMTP server address that the camera will connect to. -
Page 55: Smtp Server
Chapter 2: Camera Configuration SMTP Notification Cont. SMTP Server Host Address Specifies the host name or IP address of the SMTP mail server. Port Number Specifies the port number of the SMTP mail server. Username Specifies the login username for the SMTP mail server. Password Specifies the login password for the SMTP mail server. -
Page 56: Event - Network Storage
Chapter 2: Camera Configuration Event - Network Storage Network Storage Configurations Network Storage This section configures the network storage server address that the camera will use when an event trigger is detected. Trigger Event Configures which type of event trigger to enable and the network storage server that the camera will connect to. -
Page 57: Login Certificate
Chapter 2: Camera Configuration Network Storage Cont. Login Certificate Username and Password Specifies the login username and password for the network storage server. Mount and Remove Network Storage Mount Set up a network connection with the network storage server. All the video recordings or snapshots from event triggers will be uploaded to the network storage server. -
Page 58: Event - Relay Handler
Chapter 2: Camera Configuration Event - Relay Handler Relay Handler Configurations This section configures the event trigger options for devices connected to the DI/DO of the camera. Trigger Alarm: When a signal is detected from Alarm in, the Alarm out will be triggered. -
Page 59: Event - Sd Record Handler
Chapter 2: Camera Configuration Event - SD Record Handler SD Record Handler Configurations Configures which type of event trigger to enable the SD recording and scheduling function. The following options are available: ▪ Enable Trigger Alarm Detection ▪ Enable Trigger Motion Detection ▪... -
Page 60: Alarm/Motion/Sabotage/Object Detection Settings
Chapter 2: Camera Configuration SD Record Handler Cont. Alarm/Motion/Tampering/Object Detection Settings Record Type Selected: Snapshot Pre-event Snapshots Configures the number of pre-event snapshots to upload to SD card. The options are 0, 1, 3, 5 and 10. Post-event Snapshots Configures the number of post-event snapshots to upload to SD card. The options are 0, 1, 3, 5, 10, 30 and 60. -
Page 61: Alarm/Motion/Sabotage/Object Detection Settings
Chapter 2: Camera Configuration SD Record Handler Cont. Alarm/Motion/Tampering/Object Detection Settings Record Type Selected: Video Pre-event Record Configures the length of the pre-event recording. The range is 1~5 seconds. FileName Prefix Configures a prefix to append to the filename. The default prefixes for Alarm, Motion, Tamper and Object Detection are Alarm, Motion, Tamper and Object respectively.
