Easy Solar Kit Universal
TSOL- Easy Solar Kit 400-U
V1.0
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSOL-Easy Solar Kit 400-U and is the answer not in the manual?

Questions and answers

Summary of Contents for Tsun TSOL-Easy Solar Kit 400-U

  • Page 1 Easy Solar Kit Universal TSOL- Easy Solar Kit 400-U V1.0 - 1 -...
  • Page 2: Trademarks And Permissions

    To ensure optimal reliability and meet warranty requirements, the TSUN Easy Solar Kit must be installed according to the instructions in this manual. For warranty text refer to www.tsun-ess.com. © 2022 TSUNESS Co., Ltd All rights reserved.
  • Page 3: Table Of Contents

    Easy Solar Kit Installation ............................- 9 - Pre-installation Check ......................................- 9 - Installation Steps ......................................- 10 - TSUN Monitoring System ............................- 17 - Installer ..........................................- 17 - End User ........................................... - 18 - Fault Code and Troubleshooting ..........................- 19 - Maintenance Guide ..............................
  • Page 4: Read This First

    Easy Solar Kit Universal Read This First Dear customer, thank you for choosing the Easy Solar Kit from TSUN. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products.
  • Page 5 Easy Solar Kit Universal Symbol Description This device is directly connected to the public grid, thus all work to the inverter shall only be carried out by qualified personnel. The components inside the inverter will release a lot of heat during operation.
  • Page 6: System Introduction

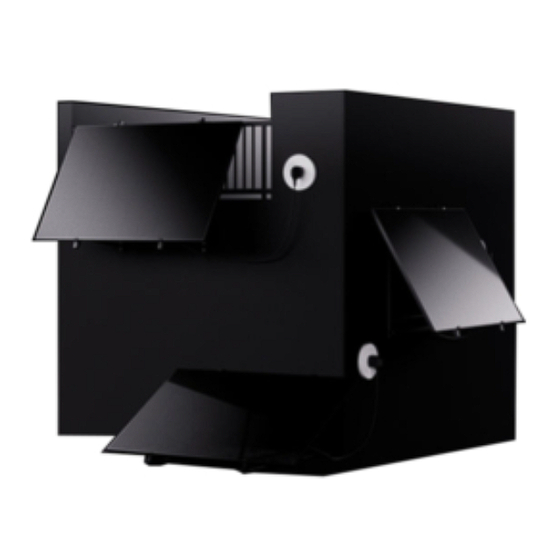

    TSOL - Easy Solar Kit 400-U The microinverter is integrated with the Wi-Fi module and connects to the home Wi-Fi router directly. Users can monitor the power generation of the system by TSUN monitoring App V1.0 - 6 -...
  • Page 7: Parking List

    Easy Solar Kit Universal Parking List Number Designation Amount Picture PV module Bracket Bracket Bracket M8*12 screw Spring washer M8*50 screw Expansion screw Module fastener M8*35 screw Railing hook M8*50 screws and butterfly nuts Buffer strip M10*120 screws and butterfly nuts Stainless steel tie strap with adjustable buckle Allen Key...
  • Page 8: Datasheet

    TSOL-ESK400-U, is in conformity with the EMC (2014/30/EU) on Electromagnetic Compatibility, RED (2014/53/EU) on Radio Equipment, and RoHS (2011/65/EU) on the use of certain hazardous substances in electrical and electronic equipment. The full text of the EU Declaration of Conformity is available on the following website: https://www.tsun-ess.com/File/$random-2023-10-08-053919-T0fvyw-V V1.0 - 8 -...
  • Page 9: Easy Solar Kit Installation

    Pre-installation Check Check the Package Although TSUN’s Easy Solar Kit have surpassed stringent testing and are checked before they leave the factory, it is uncertain that the Easy Solar Kit may suffer damage during transportation. Please check the package for any obvious signs of damage, and if such evidence is present, do not open the package and contact your dealer as soon as possible.
  • Page 10: Installation Steps

    *Note: Compliance with the regulations for photovoltaic installations is the sole responsibility of the end user of the product, and under no circumstances will the brand (TSUN) or the distributor of the brand (innov8 Iberia, S.L) be held responsible for the users' decisions regarding non-compliance with their obligations.
  • Page 11 Easy Solar Kit Universal Step 2. Install the bracket. WARNING ·Ensure that the wall's load-bearing capacity meets installation requirements.(ESK400 weight:30kg) CAUTION ·The drilling diameter is 12mm.  Mark the installation holes position.  Drill holes at marked hole locations.  Install the bracket onto the wall through S4 accessory. V1.0 - 11 -...
  • Page 12 Easy Solar Kit Universal Step 3. Install PV module. DANGER ·Preventing high-altitude falls during PV module installation.  Take out M1, S5 and S6 from the packaging box and install the M1 PV module onto the bracket through S5, S6 accessories. Step 4.
  • Page 13 Easy Solar Kit Universal 2. Balcony Installation Step 1. Assembling bracket.  Take out B1, B2, S1 and S2 from the packaging box and screw B1, B2 through S1, S2 accessories.  Take out B3, S3 from the packaging box and screw B3 with B2, B1 through S3 accessory. Step 2.
  • Page 14 Easy Solar Kit Universal Step 3. Install PV module.  Take out M1, S5 and S6 from the packaging box and install the M1 PV module onto the bracket through S5, S6 accessories Step 4. Hanging system. DANGER ·Preventing high-altitude falls during Easy Solar Kit installation. WARNING ·Ensure that the load-bearing capacity of the balcony railing meets the installation requirements.
  • Page 15 Easy Solar Kit Universal 3. Garden Installation Step 1. Assembling bracket.  Take out B1, B2, S1 and S2 from the packaging box and screw B1, B2 through S1, S2 accessories.  Take out B3, S3 from the packaging box and screw B3 with B2, B1 through S3 accessory. Step 2.
  • Page 16 Easy Solar Kit Universal  Step 3. Place Easy Solar Kit system. CAUTION ·Placing heavy objects on the base is beneficial for improving system stability and wind resistance.  Place the long side of the bracket on the ground, adjust the orientation of the PV module to face sunlight, and place a heavy object on the base bracket to secure the system.
  • Page 17: Tsun Monitoring System

    Easy Solar Kit Universal TSUN Monitoring System The G3 microinverter has an integrated monitoring module inside. The microinverter will directly connect to the router (Wi-Fi Version). Users can use the TSUN Smart APP or enter the TSUN website to monitor the microinverter. Installer Ask for an installer account from the distributor or TSUN.
  • Page 18: End User

    Easy Solar Kit Universal User Guidance of TSUN Monitoring System End User Visit “Google Play” or “Apple Store” and “TSUN SMART”. Download and install it in the mobile phone. TSUN Smart Register a new account in TSUN SMART. Visit https://www.tsun-ess.com/File/$random-2023-09-16-090024-_912he0N or Scan the QR code below to find the latest User Guidance of TSUN SMART.
  • Page 19: Fault Code And Troubleshooting

    Check the voltage of the PV module and make sure that the PV1VoltOver_Fault voltage is below the maximum DC input voltage of the microinverter. If this fault appears continuously, please contact the TSUN PV2VoltOver_Fault service. This warning mostly appears in the morning or at dusk. It’s PV1VoltLow_Fault normal and will disappear automatically.
  • Page 20: Maintenance Guide

    Easy Solar Kit Universal Maintenance Guide Routine Maintenance  Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies.  Always use the personal protective equipment provided by the employer when carrying out maintenance.
  • Page 21 When the product has been opened or altered by unauthorised personnel. Technical Service: If you have technical problems with our products, please contact the TSUN service line. TSUNESS Co., Ltd Tel: +86-512-6618 6028 E-mail: sales@tsun-ess.com | www.tsun-ess.com Add: Building E1, No.
  • Page 22 Easy Solar Kit Universal V1.0 - 22 -...
