Technical Support and E-Warranty Certificate https://www.vevor.com/support

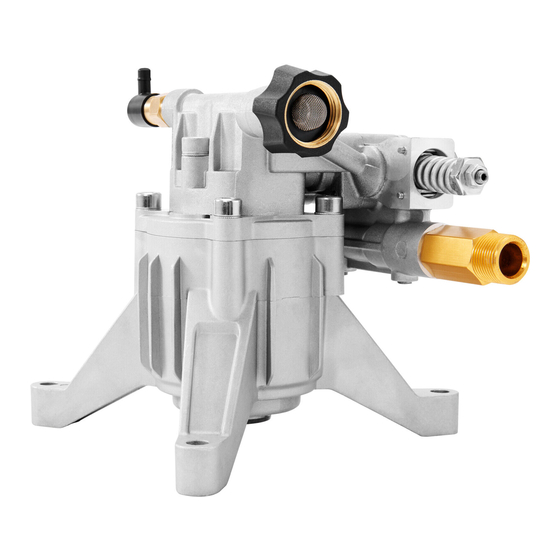

PRESSURE WASHER PUMP
USER MANUAL
MODEL: KXD1810G/KXA1810G
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR KXD1810G
Summary of Contents for VEVOR KXD1810G
- Page 1 Technical Support and E-Warranty Certificate https://www.vevor.com/support PRESSURE WASHER PUMP USER MANUAL MODEL: KXD1810G/KXA1810G We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
-
Page 3: Pressure Washer Pump
CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. -
Page 4: Danger-Warning
GENERAL INEORMATLON Purpose of the manual The manufacturer has provided this manual to provide the operating instructions and the criteria to be complied with when installing, using, and maintaining the pump identified by the designation on the cover. The manufacturer supplies the original instructions in the English language. - Page 5 Information Identifies useful and important information or procedures that should be borne in mind. TECHNICAL INEORMATION Product Specifications and Packing List Model KXD1810G KXA1810G Working Pressure 3100 PSI 3100 PSI Gun Closing Pressure 3400 PSI...
-
Page 6: Product Size
PRODUCT SIZE KXD1810G （Unit:mm） KXA1810G （Unit:mm） - 4 -... -
Page 7: Overall Dimensions
Technical Data The technical and performance data are stated on the cover. The pump's intake circuit must include a filter having a capacity at least twice the pump's delivery rate, which must not cause restrictions or head losses. The recommended degree of filtration is 50-80 mesh. Maximum intake vacuum-0.25 bar, measured at the pump intake. - Page 8 OPERATION NOTICE 1. Prepare Before use, connect the matching outlet pipe, inlet pipe, water absorption filter, etc., and check whether the fasteners and pipe joints are loose. Connect the inlet and outlet pipes of the pump, and install a filter device of no less than 40 mesh/inch at the inlet end to avoid debris entering the pump and affecting the normal operation of the pump.
-
Page 9: Power Selection
5. Medium and temperature The conveying medium of the KX series pump is clear water, and the highest water inlet temperature shall not exceed 40℃. Too high inlet water temperature will cause damage to the pump and affect the service life of the pump. -
Page 10: Residual Risks
Do not use the pump for the supply of drinking water. Do not use the pump on products for human consumption. Do not use the pump on pharmaceutical products. Residual risks Even if the safety regulations and information provided in the manual are complied with, the residual risk described below is still present during the use of the pump. - Page 11 maintenance time according to the actual use situation. 2. Inspection and repair Often check whether the connection part is loose. It is normal for the moving seal to drop oil or water during operation, but the dripping amount does not exceed 1 ml/min (or 10 drops/min); otherwise, the oil seal or water seal should be replaced.
- Page 12 INSTALLATLON INSTRUCTIONS Safety recommendations for installation Take all possible precautions to allow the pump to be installed in a safe, risk-free manner. All installation phases must be taken into consideration when designing the machinery or plant in which the pump is to be installed. The design must consider all mounting points, the means of transmission of the energy sources, and the protective and safety devices required by the relevant regulations to prevent the risk of injury.
- Page 13 7) The relief valve dump line must never be connected to the pump intake line. 8) Install a pressure damper downstream of the pump to minimize the water hammer effect in the delivery pipeline. Connection to the mains water supply The connection must comply with the recommendations provided.
-
Page 14: Maintenance Instructions
MAINTENANCEIN STRUCTIONS Safety recommendations for maintenance Before doing any maintenance work, depressurize the water system and isolate the pump from all energy sources. When the jobs are done, before restarting the pump, check that no tools, rags, or other materials have been left close to moving parts or in hazardous zones. - Page 15 - Inspect the filter cartridge. If the filter cartridge is fouled or damaged, refer to the filter manufacturer's instructions for details on how to restore the filter cartridge to its original filtering condition. Warning When replacing the main and secondary water seal, apply grease on the plunger rod.
- Page 16 DEBUGGING Problem Cause Remedy Restore the tightness of the Pump sucking air intake line Increase the size of the intake pipelines Remove any kinks from the pipes Intake flow rate insufficient Increase the filter capacity or Pump does not reach clean the filter cartridge the specified pressures...
- Page 17 TRQUBLE SHQOTING Problem Cause Remedy Air being sucked into Restore the tightness of the the system intake pipeline connections Intake and/or delivery Replace the valves (1) valve springs broken or collapsed Pump noisy Valves blocked by dirt Clean the valves (1) Worn bearings Replace the bearings (1) Intake liquid...
- Page 18 GENERAL INEORMATION After-Sales service procedures To request after-sales service (in the event of a pump malfunction or failure, etc.), contact your nearest service center or the manufacturer. When requesting after-sales services, always state the pump's data plate data and the type of problem. *There are any minor changes to the numbers included in the user manual without prior notice.
- Page 20 Technical Support and E-Warranty Certificate https://www.vevor.com/support...
Need help?
Do you have a question about the KXD1810G and is the answer not in the manual?
Questions and answers

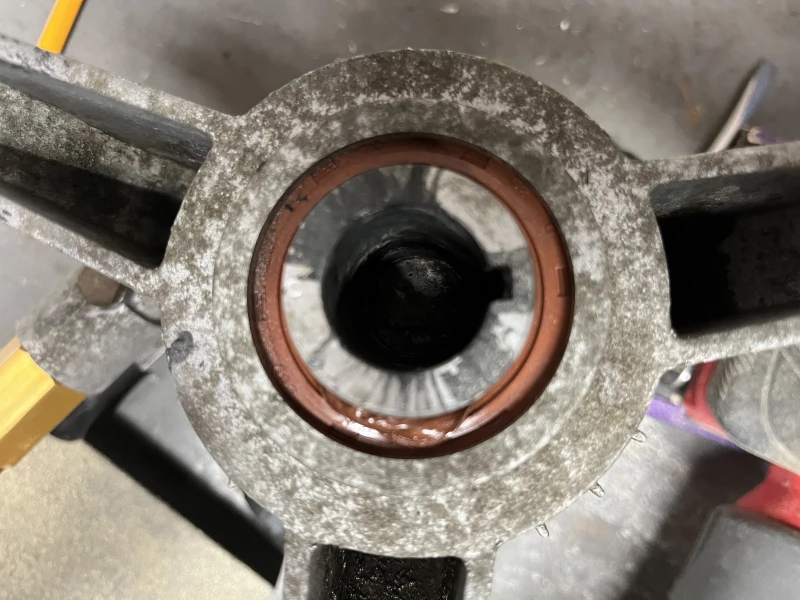

I need a main oil seal for KXD1810G pump
I'm looking for a replacement oil seal for pump model KXD1810G
