PROAIM VCTR-LT-HAP Assembly Manual

Height adjustable telescopic poles for victor lite carts
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

1
Height Adjustable Telescopic Poles for Victor
Lite Carts (VCTR-LT-HAP)
A s s e m b l y M a n u a l

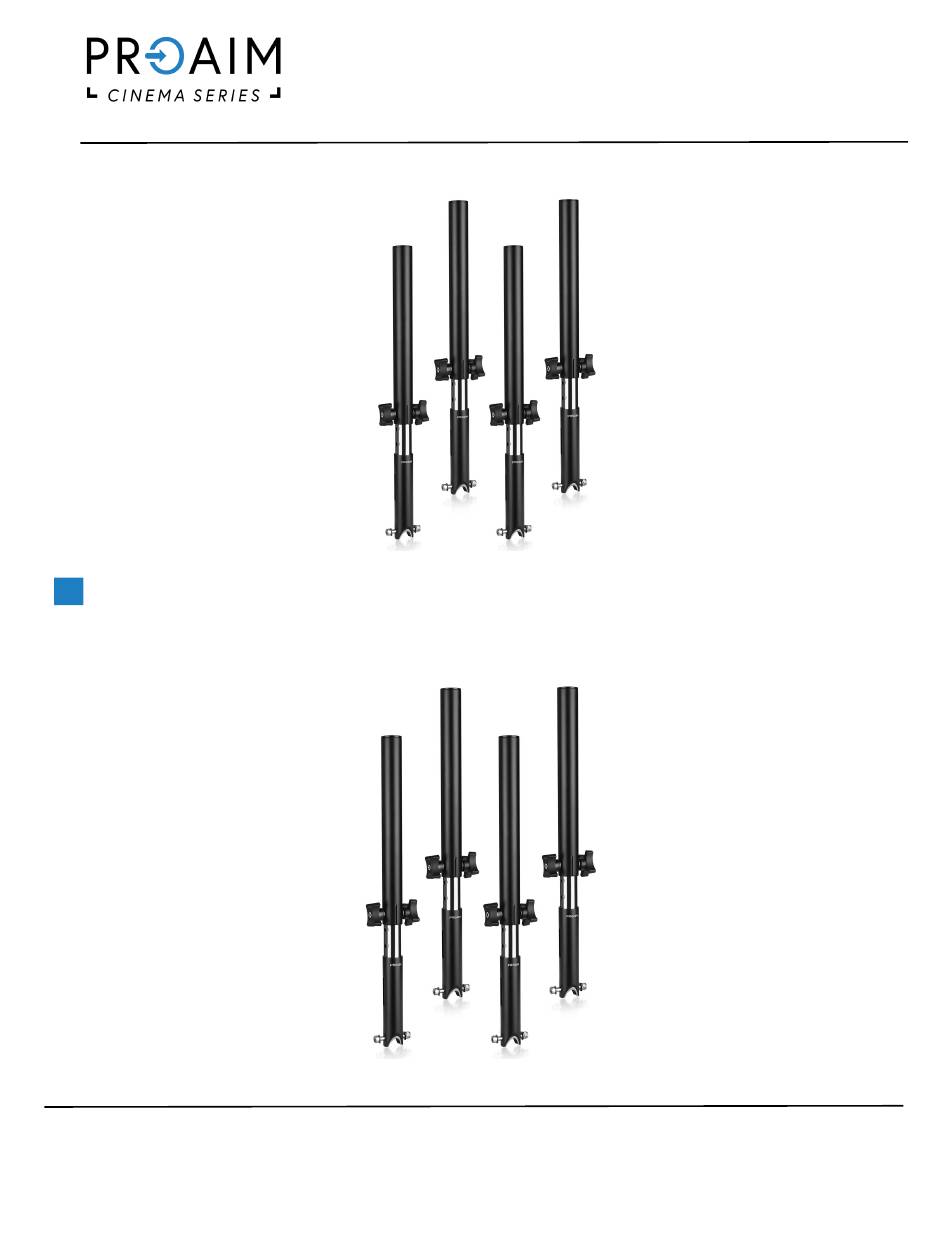

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4 x Height Adjustable Telescopic Poles
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCTR-LT-HAP and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM VCTR-LT-HAP

Summary of Contents for PROAIM VCTR-LT-HAP

  • Page 1 Height Adjustable Telescopic Poles for Victor Lite Carts (VCTR-LT-HAP) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Telescopic Poles Setup • Remove the locking knobs at all corners of the top shelf of the Victor Lite Cart (Not Included) by loosening them. • Now, remove the top shelf by lifting it upwards. NOTE: Two people are required to detach the top shelf from the foldable rods.
  • Page 3 • Follow the same process to remove bolts from the remaining Adjustable Telescopic Poles. • Attach the Adjustable Telescopic Pole to the bottom shelf of the Victor Lite cart. • After attaching to Pole, insert the bolt, as shown in the image. •...
  • Page 4 • Adjust the height of the adjustable Pole per your requirement and insert the locking knob in the Pole to fix the Pole. NOTE: The adjustable poles extend the height and range of operation of the Victor Lite Cart. Height Range- 2.46ft / 29.6” To 1.67ft / 20.1” •...
  • Page 5 YOUR PROAIM HEIGHT ADJUSTABLE POLES FOR VICTOR LITE CARTS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
