Operation Manual

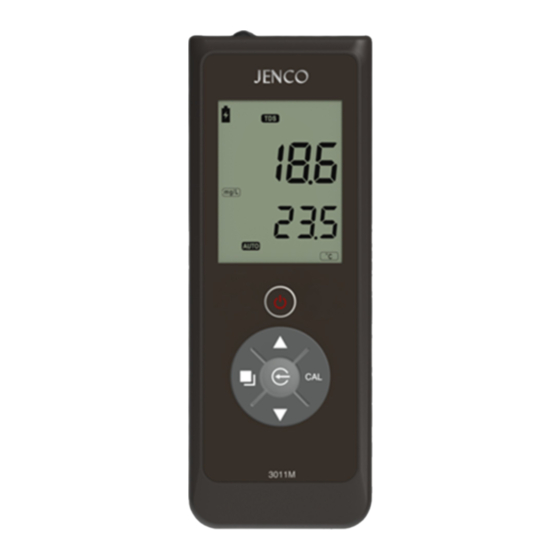

MODEL 3011M
Basis Portable
Cond/TDS/Salt/Temperature Meter
3011M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3011M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JENCO 3011M

Summary of Contents for JENCO 3011M

  • Page 1 Operation Manual MODEL 3011M Basis Portable Cond/TDS/Salt/Temperature Meter 3011M...

  • Page 2: Table Of Contents

    CONTENTS GENERAL INTRODUCTION………………....2 INITIAL INSPECTION……...………………....2 INSTALLING THE BATTERIES..…………....3 CONNECTORS..............3 DISPLAY & KEYS FUNCTIONS…..……………...………… 4 ..............4 A. Display ........5 B. Operational keys description OPERATIONAL PROCEDURES..……......6 ............6 Calibration B. Conductivity, Salinity, TDS Measurements..........8 C. Save, Recall and Delete Data .....9 D.

  • Page 3: General Introduction

    GENERAL INTRODUCTION Thank you for selecting the 3011M meter. The 3011M is a precision tool that measure Conductivity, Salinity, TDS and temperature. A built-in microprocessor stores, calculates and compensates for all parameters related to Conductivity. This unit has a waterproof IP67 case. The touch mode keys are highly reliable with tactile and audio feedback.

  • Page 4: Installing The Batteries

    INSTALLING THE BATTERIES The 3011M meter is packaged with one 9 V battery required for operation. To insert the batteries into the meter, follow the procedure outlined below. Figure 1: Battery compartment 1. Use a screw driver to remove the four screws and battery cover to expose the battery compartment.

  • Page 5: Display & Keys Functions

    DISPLAY & KEYS FUNCTIONS Display Figure 3: Active LCD screen 2. Save- 1. - To save a reading into the Low battery indicator. data storage. 3. COND- 4. TDS- Conductivity measure mode. TDS measure mode. 6. mg/L- 5. Main display for Conductivity, Salinity or TDS Milligrams/Liter indicates values.

  • Page 6: Operational Keys Description

    13. Un(Compensated)- 14. SAL- Uncompensated or Salinity measure mode. Compensated conductivity measure mode. 16. Delete- 15. Recall- To delete stored data. To recall data from the data storage. 17. EACH- 18. ALL- To delete a single set of data To delete all the data in the from the data storage.

  • Page 7: Operational Procedures

    Description On/Off- Powers on and shuts off the meter. Mode- Selects display mode. Pressing this key changes display sequentially display lear uncompensated conductivity, compensated conductivity, Salinity, TDS, Recall and Delete interface. In the calibration mode, press “Mode” key to exit calibration mode.
  • Page 8 access these sections: Power up the unit. Connect the conductivity probe to the unit. Press “Mode” key to go to conductivity mode. “ATC” icon, “uS/cm” icon and “AUTO” icon will lit up. Rinse the conductivity probe in distilled water and immerse them in the standard solution.

  • Page 9: Conductivity, Salinity, Tds Measurements

    or “Down” keys to adjust the value between 15 to 25 °C. Press “Slope/Enter” key to save the new value and go to the next calibration parameter. Standard Solutions Calibration Immerse the probe in a standard of known conductivity solution (see section Preparing Standard Solutions), preferably a standard in the middle range of the solutions to be measured.

  • Page 10: Preparing Conductivity Standard Solutions

    Here are some standard solutions the user can prepare to calibrate the probe of the model 3011M. Standard solution of 1413 uS/cm at 25 °C : Accurately weight out 0.746 grams of research grade dried Potassium Chloride...
  • Page 11 2. Standard solution of 12.90 mS/cm at 25 °C : Accurately weight out 7.4365 grams of research grade dried Potassium Chloride (KCL). Dissolve in 1000 ml of distilled water. 3. Standard solution of 111.9 mS/cm at 25 °C : Accurately weight out 74.264 grams of research grade dried Potassium Chloride (KCL).

  • Page 12: Error Displays And Troubleshooting

    "over " during 1. Increase sample measurements 1. Sample temperature. temperature < -10.0 °C "udr" 2. Replace cell. 2. Defective conductivity cell. [Note: If the meter still does not perform normally after the above measures are taken, call Jenco Service Department.]...

  • Page 13: Specifications

    SPECIFICATIONS Display Range Resolution Accuracy 0.0 ~ 474.9 uS/cm 0.1 uS/cm Conductivity 475 ~ 4749 uS/cm 1 uS/cm K=0.475 4.75 ~ 47.49 mS/cm 0.01 mS/cm 47.5 ~ 200.0 mS/cm 0.1 mS/cm 0.000 ~ 9.999 uS/cm 0.001 uS/cm Conductivity 10.00 ~ 99.99 uS/cm 0.01 uS/cm K=0.1 100.0 ~ 400.0 uS/cm...

  • Page 14: Warranty

    If you purchased the item from our Jenco distributors and it is under warranty, please contact them to notify us of the situation.
  • Page 15 6F., NO. 81, Sec.2, Chang-an E. Rd., Jhongshan District, Taipei City 104, Taiwan TEL: 886-2-2508-2928 FAX: 886-2-2508-2938 E-Mail: sales@jenco.com.tw Website: www.jenco.com.tw Shanghai Jenco Instruments, Ltd. 18 Wang Dong Zhong Road Sijing Town, Songjiang Shanghai, China TEL: 86-021-5761-9599 FAX: 86-021-5761-9598 E-Mail: jencos@jenco.com.cn Website: www.jenco.com.cn...
