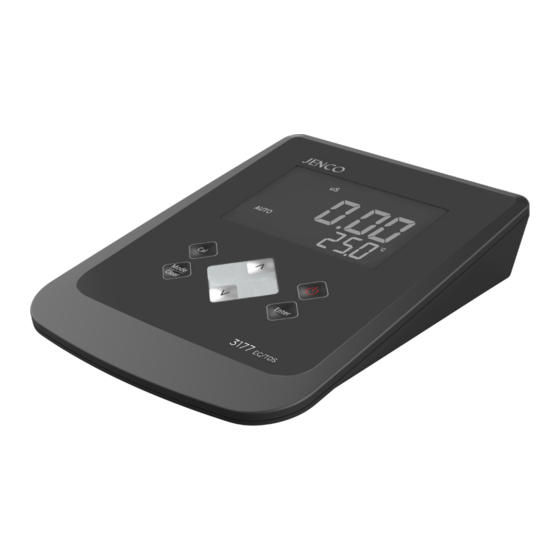

- Page 1 Operation Manual MODEL 3177M Cond/TDS/Salt/Temperature Based Benchtop Meter 3177M...
-
Page 2: Table Of Contents
CONTENTS GENERAL INTRODUCTION......... 2 INITIAL INSPECTION............2 POWER INPUT..............2 INSTALLING THE BATTERIES........3 CONNECTORS..............3 DISPLAY & KEY FUNCTIONS..........4 ..............4 A. Display ........ 5 B. Operational Keys Description OPERATIONAL PROCEDURES........6 ............6 A. Calibration Conductivity, Salinity, TDS Measurements ... 8 Save, Recall and Delete Data ........ 8 .... -
Page 3: General Introduction
GENERAL INTRODUCTION Thank you for selecting the 3177M meter. The 3177M is a precision tool that measures Conductivity, Salinity, TDS and temperature. A built-in microprocessor stores, calculates and compensates for all parameters related to Conductivity. The 3177M is a 5th generation Conductivity/ Salinity/TDS/temperature benchtop meter. -
Page 4: Installing The Batteries
INSTALLING THE BATTERIES To insert the batteries into the meter, follow the procedure outlined below. Use a Philip screw driver and unlock the battery cover by turning the screw driver in the counter clockwise direction. After unlocking the screw, take off the battery cover (Fig.1) Replace the old batteries with new ones and install them on the correct polarity position. -
Page 5: Display & Key Functions
DISPLAY & KEY FUNCTIONS A. Display Figure 3 : Active LCD screen for Conductivity, TDS and Salt 1. mS/cm- 7. mg/L- Millisiemens, indicates Milligrams/Liter indicates Conductivity measurement. TDS measurement. 2. BAT- 8. ppt- Low battery indicator. Parts per thousand, indicates Salinity measurement. -
Page 6: Operational Keys Description
B. Operational Keys Description Figure 4 Description Cal- In conductivity measure mode, press this key to go to the “Calibration” mode. Mode/Clear- Selects display mode. Pressing this key changes the display sequentially to display Conductivity, Salinity, TDS, Recall, Delete One and Delete All. Mode In the conductivity (salinity, TDS) mode, when the Clear... -
Page 7: Operational Procedures
lear lear Up & Down- In the calibration mode, these two keys are used to adjust the conductivity display value or K value. In the “Recall” mode, view saved data and data storage site number by pressing these keys. In the “Delete ALL” mode, select between the “YES”... - Page 8 Temperature Coefficient The unit uses the temperature coefficient to calculate temperature compensated conductivity. The default value is 1.91%. To change the Temperature Coefficient, use the “Up” or “Down” keys to adjust the value between 0.00 to 4.00%. Press “Enter” key to save the new value and go to the next calibration parameter.
-
Page 9: Conductivity, Salinity, Tds Measurements
probe with the CELL K= staying on. Adjust the probe constant to a known value by pressing the “Up” or “Down” keys. You can now input the K value (from 70% to 130% of the probe basic cell constant). Press the “Enter” key to exit calibration and return to normal operation. -
Page 10: Preparing Conductivity Standard Solutions
Here are some standard solutions the user can prepare to calibrate the probe of the model 3177M. 1. Standard solution of 1413 uS/cm at 25 ℃: Accurately weight out 0.746 grams of research grade dried Potassium Chloride (KCL). -
Page 11: Error Displays And Troubleshooting
"over " during conductivity cell. measurements 1. Sample 1. Increase sample temperature temperature. < 0.0 ℃ undr 2. Replace cell. 2. Defective conductivity cell. [Note: If the meter still does not perform normally after the above measures are taken, call JENCO representative.]... -
Page 12: Specifications
SPECIFICATIONS Display Range Resolution Accuracy K=0.1 : 0.00 to 99.99 μS/cm 0.01 μS/cm, 100.0 to 200.0 μS/cm 0.1 μS/cm, K=0.475: 0.0 to 474.9 μS/cm Conductivity ±0.5% F.S. 1 μS/cm, 475 to 4749 μS/cm 0.01 mS/cm, 4.75 to 47.49 mS/cm 0.1 mS/cm 47.5 to 200.0 mS/cm K=0.1 : 0.00 to 99.99 mg/L... -
Page 13: Warranty
If you purchased the item from our JENCO distributors and it is under warranty, please contact them to notify us of the situation.
