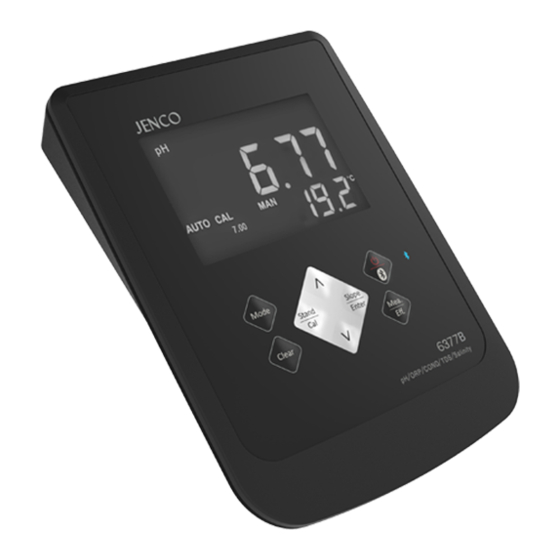

- Page 1 Operation Manual MODEL 6377MB/6377BEU pH/ORP/Cond/TDS/Salt/Temperature Based Bluetooth Benchtop Meter 6377MB/6377BEU...
-
Page 2: Table Of Contents
CONTENTS GENERAL INTRODUCTION.........2 INITIAL INSPECTION............3 POWER INPUT..............3 INSTALLING THE BATTERIES........3 CONNECTORS.............. 4 DISPLAY & KEY FUNCTIONS..........5 ............. 5 A. pH/ORP Display ............6 EC Display ........7 B. Operational Keys Description OPERATIONAL PROCEDURES........8 ..........8 A. Buffer Set Selection ............9 B. -
Page 3: General Introduction
50/60 Hz AC noise rejection. This meter is user-friendly for laboratory application. [ IMPORTANT NOTE: The 6377MB has a 10 KΩ thermistor and the 6377BEU has a 30 KΩ thermistor. Their temperature sensor is not interchangeable.]... -
Page 4: Initial Inspection
INITIAL INSPECTION Carefully unpack the unit and accessories. Inspect for damages made in shipment. If any damage is found, notify your JENCO representative immediately. All packing materials should be saved until satisfactory operation is confirmed. POWER INPUT The model 6377MB/6377BEU can be powered by an UL/CE approved 100 to 240 VAC adaptor as well as 6 “AAA”... -
Page 5: Connectors
CONNECTORS Figure 2: 6377MB Connectors pH/ORP connector (BNC connector) Conductivity/ATC connector (8 PIN connector) AC adaptor input connector Figure 3: 6377BEU Connectors 1. pH/ORP connector (BNC connector) ATC connector for pH (2.5 mm phone jack) 3. Conductivity/ATC connector (8 PIN connector) -
Page 6: Display & Key Functions
DISPLAY & KEY FUNCTIONS A. 1. pH/ORP Display 1.68 4.01 7.00 10.01 4.00 6.86 9.18 12.46 Figure 4 : Active LCD screen for pH and ORP 1. WAIT- 7. AUTO- This will be displayed when AUTOLOCK mode the unit is still waiting for a indicator. -
Page 7: Ec Display
6. CAL- 12. SECONDARY DISPLAY- This will be displayed when the unit enters into the For temperature in ℃. calibration mode. 2. EC Display Figure 5 : Active LCD screen for Conductivity, TDS and Salt 1. mS/cm- 7. mg/L- Millisiemens , indicates Milligrams/Liter indicates Conductivity measurement. -
Page 8: Operational Keys Description
B. Operational Keys Description Figure 6 Description Stand/Cal & Slop/Enter- These two keys are used for pH, ORP and conductivity calibration. their specific functions, please see the "calibration" section in STAND each parameter. In the measure mode, press “Slope/Enter” key 2 seconds to save reading into the data storage site. -
Page 9: Operational Procedures
OPERATIONAL PROCEDURES lope A. pH Buffer Set Selection The 6377MB/6377BEU meter has two buffer sets: 1.68, 7.00, 4.01, 10.01, 12.46 pH and 1.68, 6.86, 4.00, 9.18, 12.46 pH. To change the buffer set, turn off the unit, then press and hold the “Stand/Cal”... -
Page 10: Ph Calibration
B. pH Calibration The 6377MB/6377BEU uses up to 5 point calibration. [Note: If the device requires to calibrate more than one calibration point, the first calibration point must be 6.86/7.00 pH.] 1. Calibration with an ATC/Temp probe in the pH-AUTOLOCK mode. - Page 11 f. The third point, the fourth point and the fifth point are the same as the second point calibration. When the unit completed the fifth point calibration, press the “Mode” key and exit the calibration mode. g. The unit calculates and compensates for the pH electrode slope deviation corresponding to the values of the calibrated buffers.
- Page 12 3. Calibration with an ATC/Temp probe in the pH NON- AUTOLOCK mode. a. Turn the unit on. In the pH mode, press “Clear” key for 5 seconds, all LCD elements will lit up. The meter clears all calibration values stored in internal memory. b.
-
Page 13: Ph Measurements
After calibration, press and hold “Mea./Eff.” key for about 5 seconds to display the new electrode efficiency and offset value. C. pH Measurements To take pH measurements, 6377MB/6377BEU must be calibrated before first use. 1. Measurement with ATC/Temp probe pH-AUTOLOCK mode. - Page 14 The “ATC” icon will lit up. b. Press “Mode” key until “pH”, “AUTO”, “ATC”, “buffer”, “WAIT” icons lit up. c. Rinse the pH electrode and ATC/Temp probe with distilled water and immerse in the sample to be measured. Remove any air bubbles trapped around the probe by shaking or stirring the probe.
-
Page 15: Temperature Measurements
Press “Mode” key until “pH”, “MAN”, “buffer” icons lit up. c. Repeat steps 3 to 4 of “Measurement with an ATC/Temp probe in the pH NON-AUTOLOCK mode”. D. Temperature Measure 6377MB/6377BEU measure temperature independently with the ATC/Temp probe without using the pH electrode. -
Page 16: Conductivity Calibration
a. Connect the optional combination ORP electrode to the BNC connector of the unit. Press “Mode” key until “mV” or “RmV” icon, “MAN”, “AUTO” icons lit up. The "WAIT" icon begins to flash. c. Rinse the ORP electrode with distilled water and immerse it in sample to be measured. - Page 17 Press “Mode” key to go to conductivity mode. “ATC (MAN)” icon, “uS/cm” icon and “AUTO” icon will lit up. 4. Rinse the conductivity probe in distilled water and immerse them in the standard solution. Allow temperature reading to stabilize, then press “Stand/Cal” key to enter the calibration mode.
-
Page 18: Conductivity, Salinity, Tds Measurements
Standard Solutions Calibration Immerse the probe in a standard of known conductivity solution (See section Preparing Standard Solutions), preferably a standard in the middle range of the solutions to be measured. Immerse the probe (at least 2” to 3” or 5 to 7cm from the tip) without touching the sides of the calibration container. -
Page 19: Save,Recall And Delete Data
I. Save, Recall and Delete Data 1. Saving readings to memory. a. In the measure modes, press and hold “Slope/Enter” key for 2 seconds to save data. The “ID” icon and number with the corresponding site number will lit up for a brief moment to indicate a successful data save. -
Page 20: Ph Buffers
Here are some standard solutions the user can prepare to calibrate the probe of the model 6377MB/6377BEU. 1. Standard solution of 1413 uS/cm at 25 ℃: Accurately weight out 0.746 grams of research grade dried Potassium Chloride (KCL). -
Page 21: App Navigation
1. Prepare the 6377MB/6377BEU for Bluetooth connection. Press the “Power/BLE” key for 2 seconds to turn on the 6377MB/6377BEU device. Press the "Mode" key to go to the measure mode. Press and release the “Power/BLE” Key again to turn on the 6377MB/6377BEU Bluetooth connection. - Page 22 Once the 6377MB/6377BEU is connected to the tablet, the device Bluetooth light will blink slowly. After been installed, calibrate 6377MB/6377BEU to ensure the best reading quality. D. Measurement Screen The Measure Screen displays measurement readings, measurement mode, temperature compensation...
- Page 23 F. Calibration Screen The Calibration Screen displays past calibration data. From this screen, tap the “Calibrate” button and follow the step-by-step instructions to calibrate the 6377MB/6377BEU. (Fig.2) G. Settings Screen The Settings Screen displays the various settings that affects the measurements of the 6377MB/6377BEU. (Fig.3) Fig.1...
- Page 24 4. Sync data a. Tap the “Saved” tab in the navigation bar. b. "Sync Data" button is displayed. Tap "Sync Data" button. c. The App will display the loading diagram and the estimated time at the bottom. The display shall return to the Saved screen when the data transmission is completed.
- Page 25 Tap the “Settings” tab in the navigation bar. c. Tap the "Pair" button. d. Wait for the App to discover the 6377MB/6377BEU. Tap the "Connect" button. I. Notes: 1. One meter can be paired to only one App at a time. To put an already-paired meter into pairing mode, one must first close the App it is paired to.
-
Page 26: Fcc Warning Statement
FCC WARNING STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD... -
Page 27: Error Displays And Troubleshooting In Ph/Orp Mode
ERROR DISPLAYS AND TROUBLESHOOTING IN pH/ORP MODE Main Possible cause(s) Corrective Action(s) Display 1. “Stand/Cal” was pressed 1. Press “Clear” key. Allow before the electrode and sufficient time for the ATC/Temp probe settled to electrode and ATC/Temp within +/-1.00 pH of the probe to stabilize. -
Page 28: Error Displays And Troubleshooting In Conductivity/Salinity/Tds Mode
"over " during conductivity cell. measurements 1. Sample 1.Increase sample temperature temperature. < -10.0 ℃ undr 2.Replace cell. 2. Defective conductivity cell. [Note: If the meter still does not perform normally after the above measures are taken, call JENCO representative.]... -
Page 29: Specifications
0.30 to 1.00, default at 0.65 Cell Constant 0.10 (2 Wire), 0.475 (4 wire) Connectivity Bluetooth Thermistor, 10 kΩ at 25 °C (6377MB) Temperature sensor Thermistor, 30 kΩ at 25 °C (6377BEU) 6 X 1.5 V AAA Batteries or 100 to Power... -
Page 30: Warranty
