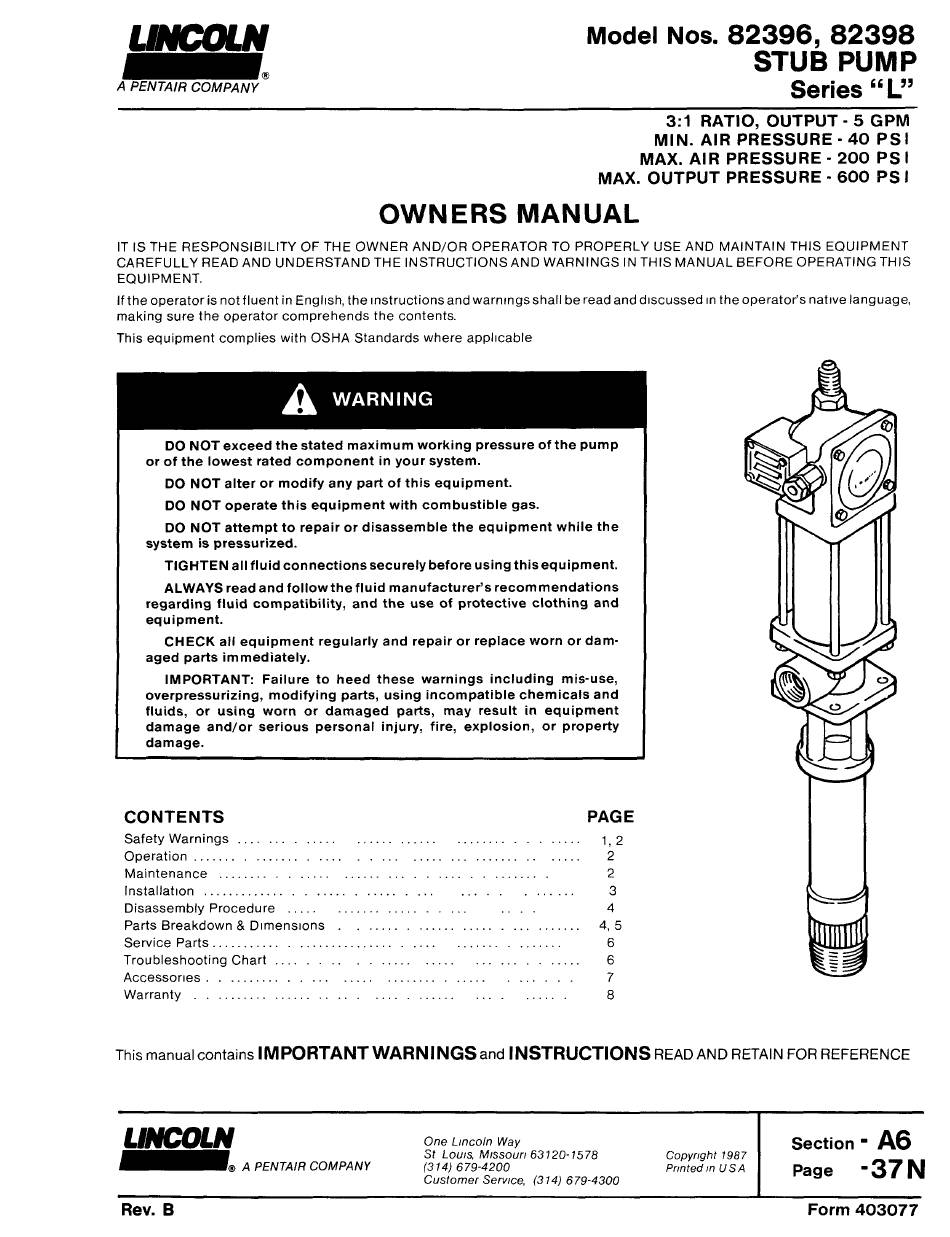

Pentair LINCOLN L Series Owner's Manual

LINCOLN
A PENTAIR COMPANY
Model Nos.
82396, 82398

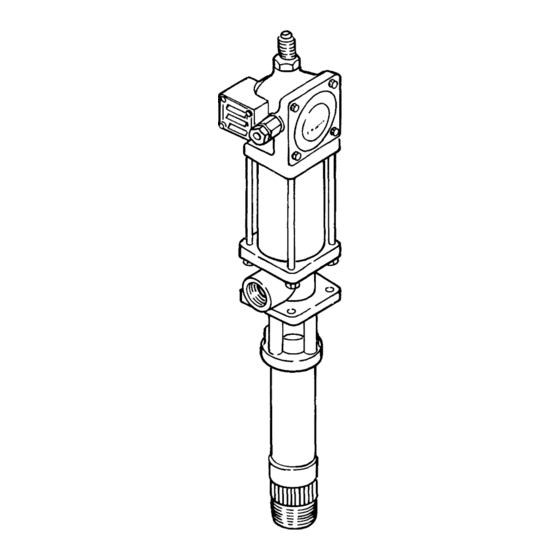

STUB PUMP
Series "L"
®
3:1 RATIO, OUTPUT -5 GPM
MIN. AIR PRESSURE - 40 PSI
MAX. AIR PRESSURE -200 PSI
MAX. OUTPUT PRESSURE -600 PSI
OWNERS MANUAL
IT IS THE RESPONSIBILITY OF THE OWNER AND/OR OPERATOR TO PROPERLY USE AND MAINTAIN THIS EQUIPMENT
CAREFULLY READ AND UNDERSTAND THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE OPERATING THIS
EQUIPMENT.
Ifthe operator is not fluent in English, the instructions and warnings shall be read and discussed in the operator's native language,
making sure the operator comprehends the contents.
This equipment complies with OSHA Standards where applicable
DO NOT exceed the stated maximum working pressure of the pump
or of the lowest rated component in your system.
DO NOT alter or modify any part of this equipment.
DO NOT operate this equipment with combustible gas.
DO NOT attempt to repair or disassemble the equipment while the
system is pressurized.
TIGHTEN all fluid connections securely before using this equipment.
ALWAYS read and follow the fluid manufacturer's recommendations
regarding fluid compatibility, and the use of protective clothing and
equipment.
CHECK all equipment regularly and repair or replace worn or dam-
aged parts immediately.
IMPORTANT: Failure to heed these warnings including mis-use,
overpressurizing, modifying parts, using incompatible chemicals and
fluids, or using worn or damaged parts, may result in equipment
damage and/or serious personal injury, fire, explosion, or property
damage.
CONTENTS
Safety Warnings . . . . . . .......... . . . . . . . . . . .
Operation . . . . . .................... . . . . .
Maintenance . . . . . . . . . . . . . . ........ . . . . . . .
Installation . . . . . . . . . . . ............ . . . . .
Disassembly Procedure . . ...............
Parts Breakdown &Dimensions ................
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Chart ...................
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . .....................
.
PAGE
1,2
2
2
3
4
4,5
6
6
7
8
This manual contains
IMPORTANT WARNINGS
and
INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
LINCOLN
One Lincoln Way
Section
- A6
St Louis, Missouri 63120-1578
Copyright 1987
® A PENTAIR COMPANY (314) 679-4200
Printed in U S A
Customer Service, (314) 679-4300
Page
-37N
Rev. B
Form 403077
