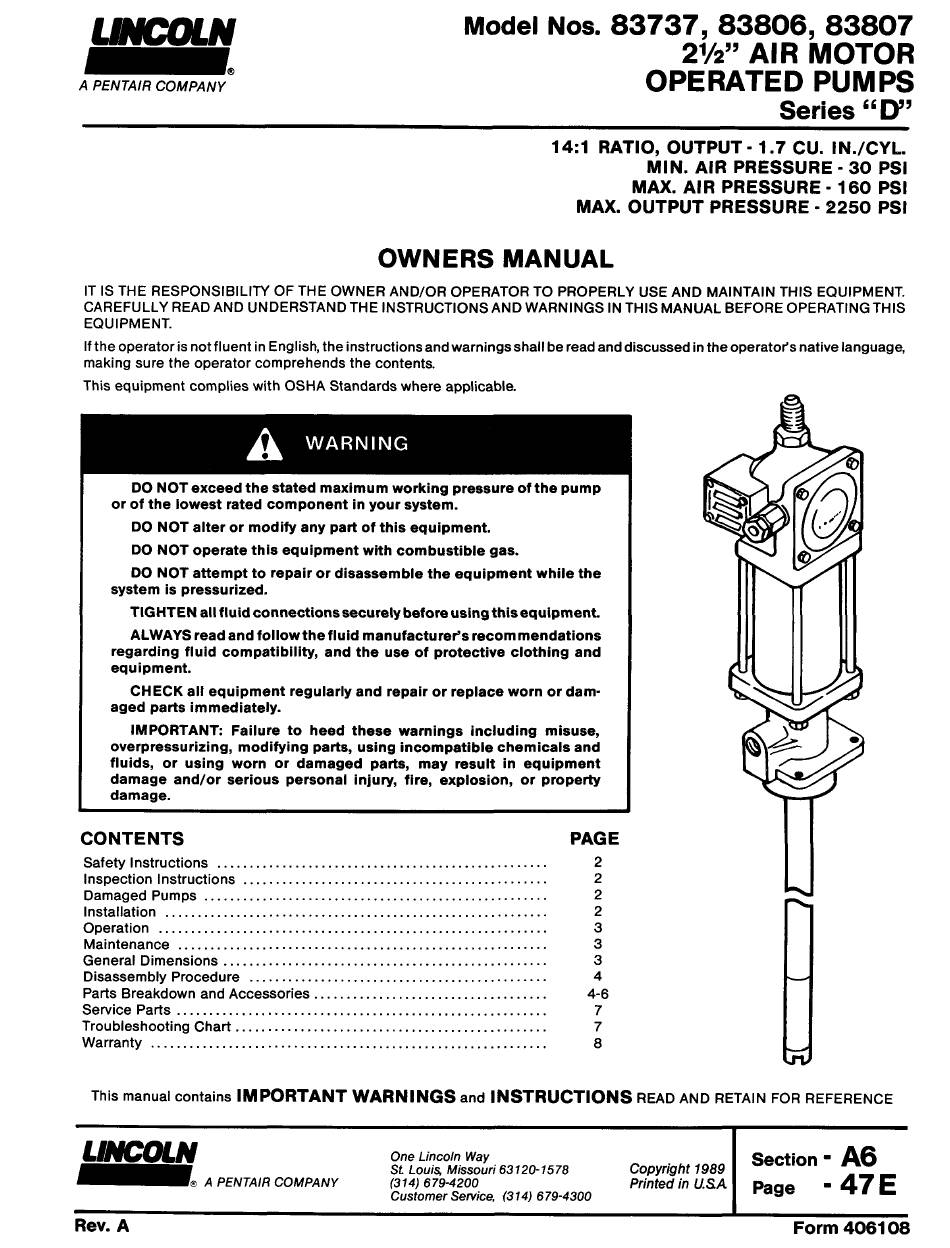

Pentair LINCOLN D Series Owner's Manual

LINCOLN
Model Nos.
83737, 83806, 83807

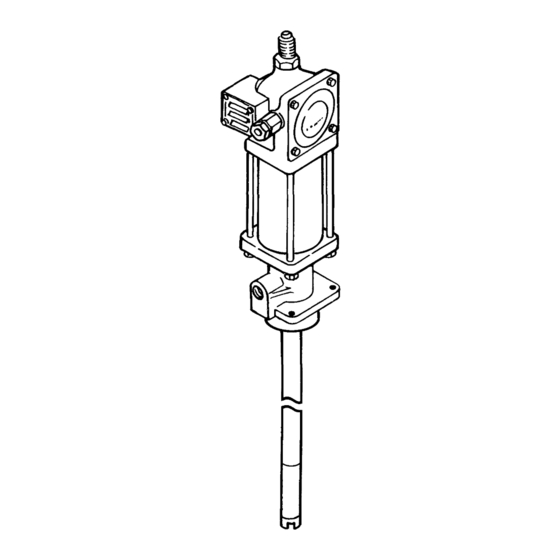

2½" AIR MOTOR
OPERATED PUMPS
Series "D"
A PENTAIR COMPANY
14:1 RATIO, OUTPUT -1.7 CU. IN./CYL.
MIN. AIR PRESSURE -30 PSI
MAX. AIR PRESSURE -160 PSI
MAX. OUTPUT PRESSURE -2250 PSI
OWNERS MANUAL
IT IS THE RESPONSIBILITY OF THE OWNER AND/OR OPERATOR TO PROPERLY USE AND MAINTAIN THIS EQUIPMENT.
CAREFULLY READ AND UNDERSTAND THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE OPERATING THIS
EQUIPMENT.
If the operator is not fluent in English, the instructions and warnings shall be read and discussed in the operator's native language,
making sure the operator comprehends the contents.
This equipment complies with OSHA Standards where applicable.
DO
NOT
exceed the stated maximum working pressure of the pump
or of the lowest rated component in your system.
DO
NOT
alter or modify any part of this equipment.
DO NOT operate this equipment with combustible gas.
DO NOT attempt to repair or disassemble the equipment while the
system is pressurized.
TIGHTEN all fluid connections securely before using this equipment
ALWAYS read and follow the fluid manufacturers recommendations
regarding fluid compatibility, and the use of protective clothing and
equipment.
CHECK all equipment regularly and repair or replace worn or dam-
aged parts immediately.
IMPORTANT: Failure to heed these warnings including misuse,
overpressurizing, modifying parts, using incompatible chemicals and
fluids, or using worn or damaged parts, may result in equipment
damage and/or serious personal injury, fire, explosion, or property
damage.
CONTENTS
Safety Instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Damaged Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Breakdown and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE
2
2
2
2
3
3
3
4
4-6
7
7
8
This manual contains
IMPORTANT WARNINGS
and
INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
LINCOLN
One Lincoln Way
St Louis, Missouri 63120-1578
Copyright 1989
Section
-
A6
A PENTAIR COMPANY (314) 679-4200
Printed in USA
Customer Service, (314) 679-4300
Page
-47E
Rev. A
Form 406108
