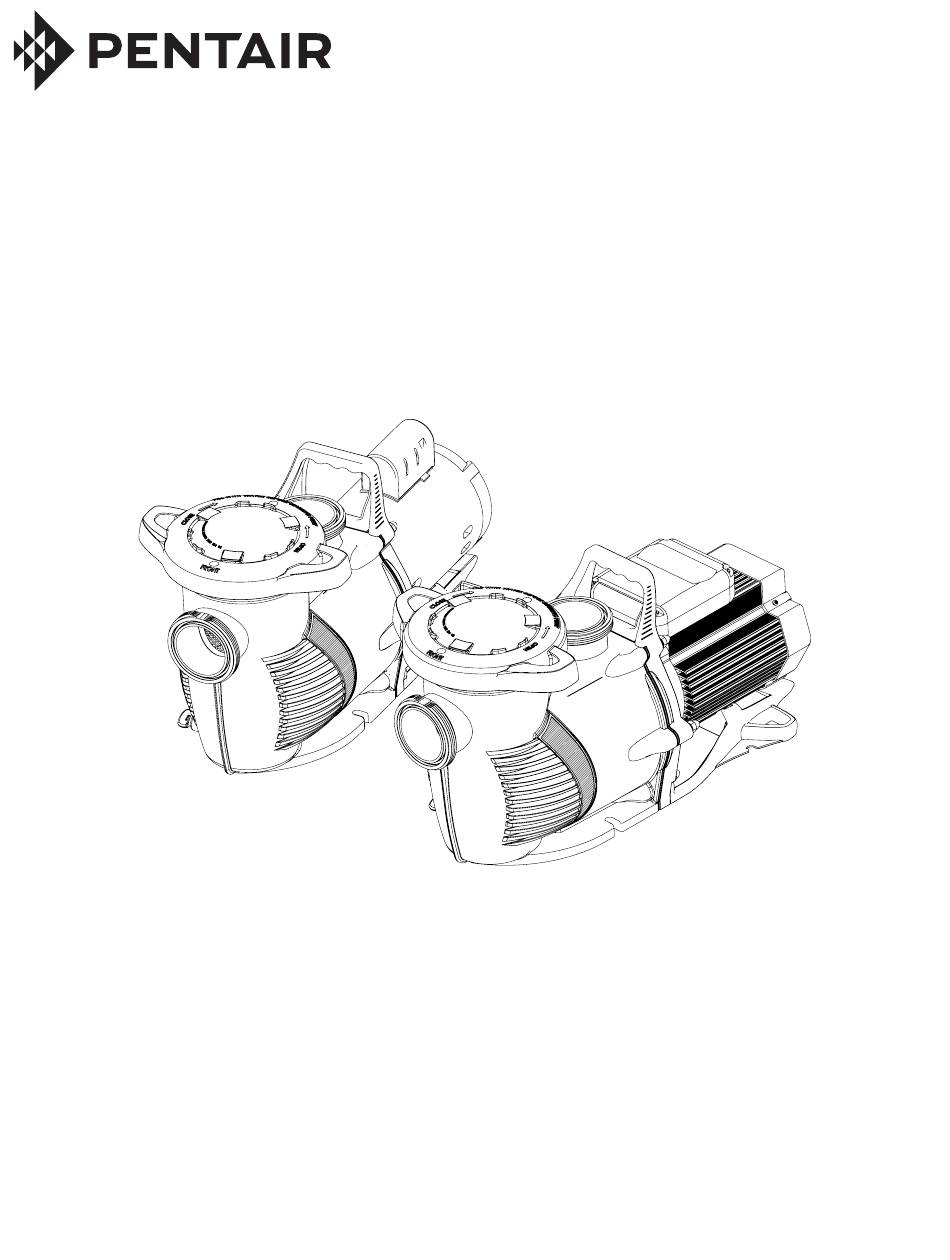

- Page 1 AQUATIC ECO-SYSTEMS ® H3-PLUS SERIES ™ L3-PLUS SERIES ™ ENERGY EFFICIENT AQUACULTURE DUTY PUMPS INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Eco-Systems replacement parts and products, please use the following contact information: Customer Service Web site Monday to Thursday: 8 AM to 7 PM EST Visit www.pentairaes.com* Friday: 8 AM to 5 PM EST... -
Page 3: Important Pump Warning And Safety Instructions
• Never open the inside of the drive motor enclosure. There is a This guide provides installation and operation instructions capacitor bank that holds a 230 VAC charge even when there is no for this product. Consult Pentair with any questions regarding this power to the unit. equipment. - Page 4 STANDARDS AND GUIDELINES. Circulation systems operate under high pressure. When any part of the circulating system (i.e. A clearly labeled emergency shut-off switch for the Pentair Water Pool and Spa ® locking ring, pump, filter, valves, etc.) is serviced, IMPORTANT SAFETY INSTRUCTIONS pump must be in an easily accessible, obvious place.
-
Page 5: Pump Overview
PUMP OVERVIEW The H3-Plus Series™ and L3-Plus Series™ Aquaculture Duty Pumps feature a heavy duty 56 square flange motor and highly engineered hydraulics. With capabilities in excess of 200 gpm, the H3-Plus Series and L3-Plus Series pumps are an ideal choice for many aquacultural and commercial applications. -
Page 6: Electrical Wiring Installation
ELECTRICAL WIRING INSTALLATION RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. The H3-Plus Series™ or L3-Plus Series™ Aquaculture Duty Pump must be installed by a licensed or certified electrician or a qualified service professional in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to users, installers, or others due to electrical shock, and may also cause damage to property. -
Page 7: Operating The Pump
OPERATING THE PUMP DO NOT run the pump dry. If the H3-Plus Series™ or L3-Plus Series™ Aquaculture Duty Pump is run dry, the mechanical seal will be damaged and the pump will start leaking. If this occurs, the damaged seal must be replaced. ALWAYS maintain proper water level. -
Page 8: Maintenance
MAINTENANCE DO NOT open the strainer pot if the H3-Plus Series™ or L3-Plus Series™ Aquaculture Duty Pump fails to prime or if pump has been operating without water in the strainer pot. Pumps operated in these circumstances may experience a build up of vapor pressure and may contain scalding hot water. -
Page 9: Servicing
SERVICING Always disconnect power to the H3-Plus Series™ or L3-Plus Series™ Aquaculture Duty Pump at the circuit breaker and disconnect the communication cable before servicing the pump. Failure to do so could result in death or serious injury to service people, users or others due to electric shock. -
Page 10: Pump Reassembly
Pump Reassembly 1. Install the spring end of the mechanical seal 9. Fill the H3-Plus Series™ or L3-Plus Series™ onto the impeller shaft. Be sure black/carbon Aquaculture Duty Pump with water. face is facing outward. 10. Reinstall the pump lid and locking ring; see 2. -
Page 11: Troubleshooting
TROUBLESHOOTING RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. Improper installation will create an electrical hazard which could result in death or serious injury to pump users, installers, or others due to electrical shock, and may also cause damage to property. 1. If you are not familiar with your filtering system and/or heater: a. -
Page 12: Replacement Parts
REPLACEMENT PARTS H3-Plus Series and L3-Plus Series Aquaculture Duty Pump ™ ™ Item No. Description H3/L3-PLUS Wet End Assembly 407000 Power End Assembly See Motor Table Union Kit Without Tap 410020 Lid/Locking Ring Assembly 401006 XF Series Replacement Basket 400007Z Lid/Locking Ring O-Ring 35505-1440 Drain Plug O-Ring... -
Page 13: Motor Table
Motor Table Model Name Description Motor Part Number Power End Part Number H3-PLUS-20 5HP TEFC 208~230/460V 3PH 354814 407619 H3-PLUS-12 3HP TEFC 208~230/460V 3PH 354812 407618 H3-PLUS-8 2HP TEFC 208~230/460V 3PH 354810 407617 H3-PLUS-201 5HP TEFC 208-230V 1PH 354820 407634 H3-PLUS-121 3HP TEFC 208-230V 1PH 354818... -
Page 14: Pump Performance Curves
Pump Performance Curves H3-PLUS SERIES/L3-PLUS SERIES Performance Curves Volumetric Flow Rate in US Gallons Per Minute Pump Model Performance Curve H3-PLUS-20, H3-PLUS-201 H3-PLUS-12, H3-PLUS-121 H3-PLUS-8, H3-PLUS-81 L3-PLUS-160 L3-PLUS-120 L3-PLUS-100 H3-Plus Series™ and L3-Plus Series™ Series Energy Efficient Aquaculture Duty Pump Installation and User’s Guide... - Page 15 NOTES...
- Page 16 Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Aquatic Eco-Systems, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
