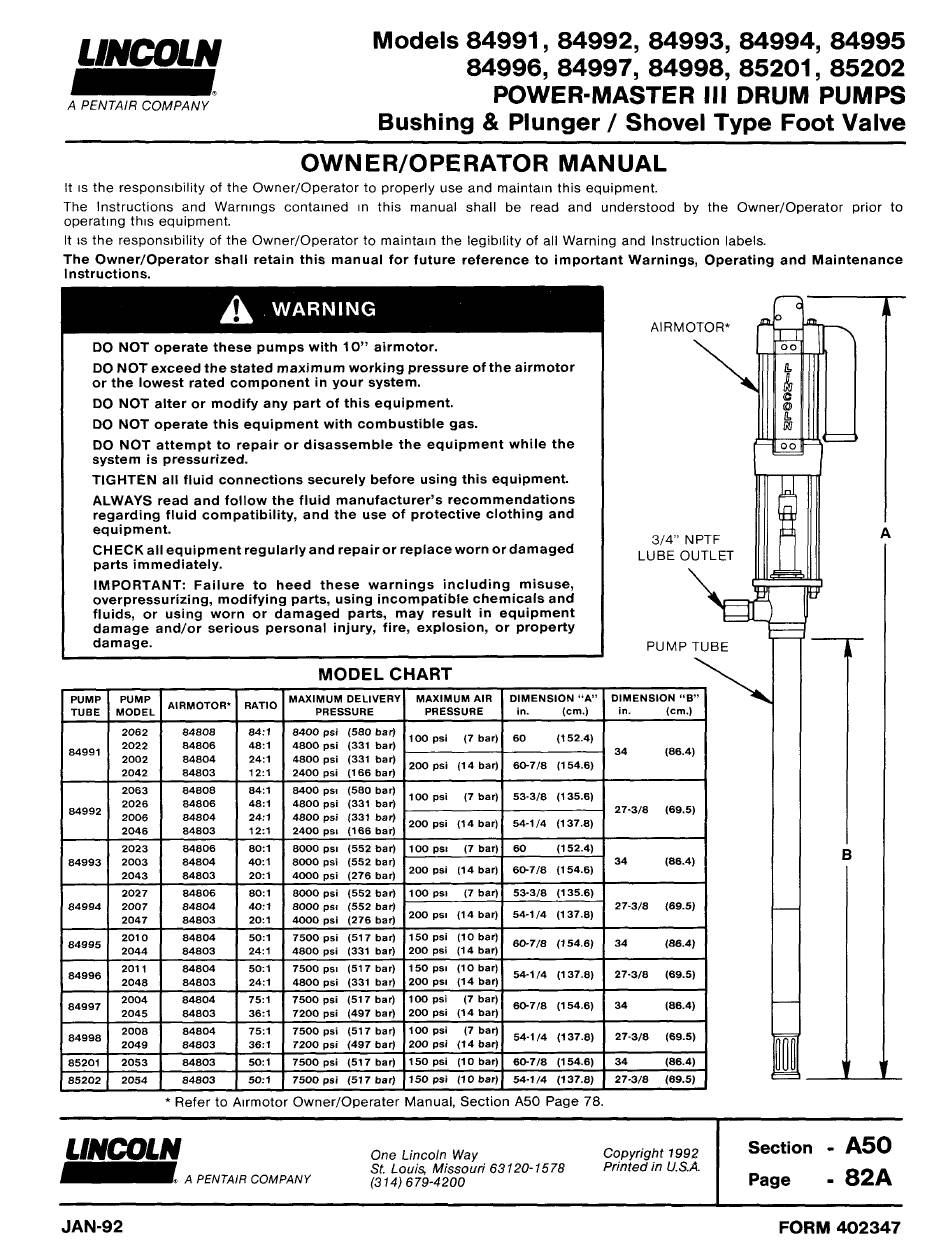

Pentair LINCOLN POWER-MASTER III Owner's/Operator's Manual

LINCOLN
®
A PENTAIR COMPANY
Models 84991, 84992, 84993, 84994, 84995
84996, 84997, 84998, 85201, 85202
POWER-MASTER Ill DRUM PUMPS
Bushing & Plunger / Shovel Type Foot Valve
OWNER/OPERATOR MANUAL
H IS the responsibility of the Owner/Operator to properly use and maintain this equipment.
The Instructions and Warnings contained in this manual shall be read and understood by the Owner/Operator prior to
operating this equipment.
It IS the responsibility of the Owner/Operator to maintain the legibility of all Warning and Instruction labels.
The Owner/Operator shall retain this manual for future reference to important Warnings, Operating and Maintenance
Instructions.
WARNING
DO NOT operate these pumps with 10" airmotor.
DO NOT exceed the stated maximum working pressure of the airmotor
or the lowest rated component in your system.
DO NOT alter or modify any part of this equipment.
DO NOT operate this equipment with combustible gas.
DO NOT attempt to repair or disassemble the equipment while the
system is pressurized.
TIGHTEN all fluid connections securely before using this equipment.
ALWAYS read and follow the fluid manufacturer's recommendations
regarding fluid compatibility, and the use of protective clothing and
equipment.
CHECK ail equipment regularly and repair or replace worn or damaged
parts immediately.
IMPORTANT: Failure to heed these warnings including misuse,
overpressurizing, modifying parts, using incompatible chemicals and
fluids, or using worn or damaged parts, may result in equipment
damage and/or serious personal injury, fire, explosion, or property
damage.
MODEL CHART
PUMP
PUMP
AIRMOTOR*
RATIO MAXIMUM DELIVERY MAXIMUM AIR DIMENSION "A" DIMENSION "B"
TUBE
MODEL PRESSURE PRESSURE in. (cm.)
in. (cm.)
2062 84808 84:1 8400 psi (560 bar)
2022 84806 48:1 4800 psi (331 bar)
100 psi (7 bar) 60 (152.4)
84991
2002 84804
24:1
34
4800 psi (331 bar)
(86.4)
2042 84803 12:1 2400 psi (166 bar)
200 psi (14 bar) 60-7/8 (154.6)
2063
84806
84:1 8400 psi (580 bar)
2026 84806 48:1 4800 psi (331 bar)
100 psi (7 bar) 53-3/8 (135.6)
84992
2006 84804 24:1 4800 psi (331 bar)
27-3/8 (69.5)
2046 84803 12:1 2400 psi (166 bar)
200 psi (14 bar) 54-114 (137.8)
2023 84806 80:1 8000 PSI (552 bar) 100 psi (7 bar) 60 (152.4)
84993
2003 84804 40:1 6000 psi (552 bar) 34
200 psi (14 bar) 60-7/8 (154.6)
(86.4)
2043 84803 20:1 4000 psi (276 bar)
2027 84806 80:1 8000 psi (552 bar)
100 psi
(7 bar) 53-3/8 (135.6)
84994 2007 64804 40:1 8000 psi (552 bar)
27-3/8 (69.5)
(14 bar) 54-114 (137.8)
84995
84996
64997
64998
85201
2047
2010
2044
2011
2048
2004
2045
2008
2049
2053
84803 20:1
84804 50:1
84803 24:1
84804 50:1
84803 24:1
84804 75:1
(10 bar)
200 psi
60-7/8 (154.6)
34
(86.4)
(10 bar)
(14 bar)
54-1/4 (137.8)
27-3/8
(69.5)
84803
36:1
84804 75:1
84803 36:1
84803 50:1
4000 psi (276 bar)
7500 psi (517 bar)
4800 psi (331 bar)
7500 psi (517 bar)
4800 psi (331 bar)
7500 psi (517 bar)
7200 psi (497 bar)
7500 psi (517 bar)
7200 psi (497 bar)
7500 psi (517 bar)
200 psi
150
psi
200 psi
150 psi
200 psi
100 psi
200 psi
100
psi
(7 bar)
(14 bar)
60-7/8 (154.6) 34 (86.4)
54-114 (137.8)
200 psi (14 bar)
27-3/8 (69.5)
150 psi (10 bar) 60-7/8 (154.6) 34 (86.4)
85202 2054
* Refer to Airmotor Owner/Operater Manual, Section A50 Page 78.
84803 50:1 7500 psi (517 bar) 150 psi (10 bar) 54-1/4 (137.8) 27-3/8 (69.5)
LINCOLN
One Lincoln Way
Copyright 1992
Section -
A50
St. Louis Missouri 63120-1578
Printed in U.S.A.
® A PENTAIR COMPANY
(314) 679-4200
Page
-
82A
JAN-92
