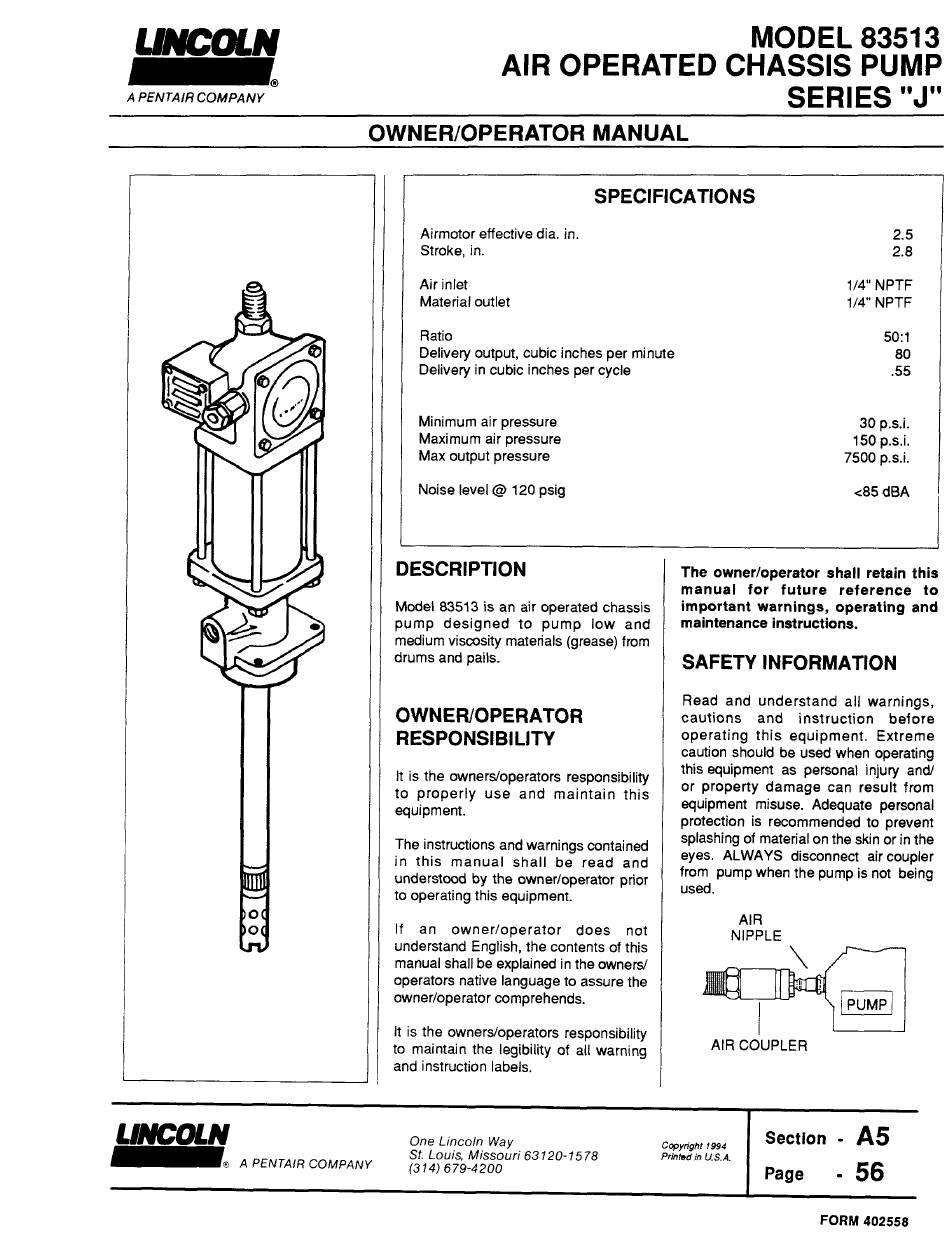

Pentair Lincoln J Series Operator's Manual

LINCOLN
A PENTAIR COMPANY
MODEL 83513

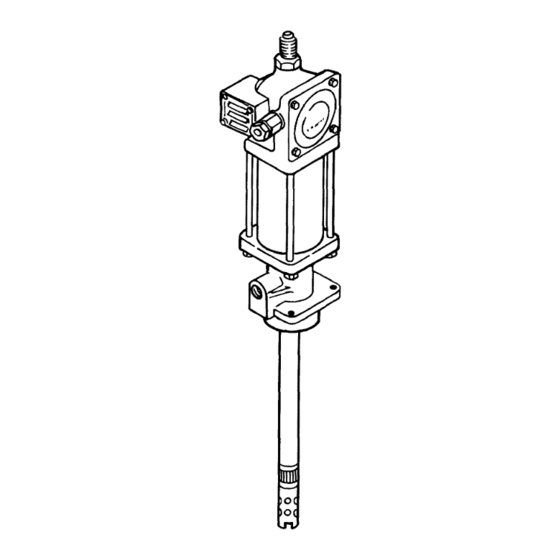

AIR OPERATED CHASSIS PUMP
SERIES "J"
®
OWNER/OPERATOR MANUAL
SPECIFICATIONS
Airmotor effective dia. in.
2.5
Stroke, in. 2.8
Air inlet
1/4" NPTF
Material outlet
1/4" NPTF
Ratio
50:1
Delivery output, cubic inches per minute
80
Delivery in cubic inches per cycle .55
Minimum air pressure 30 p.s.i.
Maximum air pressure 150 p.s.i.
Max output pressure 7500 p.s.i.
Noise level @ 120 psig
<85 dBA
DESCRIPTION
Model 83513 is an air operated chassis
pump designed to pump low and
medium viscosity materials (grease) from
drums and pails.
OWNER/OPERATOR
RESPONSIBILITY
It
is the owners/operators responsibility
to properly use and maintain this
equipment.
The instructions and warnings contained
in this manual shall be read and
understood by the owner/operator prior
to operating this equipment.
If an owner/operator does not
understand English, the contents of this
manual shall be explained in the owners/
operators native language to assure the
owner/operator comprehends.
It is the owners/operators responsibility
to maintain the legibility of all warning
and instruction labels.
The owner/Operator shall retain this
manual for- future reference to
important warnings, operating and
maintenance instructions.
SAFETY INFORMATION
Read and understand all warnings,
cautions and instruction before
operating this equipment. Extreme
caution should be used when operating
this equipment as personal injury and/
or property damage can result from
equipment misuse. Adequate personal
protection is recommended to prevent
splashing of material on the skin or in the
eyes. ALWAYS disconnect air coupler
from pump when the pump is not being
used.
LINCOLN
One
Lincoln Way
Copyright 1994
Section -
A5
St. Louis, Missouri 63120-1578
Printed in U.S.A.
®
A PENTAIR COMPANY
(314) 679-4200
Page
-56
FORM 402558
