Installation

Hardware Connections for the IPAC (Shown with Mounting Plate Attached)
2 • Integrated Professional Automation Computer: IPAC
The following tools are required for installation of an IPAC:
•
Philips screwdriver
•
Flat screwdriver; 3/32" (2.4 mm) blade size

Install the Mounting Plate

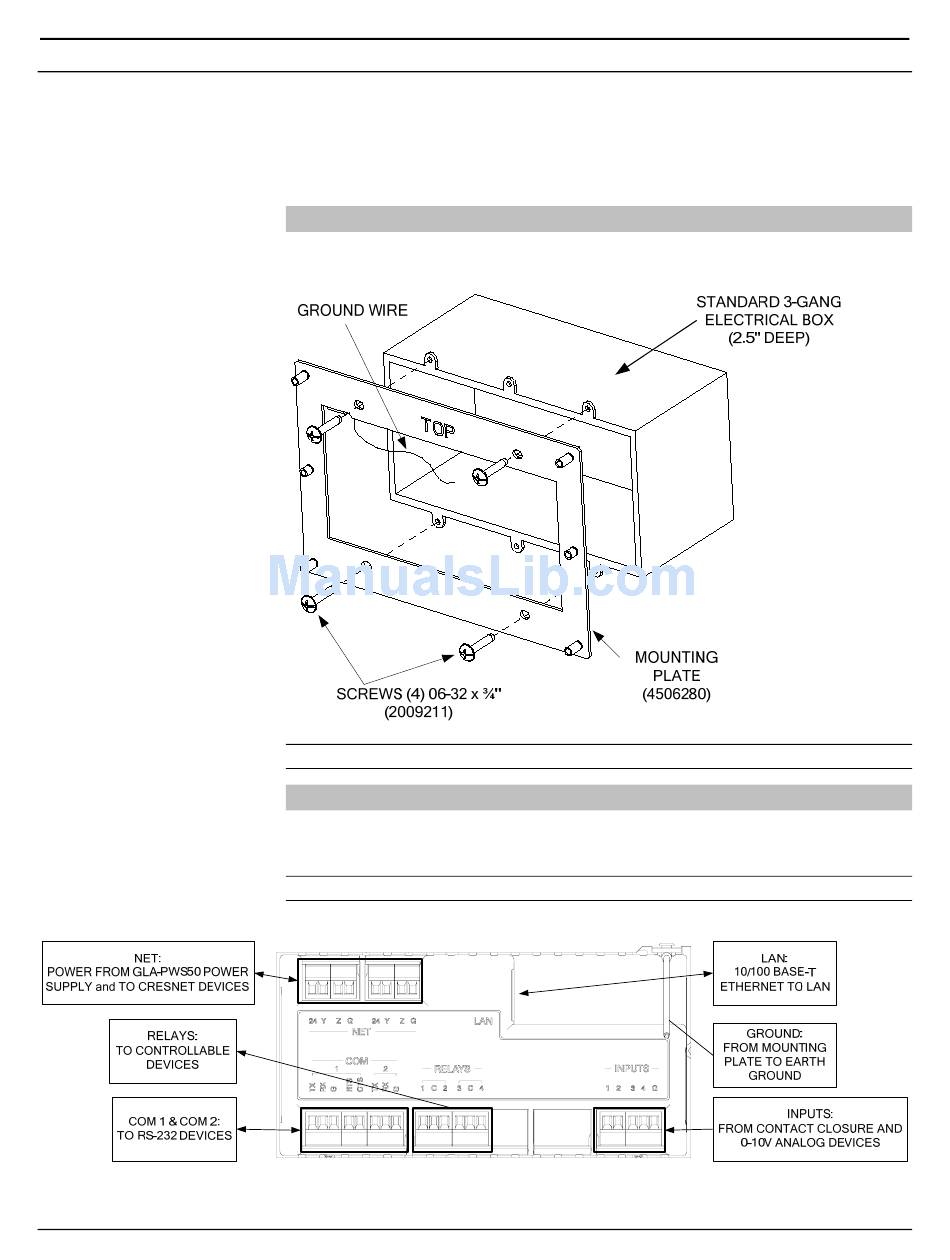

Use the four included 06-32 x ¾" screws to install the mounting plate on the electrical
box. Refer to the diagram below.
NOTE: The ground wire from the mounting plate must be attached to an earth ground.
Wiring
Make the necessary connections as called out in the illustration below. Details for each
connector can be found below and on the following pages.
NOTE: Complete all other connections before wiring the 4-position NET connector.
Crestron IPAC
Installation Guide – DOC. 6696A
