Use in explosion-prone zones

10 Use in explosion-prone zones
10.1

General information

Pumps bearing an ATEX label and accompanied by a declaration of conformity in
accordance with 2014/34/EU are designated for use in potentially explosive areas.
They belong to equipment group II, equipment category 2G, explosion group IIB,
safety by design.
With the -FS option (flame arrestor at the outlet of the bleed chamber), a poten-
tially explosive atmosphere is also permitted in the bleed chamber. It corre-
sponds to equipment group II, equipment category 2G, explosion group IIB,
flame-proof enclosure.
Potentially explosive atmospheres are not permitted in the drive unit and high
pressure unit.
Refer to the figure 10-2 "Diagram of ATEX zones" for the permissible zones.
The designation is indicated on the rating plate and on the general drawing.
The individual parts of the label are explained below.

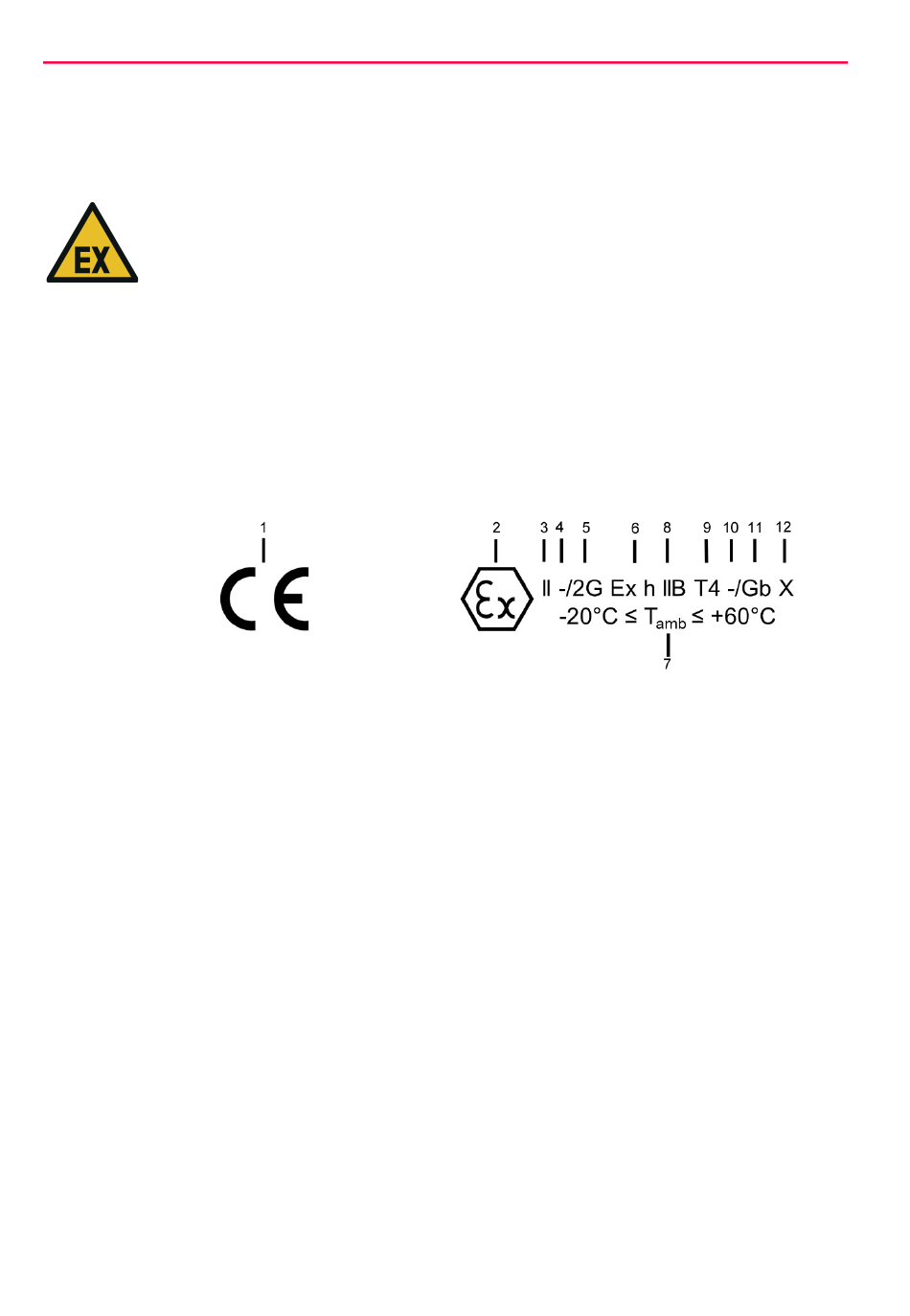

Fig. 10-1 Exemplary figure - ATEX label
1 CE symbol
2 Ex-symbol
3 Equipment group II: The pump may be used in potentially explosive atmo-
spheres, except in mining.
4 -: Ignitable mixtures are not permitted in the drive or in the HP unit. The per-
missible zones are indicated in Figure 10-2 "Diagram of ATEX zones".
5 Equipment category 2G: The device ensures a high level of protection and
may be used in Zone 1 and Zone 2. A Zone 1 or Zone 2 is also permitted in
the bleed chamber with port "Z". Ignitable mixtures are not permitted in the
drive or in the HP unit
6 Ex h marking: Designated for use as per DIN EN ISO 80079-36/37.
7 Designation of ambient temperature: Permissible range of ambient tem-
perature.
8 Explosion group: The device is designated for use in potentially explosive gas
atmospheres, with gases from Group IIB.
9 Temperature class: Under compliance with the indications in the operating
manual, the device can be used in the temperature class indicated.
10 -: Ignitable mixtures are not permitted in the drive or in the HP unit. The per-
missible zones are indicated in Figure 10-2 "Diagram of ATEX zones".
