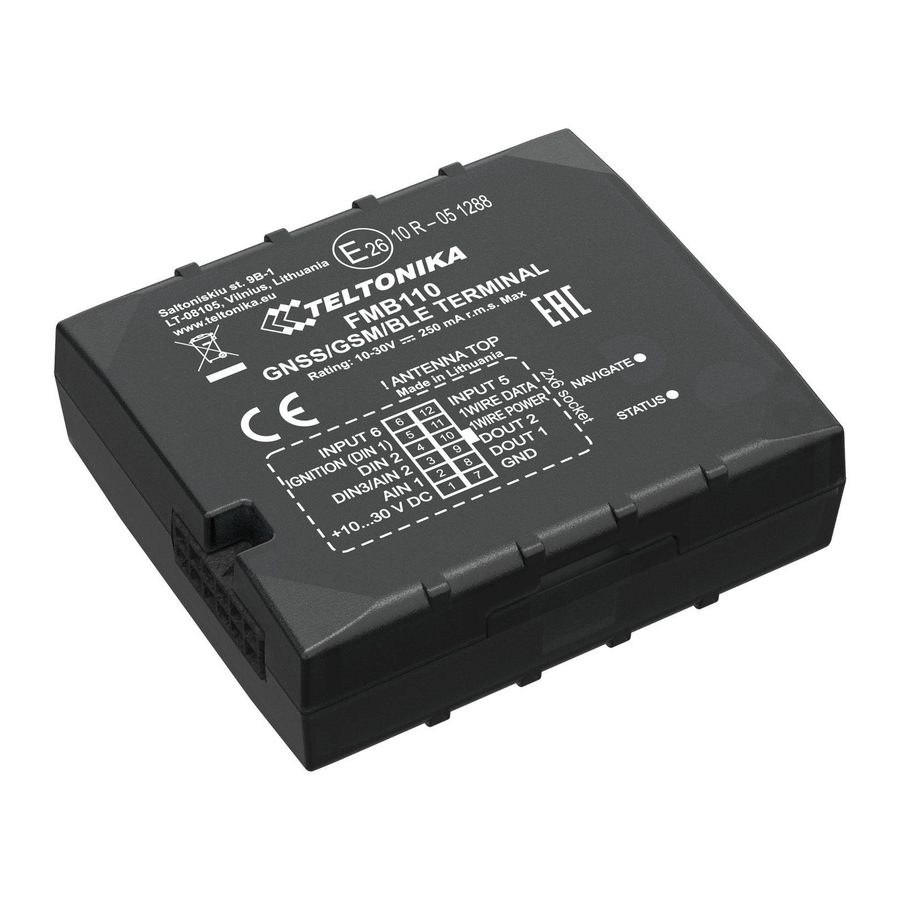

Teltonika FMB110 First Start-Up Quick Start Manual

Gnss/gsm/bluetooth tracker with internal gnss/gsm antennas
Hide thumbs Also See for FMB110:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB110_First_Start
FMB110 First Start
Main Page
>
Advanced Trackers
GNSS/GSM/Bluetooth tracker with internal GNSS/GSM antennas
Contents
1 How to insert Micro-SIM card
How to insert Micro-SIM card
1.
Gently remove FMB110 cover using plastic pry tool from both sides.
Note: To properly open a new case please watch this video.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in
pointing forward to slot.
After configuration, see
3.
4.
Device is ready to be mounted.
Device is ready to be installed.
Micro-SIM card insertion/removal must be performed when device is powered off -
external voltage disconnected. Otherwise Micro-SIM card might be damaged or device
will not detect it.
>
FMB110
> FMB110 First Start
Teltonika
Configurator. Make sure that Micro-SIM card cut-off corner is
"PC Connection
(Windows)", attach device cover back.
Security info
how to

Advertisement

loading

Related Manuals for Teltonika FMB110

Summary of Contents for Teltonika FMB110

  • Page 1: Table Of Contents

    4.1 Precautions How to insert Micro-SIM card Gently remove FMB110 cover using plastic pry tool from both sides. Note: To properly open a new case please watch this video. Insert Micro-SIM card as shown with PIN request disabled or read...

  • Page 2: 2X6 Socket Pinout

    Data for 1–Wire devices. INPUT 5 RX EXT (LVCAN - RX). PC Connection (Windows) Power-up FMB110 with DC voltage 10-30 V power supply using supplied power cable. LED’s should start blinking, see “FMB110 LED status”. Connect device to computer using Micro-USB cable or Bluetooth connection:...

  • Page 3: Configuration (Windows)

    Maintenance and etc. FMB110 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...

  • Page 4: Quick Sms Configuration

    Data Acquisition – where data acquiring parameters can be configured. More details about FMB110 configuration using Configurator can be found here. Quick SMS configuration Default configuration has optimal parameters present to ensure best performance of track quality and data usage.

  • Page 5: Mounting Recommendations

    After successful SMS configuration, FMB110 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters. Mounting recommendations Connecting wires Wires should be connected while the module is not plugged in.

  • Page 6: Installation Photos

    Installation photos FMB110 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker / engraving view to the open sky (metal free). FMB110 area with engraving is shown in figure below: FMB110 can be mounted under the plastic panel behind the front window, with the sticker / engraving direction to a window (sky).
  • Page 7 The device must be firmly fastened in a predefined location. The programming must be performed using a PC with autonomic power supply. The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. https://teltonika-gps.com/product/fmb110/...
