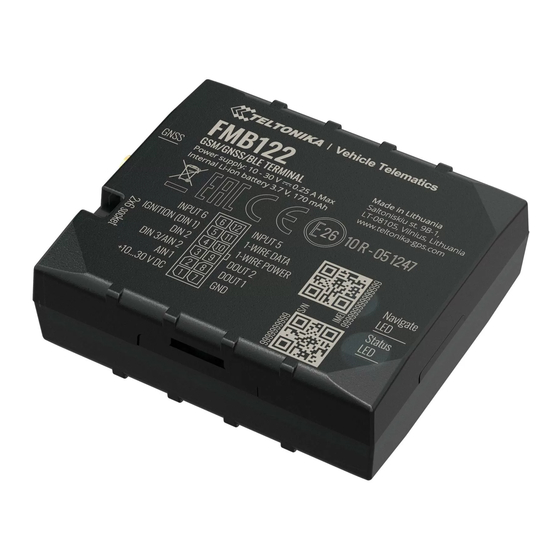

Gnss/gsm/bluetooth tracker with external gnss, internal gsm antennas and internal battery
Hide thumbs Also See for FMB122:
Table of Contents

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB122_First_Start
FMB122 First Start
Main Page
>
Advanced Trackers
GNSS/GSM/Bluetooth tracker with external GNSS, internal GSM antennas and internal
battery
Contents

1 How to insert SIM card and connect the battery

How to insert SIM card and connect the battery
1.
Gently remove FMB122 cover using plastic pry tool from both sides.
Note: To properly open a new case please watch this video.
Insert SIM card as shown with PIN request disabled or read
2.
later in
Teltonika
slot. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
Connect battery as shown to device. Position the battery in place where it does not obstruct
3.
other components.
4.
After configuration, see
Device is ready to be installed.
SIM card insertion/removal must be performed when device is powered off – external voltage
and internal battery disconnected. Otherwise SIM card might be damaged or device will not
detect it.
>
FMB122
> FMB122 First Start
Configurator. Make sure that SIM card cut-off corner is pointing forward to
"PC Connection
(Windows)", attach device cover back.
Security info
how to enter it
