  • Page 1 FMB130 Quick Manual Advanced tracker with v1.4 flexible inputs configuration...

  • Page 2: Table Of Contents

    How to install USB drivers (Windows) ..........7 Configuration (Windows) ..............7 Quick SMS configuration ..............9 Mounting recommendations ............. 10 LED indications ................11 Characteristics................11 Basic characteristics ............... 11 Electrical characteristics ..............13 Safety information ..............14 Certification and Approvals ............15 Wiki FMB130 |...

  • Page 3: Know Your Device

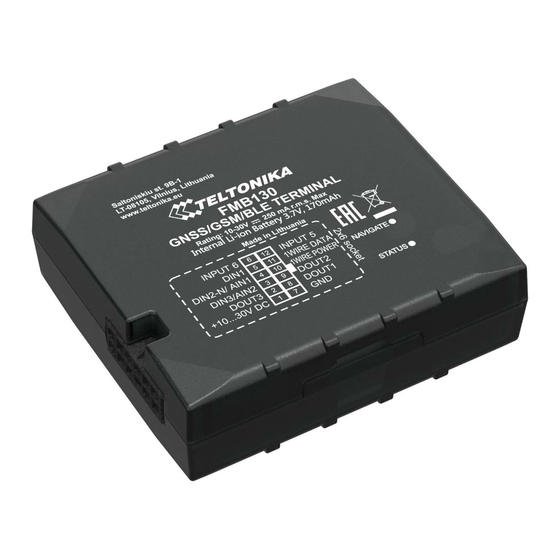

    Know your device Figure 1 FMB130 device view Wiki FMB130 |...

  • Page 4: Pinout

    Pinout Table 1 FMB130 2x6 socket pinout PIN NUMBER PIN NAME DESCRIPTION VCC (10-30) V DC (+) Power supply (+10-30 V DC). Digital output, channel 3. Open DOUT 3 collector output. Max. 0,5 A DC.. Analog input, channel 2. Input range: 0- DIN 3 / AIN 2 30 V DC / Digital input, channel 3.

  • Page 5: Wiring Scheme

    Wiring scheme Figure 3 FMB130 Wiring scheme Automotive relay Wiki FMB130 |...

  • Page 6: Set Up Your Device

    Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove FMB130 bottom cover using plastic pry tool from both sides. Then remove the top cover. 2. Insert Micro-SIM card as shown with PIN request disabled or...

  • Page 7: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMB130 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see Configuration (Windows) “LED indications”.
  • Page 8 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB130 configuration using Configurator can be found in our Wiki. Figure 10 Configurator Status window Wiki FMB130 |...

  • Page 9: Quick Sms Configuration

    120 seconds 2006 – Data sending protocol • After successful SMS configuration, FMB130 device will (0 – TCP, 1 – UDP) synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 10: Mounting Recommendations

    Depending on the car model, this may happen in 5 to 30 minutes period. ▬ When the module is connected, measure the voltage again to make sure it did not decrease. ▬ It is recommended to connect to the main power cable in the fuse box. Wiki FMB130 |...

  • Page 11: Led Indications

    Device is not working or Device is in boot mode Technology Quad-band 850 / 900 / 1800 / 1900 2G bands GPRS Multi-Slot Class 12 (up to 240 Data transfer kbps), GPRS Mobile Station Class B Data support SMS (text/data) Wiki FMB130 |...
  • Page 12 OBDII dongle, CAN-CONTROL, OBDII dongle PHYSICAL SPECIFICATION Digital Input 1, Accelerometer, External Dimensions 65 x 56 x 20,6 mm (L x W x H) Ignition detection Power Voltage, Engine RPM (CAN Weight 55 g Adapters, OBDII dongle) Wiki FMB130 |...

  • Page 13: Electrical Characteristics

    Short circuit current (U = 0) Conditions) voltage NEGATIVE INPUT Input Voltage threshold (DIN1) Input resistance 38.45 kΩ Input Voltage threshold (DIN2) Input voltage (Recommended Operating Supply Conditions) voltage Input Voltage threshold (DIN3) Input voltage threshold Sink current Wiki FMB130 |...

  • Page 14: Safety Information

    CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to The device FMB130 is not designed as a navigational device for boats. the instructions. Do not disassemble the device. If the device is...

  • Page 15: Certification And Approvals

    For more information, see the ANATEL website www.anatel.gov.br Hereby, Teltonika declare under our sole This equipment is not entitled to protection responsibility that the above described against harmful interference and must not product is in conformity with the relevant...

  • Page 16: Warranty

    More information can be found at teltonika.lt/warranty-repair • Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. Wiki FMB130 |...
