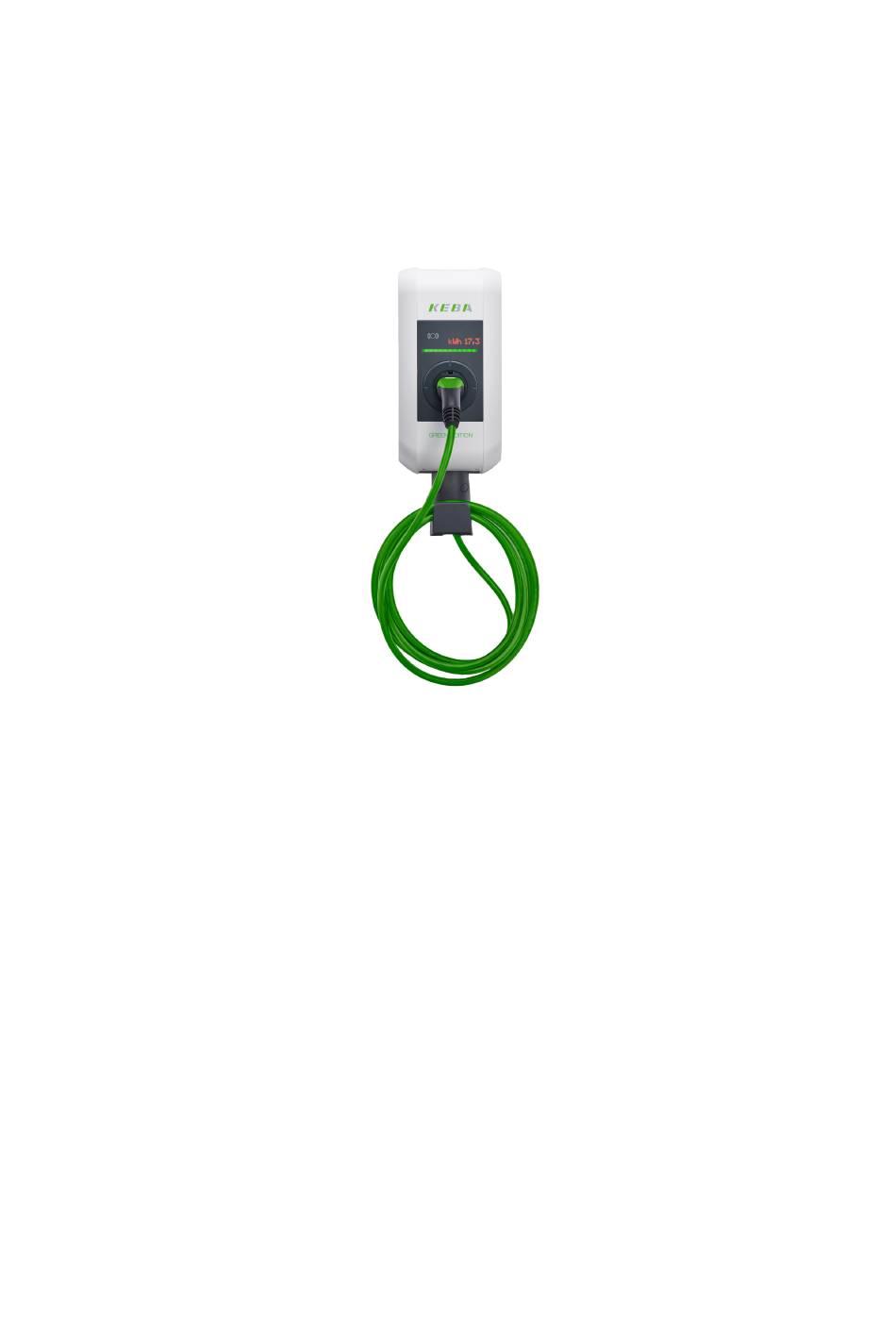

- Page 1 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1...
-
Page 2: Table Of Contents
4. Install FEMS App KEBA KeContact P30 x-series 4.1. Direct Installation ................ -
Page 3: Introduction
Prüfen Sie, nachdem Sie die Lieferung erhalten haben, ob alle Bestandteile mitgeliefert wurden. Prüfen Sie den Lieferumfang auf Beschädigungen. Sollte etwas fehlen oder beschädigt sein, wenden Sie sich bitte sofort an den Lieferanten. Folgende Komponenten sind in der Lieferung enthalten: • KEBA KeContact P30 x-series Ladestation 2 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series... -
Page 4: Prerequisites
Für den Einsatz der Ladestation ist erforderlich: • FEMS App KEBA KeContact P30 x-series Die »FEMS App KEBA KeContact P30 x-series« ist nicht im Lieferumfang enthalten. Diese muss — falls noch nicht vorhanden — zusätzlich erworben werden. Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 3 / 22 Version:2023.3.1... -
Page 5: Commissioning
3. Commissioning 3. Commissioning To install the KEBA charging station, please follow the instructions in the "KeContact KC-P30 Charging Station Installation Manual". Installation manual — KEBA KeContact KC-P30 The "Configuration Manual" for the x-series should also be read and internalized: Configuration manual — KEBA KeContact P30 x-series This quick guide refers to the original user manuals. - Page 6 Open an internet browser and enter the IP address identified. http://123.123.123.123 Example: After entering your login data (included in the scope of delivery), a website opens that looks like this: Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 5 / 22 Version:2023.3.1...
-
Page 7: Configuration Of The Dip Switches
3.2. Configuration of the DIP switches Figure 4. KEBA software The Keba x-series web interface offers numerous settings. Among other things, RFID card authorizations can be managed and an automatic charging report, which is used to bill the charging sessions, can be created. Further information is found in the configuration manual for the KEBA x-series: Configuration manual — KEBA x-series... -
Page 8: Setting The Charging Station Control Functions
Of these three switches we only need D1.3, which is used to activate the SmartHome interface via UDP, allowing the FEMS to set the charging specifications for the charging station via the UDP protocol. D1.1 and D1.2 remain in the "OFF" position. Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 7 / 22 Version:2023.3.1... -
Page 9: Setting The Permissible Amperage
DIP switches D1.6 - D1.8 are used to set the permissible current, which determines the maximum charging power of the charging station, provided the vehicle to be charged supports this charging power. 8 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1... -
Page 10: Further Dip Switches
However, all other DIP switches have no function in conjunction with the FEMS or can influence the connection, e. g. D2.8. They therefore remain in the "OFF" switch position after commissioning. Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 9 / 22 Version:2023.3.1... -
Page 11: Charging Network
3.2.4. Charging network The Keba KeContact P30 c-series can be used as a slave in a charging network with a Keba KeContact P30 x- series. In this case, the x-series takes over the management of the RFID authorization. To enable communication between the charging stations, the DIP switch D2.5 must be activated on all charging stations (x-series and c-... -
Page 12: 14A Of The German Energy Industry Act (Enwg)
FENECON energy management, but via solutions provided by the wallbox manufacturers. Prerequisites All §-14a-compliant KEBA KeContact Series that can be integrated into the FEMS Online Monitoring are listed below. Wallbox model type §-14a conformity (e. g. potential-free contact X1, Modbus TCP, OCPP) KEBA KeContact P30 X-Series ... - Page 13 Figure 11. Circuit diagram for the potential-free contact X1 To enable control by external components (here: control box), the DIP switch D1.1 must be set to "ON". The wallbox then needs to be restarted. 12 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1...
- Page 14 Figure 12. DIP switches for contact X1 Setting up the EnWG-compliant amperage From software version 1.18 or firmware version 3.10.56, the available charging current for the KeContact P30 series can be set to 0 A or 6 A in accordance with EnWG using the DIP switches.
- Page 15 3.3. § 14a of the German Energy Industry Act (EnWG) Figure 14. Requirements for initiating a charging process Die Konfiguration ist hiermit abgeschlossen. 14 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1...
-
Page 16: Install Fems App Keba Kecontact P30 X-Series
4. Install FEMS App KEBA KeContact P30 x-series 4. Install FEMS App KEBA KeContact P30 x-series In the FEMS App Center you will find all installable FEMS Apps — such as the FEMS App KEBA KeContact P30 x- series. In the user manual... - Page 17 4.1. Direct Installation Figure 17. App installation — Variant 2: Step 3 Click on the "Install app" button. 16 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1...
- Page 18 4.1. Direct Installation Figure 18. App installation — Variant 2: Step 4 An input mask for redeeming a license key appears. Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 17 / 22 Version:2023.3.1...
-
Page 19: Redeem Already Registered License Key
If you want to redeem an already registered license key, select it (1). Then click on the button of the same name to redeem the selected license key (2). Figure 20. App installation — Variant 2: Step 5a 18 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1... -
Page 20: Redeeming A New License Key
If the license key is valid, it can be redeemed by clicking on the button of the same name. If the license key is recognized as invalid, please check your entry and try again. Figure 22. Redeeming a new license key: Step 6 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 19 / 22 Version:2023.3.1... -
Page 21: Edit Fems App
4.2. Edit FEMS app You will then be taken to the installation wizard for FEMS App KEBA KeContact P30 x-series. Figure 23. App installation — Variant 2: Step 7 Some of the input fields are pre-filled. Nevertheless, enter your data if it differs from the default values (e. g. IP address). -
Page 22: Contact
5. Contact 5. Contact For support, please contact: FENECON GmbH Brunnwiesenstr. 4 94469 Deggendorf Telephone service: 0991-648800-33 E-mail service: service@fenecon.de Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series 21 / 22 Version:2023.3.1... -
Page 23: Verzeichnisse
Figure 21. App installation — Variant 2: Step 5b Figure 22. Redeeming a new license key: Step 6 Figure 23. App installation — Variant 2: Step 7 Figure 24. App installation — Variant 2: Step 8 22 / 22 Installations- und Konfigurationsanleitung — KEBA KeContact P30 x-series Version:2023.3.1...
