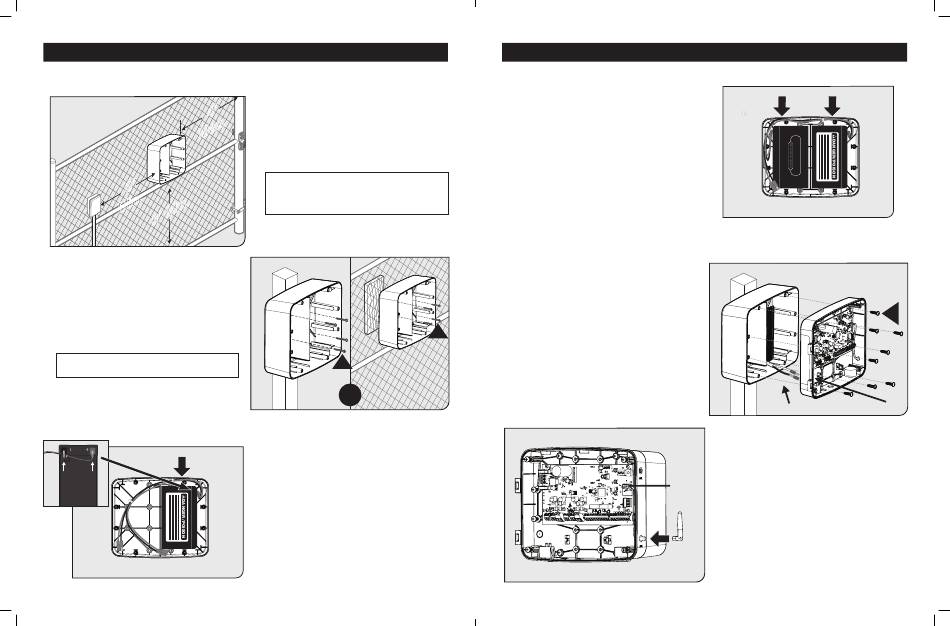

CONTROL BOX INSTALLATION
Step 1
4 '
x .
M a
3 '
n .
n .
M i
M i
3 '
Step 2
● Once you've identified a suitable mounting location,
mount the battery box using the supplied wood screws.
● If the mounting surface is not wood, additional hardware
may be required (not supplied).
Note: Orient the battery box with the arrow on the inside
of the box pointed up.
Step 3
14
MM571W / MM572W Installation Instructions
● Identify a suitable mounting location for your control
box at least 3 ft. from the ground and no more than 4 ft.
from the primary operator.
Note: If you intend to install and use the MMS100
Wireless Connectivity System (sold separately) with your
gate operator, consider mounting your control box as
high as possible to improve radio performance.
R
R
OR
● Connect the battery harness to the battery as shown -
red to positive, black to negative terminals.
● Place the battery into the right side of the battery box
with the terminals facing to the right and towards the top
of the battery box.
● Route the battery harness as shown.
CONTROL BOX INSTALLATION
Step 4
● If installing an optional second battery, connect the battery
harness as shown in Step 3.
● Place the second battery and route harness as shown.
Step 5
● With the 7/32" drill bit, drill through the eight control
board panel access holes labeled "B".
● Locate and knock out the battery cable access hole in
the panel.
● Feed the battery cables through the control board
casing access hole.
● Attach the control board casing using the eight screws
provided.
NOTE: Figure does not display the control panel cover.
The cover will be attached on hinges.
Step 6
Attenna
Cable
W
Feed battery cables through access hole
● Install the Antenna by screwing it in place on the
SMA connector.
● Orient the antenna to the sky, and securely tighten.
15
MM571W / MM572W Installation Instructions
