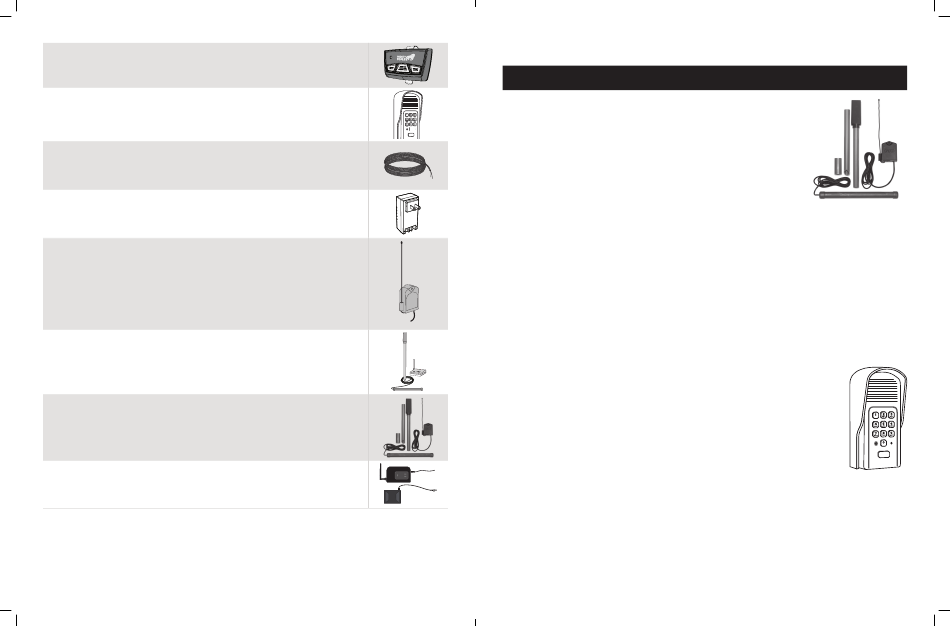

MMT103
The MMT103 Code Safe digital transmitter is a wireless radio control designed for use with Mighty Mule garage
door openers and can also be programmed to your Mighty Mule gate openers. One remote for two or three devices.
Wireless Entry Intercom / Keypad (FM136)
Allows owner to screen guest at the gate before allowing access to the property. Keypad also allows owner to give
up to 25 programmable entry codes to family, friends or approved delivery personnel. Codes can be permanent or
temporary. Up to 500 feet reception.
Additional base stations available (F3101MBC).
Low Voltage Wire (RB509)
The 16 gauge, stranded, dual conductor Low Voltage Wire is for connecting the AC powered transformer, or the
Solar Panel to the control board. Also used for the connection of accessories, such as locks, keypads, push buttons
and other wired control devices. This specially designed wire is UV treated, PVC coated and ready for direct burial.
Available in 1000' rolls or special lengths.
Replacement Transformer (RB571)
19V, 2A, DC transformer for maintaining the battery with the Mighty Mule gate operator.
Garage Door Receiver (RB709U-NB)
The Garage Door Receiver allows you to use the same Mighty Mule entry transmitter to operate your gate operator
and your garage door operator. Compatible with most garage door operators.
Driveway Alarm (FM231)
This device alerts you of vehicles entering your driveway (with or without an automated gate). The indoor base
station signals you with a door chime when a vehicle passes the driveway sensor.
Wireless Driveway Vehicle Sensor (FM130)
Automatically activates gate operator "Hands-Free" when a vehicle exits the property. 100 ft. range between
transmitter and receiver. Easy installation.
Wireless Connectivity System (MMS100)
Adds smart functionality to your gate operator utilizing the Mighty Mule App.
If you have a question about any special order item, call 1-800-543-4283
The contents of all material available on this installation manual are copyrighted by Nortek Security and Control, LLC ("Nortek Security and Control"), unless otherwise indicated. All
rights are reserved by Nortek Security and Control, and content may not be reproduced, downloaded, disseminated, published, or transferred in any form or by any means, except with
the prior, written permission of Nortek Security and Control. Any reprinting of Nortek Security and Control publications is by permission only. Copyright infringement is a violation of
federal law.
Mighty Mule¨, E-Z Gate¨, Nortek Security and Control¨, "Dual Sense Technology" are registered trademarks of Nortek Security and Control, LLC, America's DIY Automatic Gate Openers
is a trademark of Nortek Security and Control, LLC and are the exclusive property of Nortek Security and Control, LLC ("Nortek Security and Control").
All rights are reserved by Nortek Security and Control, and these marks may not be used, in any for without the prior, written permission of Nortek Security and Control.
36
MM571W / MM572W Installation Instructions
FM130 / FM130-SW Installation
For the FM130 / FM130-SW to function, the "Transmitter Module" must be programmed to
your gate operator's control board.
Before you begin:
● Ensure the gate operator is in the OPEN position
● Check to ensure the PUSH-PULL DIP setting is correct (see pages xiv & 21). If you
have to change this DIP setting, turn the unit OFF then ON to save setting.
● Ensure the AUTOCLOSE is set to OFF.
Step 1: Choose a random dip switch setting on the Transmitter Module.
Step 2: On the gate operator control board, press and hold the (return/enter, S3) button until
LED2 illuminates and the buzzer sounds. Release the button.
Step 3: Insert both batteries into the transmitter module. The transmitter module will begin transmitting.
Step 4: Once Learned, LED2 will flash and the buzzer will sound indicating that the Transmitter Module has been learned.
Remove the AA batteries from the Transmitter Module, and proceed with the rest of the installation following the
accessory instructions.
Notes:
1. If you need to erase this device, repeat steps 2-4 above.
2. Erasing all transmitters on the gate operator control board will erase this device.
3. AUTOCLOSE may be turned back on after setup is complete.
FM136 Installation
As an alternative to the instructions provided with the FM136, the keypad can be learned to your gate operator
as an additional transmitter by following these instructions:
Step 1: Choose a random DIP setting on the keypad unit. Refer to the FM136 manual for the location of the
DIP switches.
Step 2: On the gate operator control board, press and hold the (return/enter, S3) button until LED2
illuminates and the buzzer sounds. Release the button.
Step 3: Enter your MASTER CODE on the FM136 keypad (1-2-3-4 is the default unless changed). Once
learned, LED2 will flash and the buzzer will sound on the gate operator control board. Proceed with
installation of the FM136 per the accessory instructions.
PAIR
RESET
Notes:
1. If you need to erase this device, repeat steps 2-3 above.
2. Erasing all transmitters on the gate operator control board will erase this device.
Appendix A

ACCESSORY INSTALLATION INSTRUCTIONS

MM571W / MM572W Installation Instructions
FM130 / FM130-SW
37
