Installing The Closed Position Stop Plate / Push-To-Open - Nortek Security & Control MIGHTY MULE MM571W Installation Manual

PUSH-TO-OPEN OPERATOR MOUNTING
Your Property

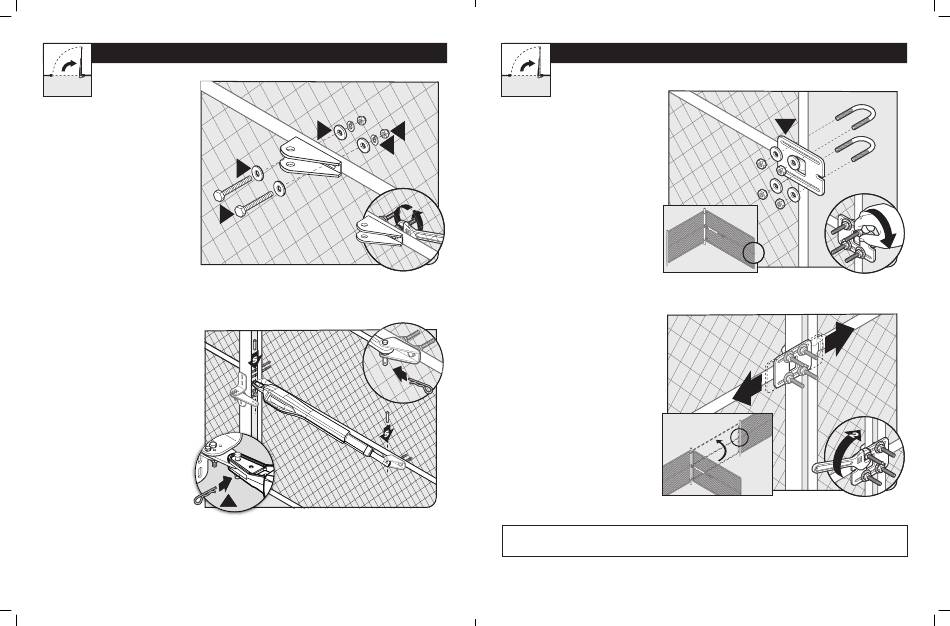

Step 10
● Secure the gate bracket with the
supplied hardware as shown.
Step 11
● Once the gate post and gate
brackets are installed, reattached
the operator arm.
● Ensure the operator arm is
level, adjusting the post bracket
location if necessary.
● Once level, ensure all hardware
is tight.
● Remove excess bolt length with a
hacksaw.
12
MM571W / MM572W Installation Instructions
L T
V
L
P
N
N

INSTALLING THE CLOSED POSITION STOP PLATE / PUSH-TO-OPEN

Your Property
Step 1
● Remove the operator from the gate post
and gate brackets.
● Swing the gate to the open position.
● With the gate fully open, install the
closed position stop plate on the gate
opposite the operator (hardware not
included).
● Do not fully tighten hardware until after
the next step.
Step 2
● Swing the gate to the closed position,
and adjust the closed position stop plate
against the fence post.
● Tighten the mounting hardware.
● With the gate in the closed position,
reinstall the operator arm.
Note: For MM572W installations, the closed position stop plate should be installed on the leading edge of the PRIMARY gate leaf,
and adjusted to close against the leading edge of the SECONDARY gate leaf.
H
1
1
13
MM571W / MM572W Installation Instructions
