Step 4
TERM6
BAT+
● From the other end of the low voltage wire,
BAT–
1 2 3 4 5
SW1
strip 1/2" from both the RED and BLACK
RESET
SW2
AUTO
CLOSE
wire.
TERM6
BAT+

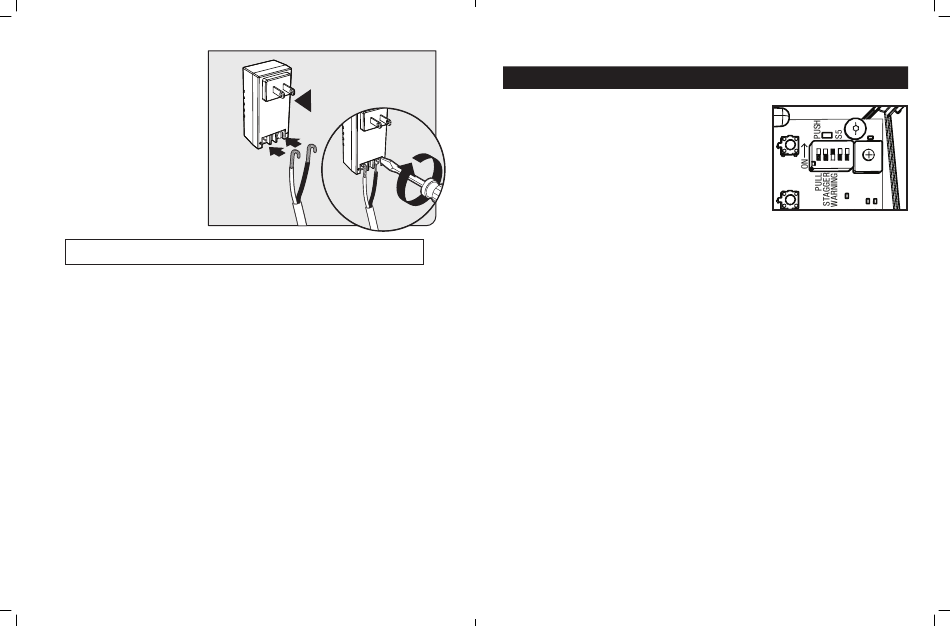

● On the transformer, connect RED wire to
BAT–
SW1
SW2
the screw terminal marked + and BLACK
wire to the screw terminal marked -.
LOCK
AUX
● Plug the transformer into the selected
electrical outlet.
Note: Use of a surge protector is strongly
recommended.
attery Power Access
MM572 Installation -
For dual arm installation, drill through one of the Alternate Access slots to install the
Transformer or Solar power wires.
20
MM571W / MM572W Installation Instructions
C
BAT+
BAT–
SW1
SW2

Electrical Installation and Setup

DIP SWITCHES SETTINGS

Push/Pull-to-Open
● On � = Push
● Off
= Pull
For changes to this switch to take effect, the unit must be reset or power cycled.
Stagger
● For dual gate installations (MM572W),
● OFF - Gates will open simultaneous, but close staggered.
● ON - Gates will stagger while opening and closing for compatibility with gate
locks.
Warning
● The WARNING DIP switch toggles a movement alarm ON or OFF.
Powering the System
● Locate the ON/OFF switch on the bottom left of the control box.
● Toggle the switch to the ON position.
● The system will take approximately 20 seconds to power up indicated by an audible tone and LED D17 will flash.
LOCK
S2
1 2 3 4 5
RESET
AUTO
CLOSE
AUX
MM571W / MM572W Installation Instructions
