PULL-TO-OPEN OPERATOR MOUNTING
Your Property

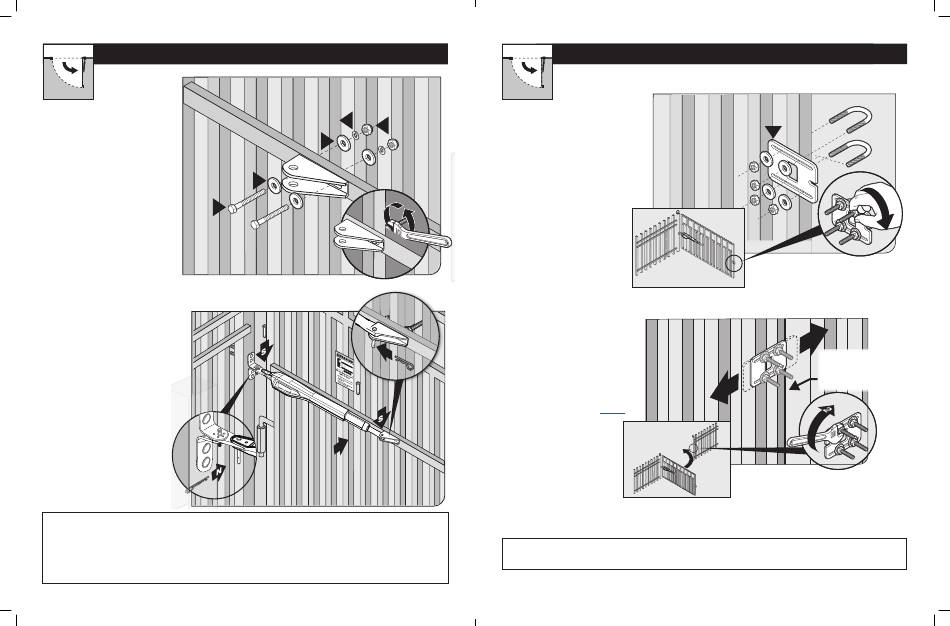

Step 10
● Secure the gate bracket with the
supplied hardware as shown.
P
Step 11
● Once the gate post and gate
brackets are installed, reattached
the operator arm.
V
● Ensure the operator arm is level,
T
adjusting the post bracket location
L
if necessary.
● Once level, ensure all hardware is
tight.
● Remove excess bolt length with a
hacksaw.
Installing the Secondary Operator (MM572W only):
Install the secondary operator on the remaining leaf by repeating the same process illustrated in steps 1-11 above.
Note: You will need to run the secondary operator power cable and any hard wired accessory wires under the driveway to the
control box (use of conduit is recommended). Locating the primary operator on the gate leaf closest to the power source or desired
solar panel location is recommended. See front page of this manual for a complete installation example.
After you have mounted the second operator, proceed to Installation of the Closed Position Stop Plate on the following pages.
6
MM571W / MM572W Installation Instructions
V
T
L
L
N

INSTALLING THE CLOSED POSITION STOP PLATE / PULL-TO-OPEN

Your Property
Step 1
N
● Remove the operator from the
gate post and gate brackets.
● With the gate fully open, install
the closed position stop plate
(hardware not included).
● Do not fully tighten hardware
until after the next step.
Step 2
● Swing the gate to the closed
position, and adjust the closed
position stop plate against the
fence post.
H ● Tighten the mounting hardware.
● Return the gate to the open
position and reinstall the operator
arm.
● To complete the pull-to-open
installation, proceed to page 14.
Note: For MM572W installations, the closed position stop plate should be installed on the leading edge of the PRIMARY gate leaf,
and adjusted to close against the leading edge of the SECONDARY gate leaf.
H
1
Fence Post: MM571W
Leading Edge of
Second Gate: MM572W
1
MM571W / MM572W Installation Instructions
