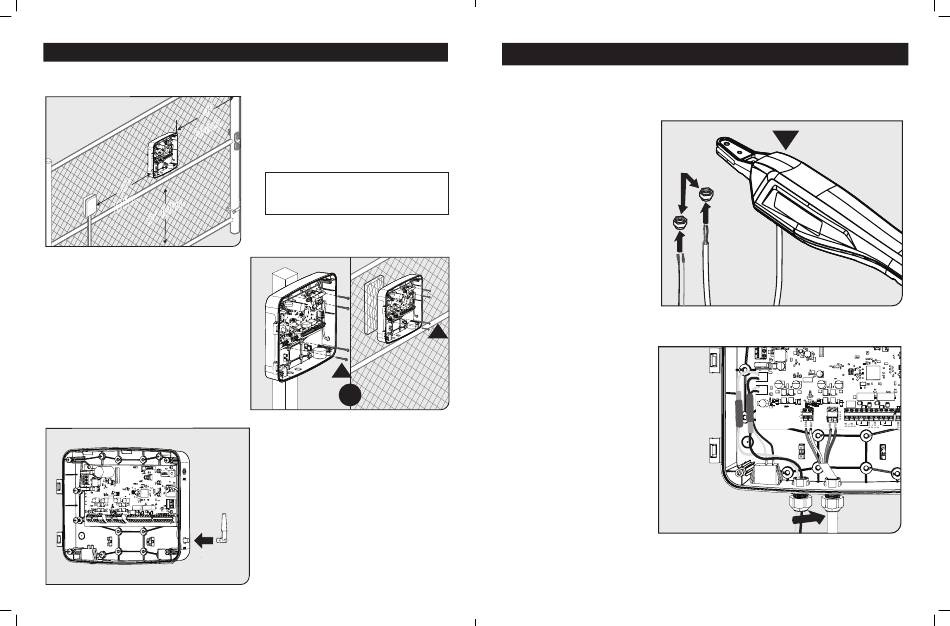

CONTROL BOX INSTALLATION

Step 1
4 '
x .
M a
3 '
n .
n .
M i
M i
3 '
Step 2
● Once you've identified a suitable mounting location,
loosen the four cover screws and open the control
box cover.
● Locate mounting locations marked 'P' inside the
control box, and use them to mount the control box
with the supplied wood screws.
Step 3
14
TS571W / TS571W Installation Instructions
● Identify a suitable mounting location for your control
box at least 3 ft. from the ground and no more than 4 ft.
from the primary operator.
Note: If you intend to install and use the MMS100
Wireless Connectivity System (sold separately) with your
gate operator, consider mounting your control box as
high as possible to improve radio performance.
R
R
OR
● Install the Antenna by screwing it in place on the
SMA connector.
● Orient the antenna to the sky, and securely tighten.

CONNECTING THE OPERATOR AND BATTERY

Step 1
● Remove the sealing nut from each of
the cable glands on the bottom of the
control box.
● Slide one sealing nut onto the operator
SEALING NUTS
cable and one onto the battery harness.
Step 2
● Insert the operator cable and battery
harness through the cables glands
into the control box.
● Once inserted, secure the cables in
place by tightening the sealing nuts.
B
RESET
BAT+
BAT–
SW1
SW2
LOCK AUX
SECURE SEALING NUT
