ICMflex software
5.1
First steps
The ICMflex software comes with default factory settings after start-up. All settings will be saved when closing
the application. Settings affecting the acquisition circuit are sent to the ICMflex acquisition box when being
changed. The instrument acts as slave, the software acts as master.
Remark: If the application window appears very small when started on a PC with Windows 10, please refer to
section 10.2 'Troubleshooting' on page 85.
If not yet connected to an instrument the software displays all data of the last measurement. These data are
saved with an .flx file into a specified storage directory, e.g.,
c:\pdix\software\ICMflex\ICMflex.154\icmflex.flx
All optional program preferences like colours, interface settings, etc. are stored in a file called:
c:\pdix\software\ICMflex\ICMflex.154\icmflex.ini
The main program appears as a shortcut link on the desktop, in the 'Start->Programs' folder, and can be
started directly from the installation directory. A screenshot of the main program with a connected ICMflex is
shown in Figure 20.
c:\pdix\software\ICMflex\ICMflex.154\icmflex.exe

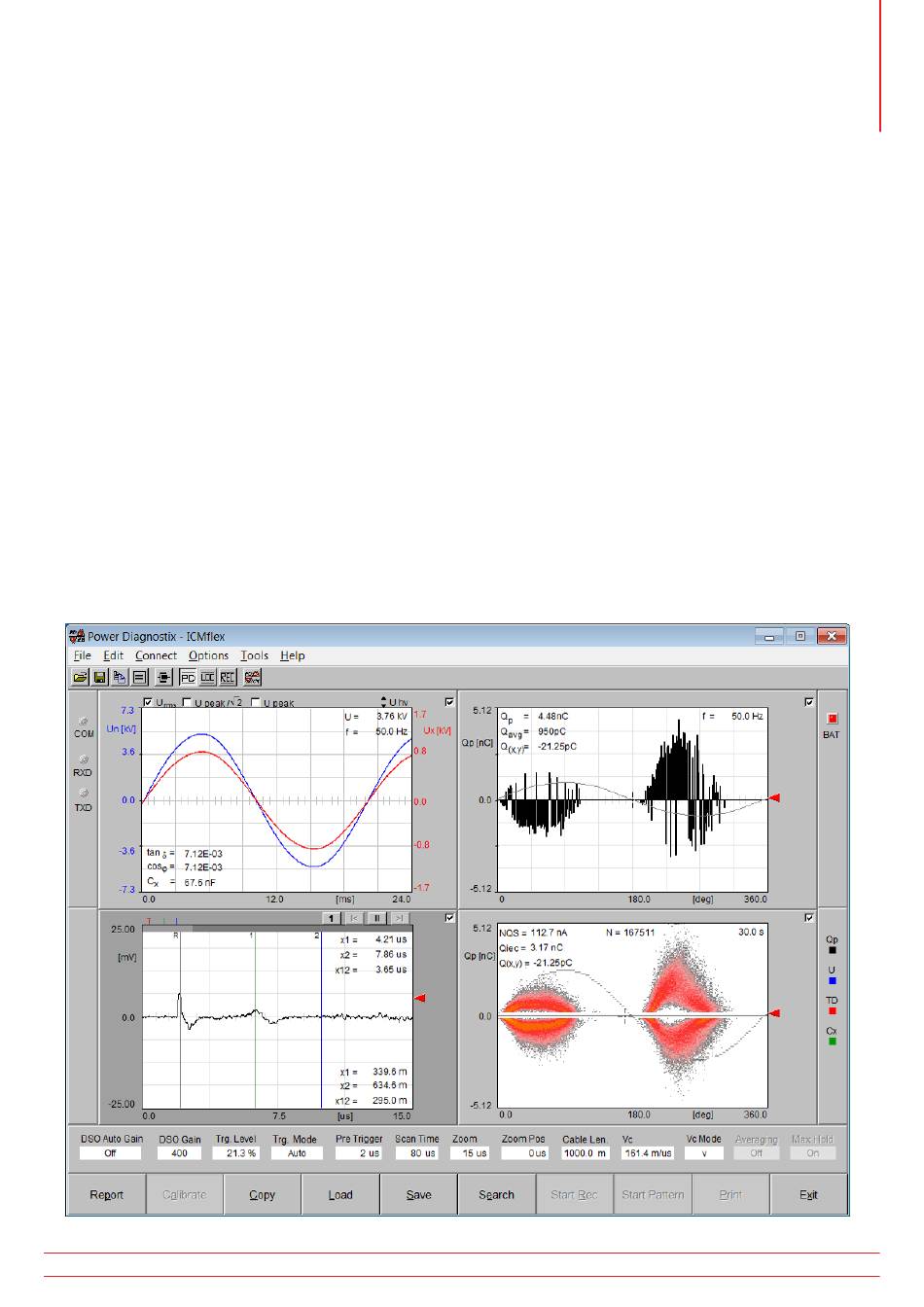

Figure 20: Main screen of the ICMflex software
