ICMflex
Partial discharge and loss factor measurement system
The most convenient way to communicate with the instrument is via
Bluetooth interface. Here, no further cabling is needed. In case, a
Bluetooth connection cannot be established, it is possible to use the
fibre optic serial link instead. The SUB-D female connector of the ca-
ble has to be connected to the male connector on the upper side of
the ICMflex (as shown in Figure 8). The USB connector of the cable
can be connected to any free USB port at the computer. As the fibre
optic cable provides a galvanic separation from the high voltage po-
tential, there is no risk for the operator.
Caution and Warning: Never use a standard SUB-D cable without

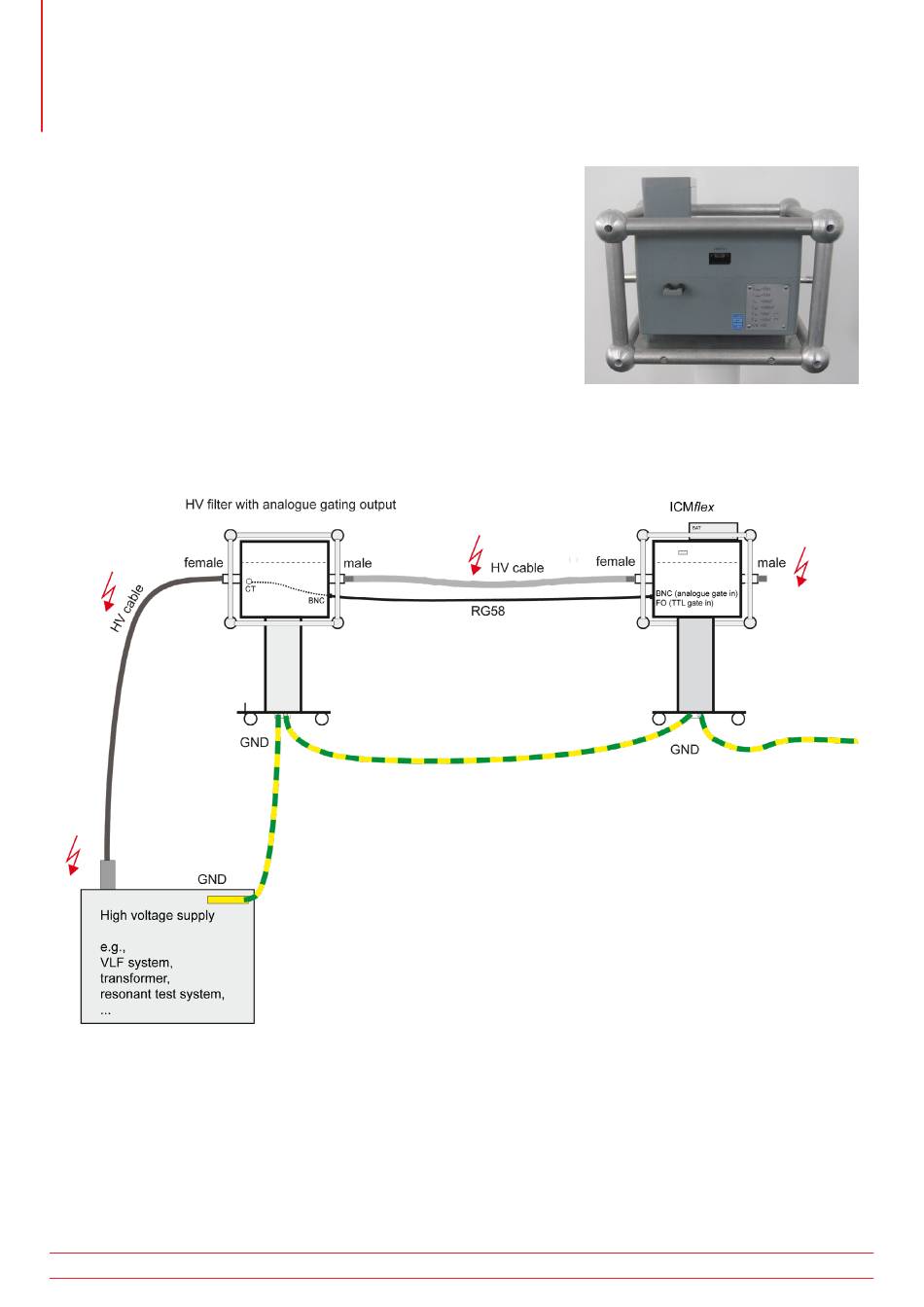

Figure 8: SUB-D input connector
galvanic separation. This can result in damage to components and
serious injury or death.
Figure 9: General connection diagram for ICMflex
16
User guide for ICMflex
