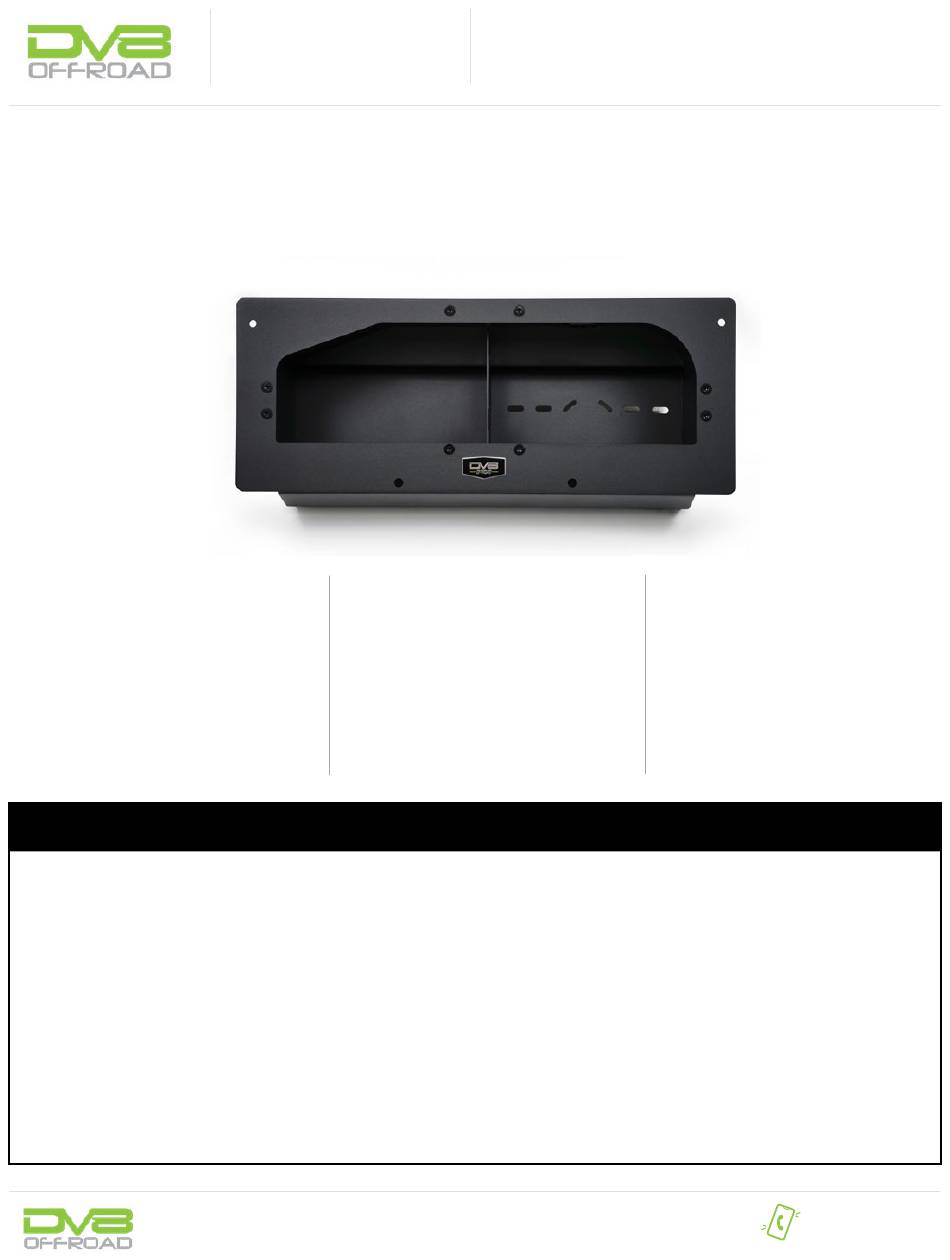

HIDDEN COMPRESSOR MOUNT
21+ FORD BRONCO
CMBR-01
TOOLS
REQUIRED
- 10mm, 15mm (deep) Socket
- 5mm Allen Bit
- Box cutter/ Knife
- Trim Clip Tool
- WD-40 (Optional)
- Flathead Screwdriver/Small Pry Bar
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Intermediate
- 1 (you) to 2 persons
Intermediate skill level required, you
can install it by yourself however,
additional help is recommended.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DVB CMBR-01
Summary of Contents for DVB CMBR-01
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM HIDDEN COMPRESSOR MOUNT 21+ FORD BRONCO CMBR-01 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 10mm, 15mm (deep) Socket - Intermediate - 2 Hours - 5mm Allen Bit - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (8) M8x20 Allen (2) Drain Caps (2) Wiring Boots (1) Waterproof Membrane...
- Page 3 INSTALLATION MANUAL STEP 2 | Peel back the paper from the heat shield and install it on the mount. The opening in the shield material will go over the mounting holes on the compressor side of the mount. STEP 3 | Install drain caps to both sides of the compressor mount.
- Page 4 INSTALLATION MANUAL STEP 4 | Use a trim clip tool to remove the plastic covers from the tie- down hooks. The number of tie-downs varies between 4-door models and 2-door models. STEP 5 | Use a 10mm socket to remove the hardware securing the factory tie-downs to the vehicle.
- Page 5 INSTALLATION MANUAL STEP 6 | Lift and fold the carpet forward to access the hardware securing the factory storage box to the vehicle. STEP 7 | Use a 10mm socket to remove the hardware securing the factory storage box to the vehicle. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 8 | Use a 15mm deep socket to loosen the clamp securing the muffler to the exhaust tube. NEED HELP? 855-680-9595...
- Page 7 INSTALLATION MANUAL STEP 9 | Remove the muffler from the exhaust hangers. One is located next to the hitch, and the other is located between the muffler and driverside rear tire. These may require some force to remove. Use WD-40 and a pry tool if necessary. NEED HELP? 855-680-9595...
- Page 8 INSTALLATION MANUAL STEP 10 | Remove the muffler by pulling it from the exhaust tube towards the rear of the vehicle. STEP 11 | Use a 10mm socket and a trim clip tool to remove the factory hardware and plastic clip retainers securing the factory heat shield in place.
- Page 9 INSTALLATION MANUAL STEP 12 | Use a 10mm socket to install the mounting plate using the factory hardware and mounting locations. STEP 13 | Place the DV8 storage box under the vehicle and lift it to the mounting plate by reaching down through the empty space in the cab.
- Page 10 INSTALLATION MANUAL STEP 14 | Secure the provided M8 hardware using a 5mm allen bit. STEP 15 | If you are mounting a compressor, do so at this time using the hardware provided with the compressor. Our compressor mount is designed for single or twin tube ARB air compressors.
- Page 11 INSTALLATION MANUAL STEP 16 | We provide multiple grommets for different wiring applications. The pre-installed flat grommet is for the ARB style harness, and can be used by cutting a slit open in one direction. Remove the grommet to cut it, then push the harness through and re-install.
- Page 12 INSTALLATION MANUAL STEP 17 | Re-install the muffler onto the exhaust tube by pressing it into place. STEP 18 | Finish securing the muffler by re-installing it onto the hangers. NEED HELP? 855-680-9595...
- Page 13 INSTALLATION MANUAL STEP 19 | Secure the clamp on the exhaust using a 15mm deep socket. STEP 20 | Install the factory tie- downs using a 10mm socket and the factory hardware. NEED HELP? 855-680-9595...
- Page 14 INSTALLATION MANUAL STEP 21 | Install the factory tie-down covers by pressing them into place. Then, flip the carpet closed. STEP 22 | Congrats! You are finished with the install of the 21+ Ford Bronco Hidden Air Compressor Mount NEED HELP? 855-680-9595...
