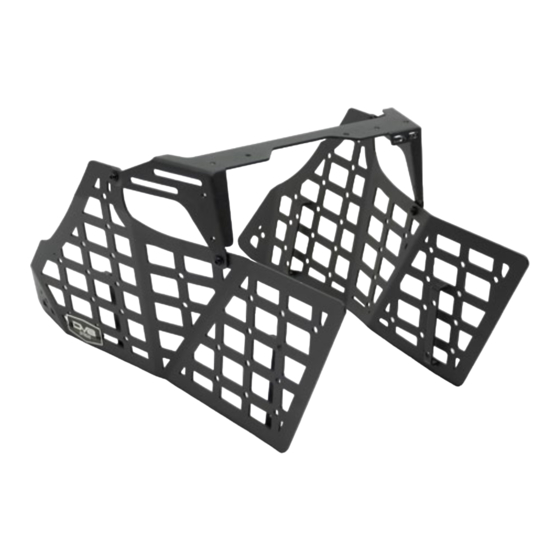

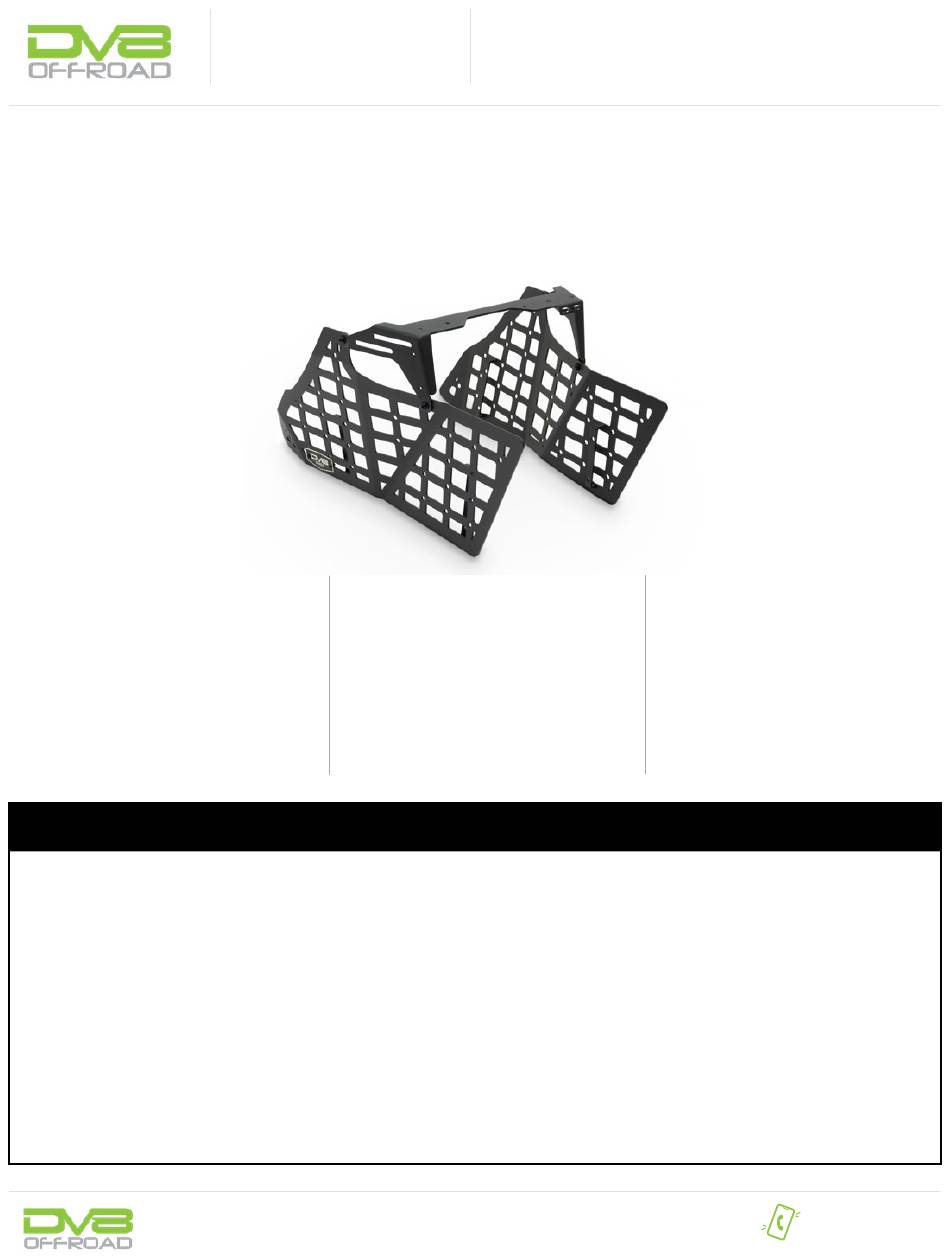

MOLLE CENTER CONSOLE AND BRIDGE
10-21 LEXUS GX460
CCGX-02
TOOLS
REQUIRED
- Drill
- 11/32" Drill Bit
- 4mm Allen Bit
- 10, 13mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice
- 1 (you) to 2 persons
Little skill level required, you can
install it by yourself, however, we
recommend additional assistance.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB CCGX-02
Summary of Contents for DVB CCGX-02
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM MOLLE CENTER CONSOLE AND BRIDGE 10-21 LEXUS GX460 CCGX-02 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - Drill - Novice - 2 Hours - 11/32” Drill Bit - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (12) M6x16 Allen (4) M6 Split Washer (12) M6 Flat Washer (8) M6 Serrated Nuts...
- Page 3 INSTALLATION MANUAL STEP 2 | Place the assembled piece into the vehicle, and line it up so the molle follow the lines of the vehicle. The top of the side panels should line up to be even with the stitching on the trim. The front of the side panels are cut to conform with the shape of the dash.
- Page 4 INSTALLATION MANUAL STEP 3 | When everything is lined up perfectly to your liking, have a friend hold the passenger assembly in place, while you mark passenger side mounting holes with a sharpie for drilling. STEP 4 | Remove the assembly from the vehicle, and drill out the marked mounting holes with an 11/32”...
- Page 5 INSTALLATION MANUAL STEP 6 | Double check that the panel is lined up correctly, and have a friend help hold the panel in place while you mark the driver side mounting holes with a sharpie. Then remove the hardware from the passenger side panel using a 4mm allen bit, and remove the assembly to prepare for drilling the driver side mounting holes.
- Page 6 INSTALLATION MANUAL STEP 9 | Double check all hardware is secure. This center console molle can be ran with or without the bridge. Now that both side panels are installed, you may choose to run the side panels without the bridge. To remove the bridge, use a 4mm allen bit to remove the M6 hardware securing it to the side panels.
- Page 7 INSTALLATION MANUAL STEP 11 | To use the nutsert tool, slider the M6 washer and spacer onto the provided M6x50 bolt with the washer going on the bolt first. Then install a nutsert onto the exposed threads by hand. STEP 12 | Slide the nutsert tool with the nutsert into the mounting hole.
