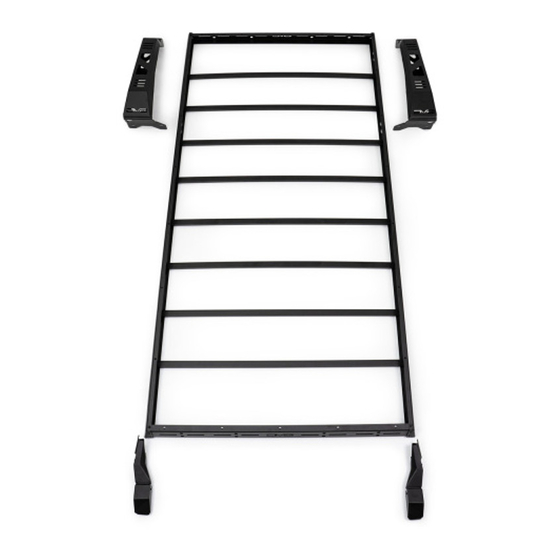

4 DOOR SOFT TOP
ROOF RACK
2021+ FORD BRONCO
RRBR-01
TOOLS
REQUIRED
- Ratchet
- 10mm Wrench
- 13mm Socket
- 3mm, 4mm Allen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, you can
easily assemble it by yourself
however, additional help will be
required to finish install.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hours
Time to install this should only
take about three hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB RRBR-01
Summary of Contents for DVB RRBR-01

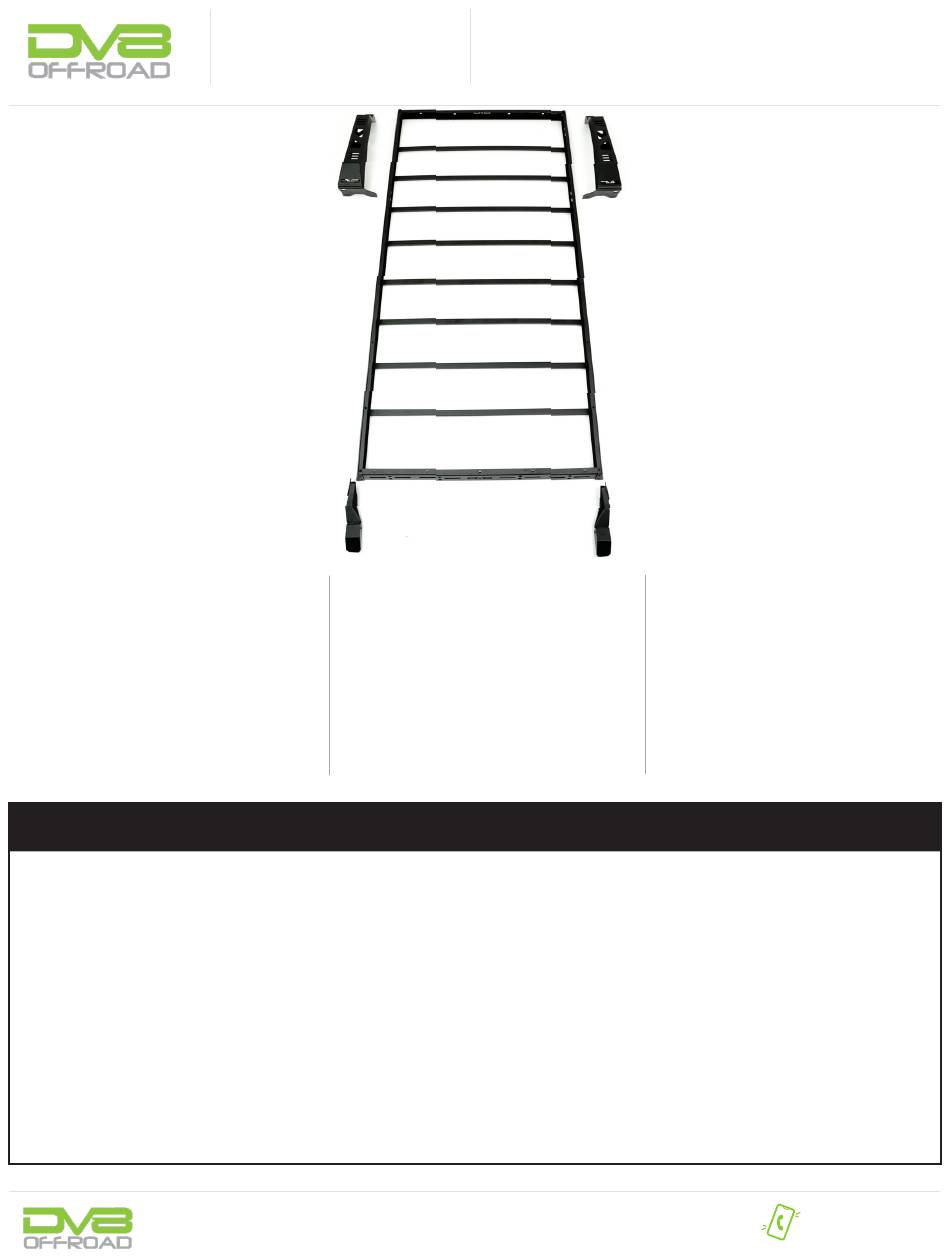

- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM 4 DOOR SOFT TOP ROOF RACK 2021+ FORD BRONCO RRBR-01 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - Ratchet - Novice/Intermediate - 3 Hours - 10mm Wrench - 2 persons...
- Page 2 INSTALLATION MANUAL STEP 1 Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Note: Additional hardware may be included in hardware kit HARDWARE INCLUDED (14) M8x20 Hex Head Bolts (24) M6x14 Allen Head Bolts...
- Page 3 INSTALLATION MANUAL STEP 4 Install provided foam pieces to the corresponding mounting brackets. The large bracket will have one piece on top and bottom. STEP 5 Assemble the two smaller front mounting brackets and secure using provided M6x20 hardware with a 4mm allen bit and 10mm wrench.
- Page 4 INSTALLATION MANUAL STEP 6 Moving to the vehicle, remove the trim pieces located at the top of the windshield by gently pulling from the top until it releases. Remove the factory nuts using a 10mm socket and remove the plastic insert. STEP 7 Install the front mounting brackets by laying it over the factory studs and secure...
- Page 5 INSTALLATION MANUAL STEP 8 Insert the rear mounting brackets into place by undoing the soft top clamps, and lifting the rear of the soft top up slightly. Slide the brackets into place. There is an opening on the bottom of the brackets that must slide over an exposed bolt for proper fitment.
- Page 6 INSTALLATION MANUAL STEP 10 With the assistance of another person, lift the roof rack on to the vehicle lining it up with the front mounts. To fit the rack inside the rear mounts, gently pull on the rear bracket from the top and away from the vehicle to allow enough room for the rack to slide between the mounts.
- Page 7 INSTALLATION MANUAL STEP 12 Install the top and bottom caps to the front mounts using a 3mm allen bit and provided M5x16 hardware. Align them and secure, but do not over tighten. STEP 13 Double check fitment and all hardware is secure.
