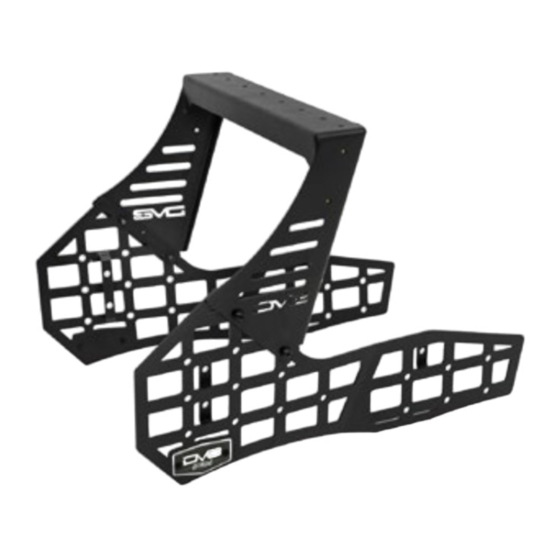

TACOMA CENTER CONSOLE
AND BRIDGE
2016-2023 (3RD GEN) TOYOTA TACOMA
CCT1-01
TOOLS
REQUIRED
-10mm wrench
-#4 Allen Bit
-Trim tool (optional)
-11/32" Drill Bit
-Drill
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB CCT1-01
Summary of Contents for DVB CCT1-01

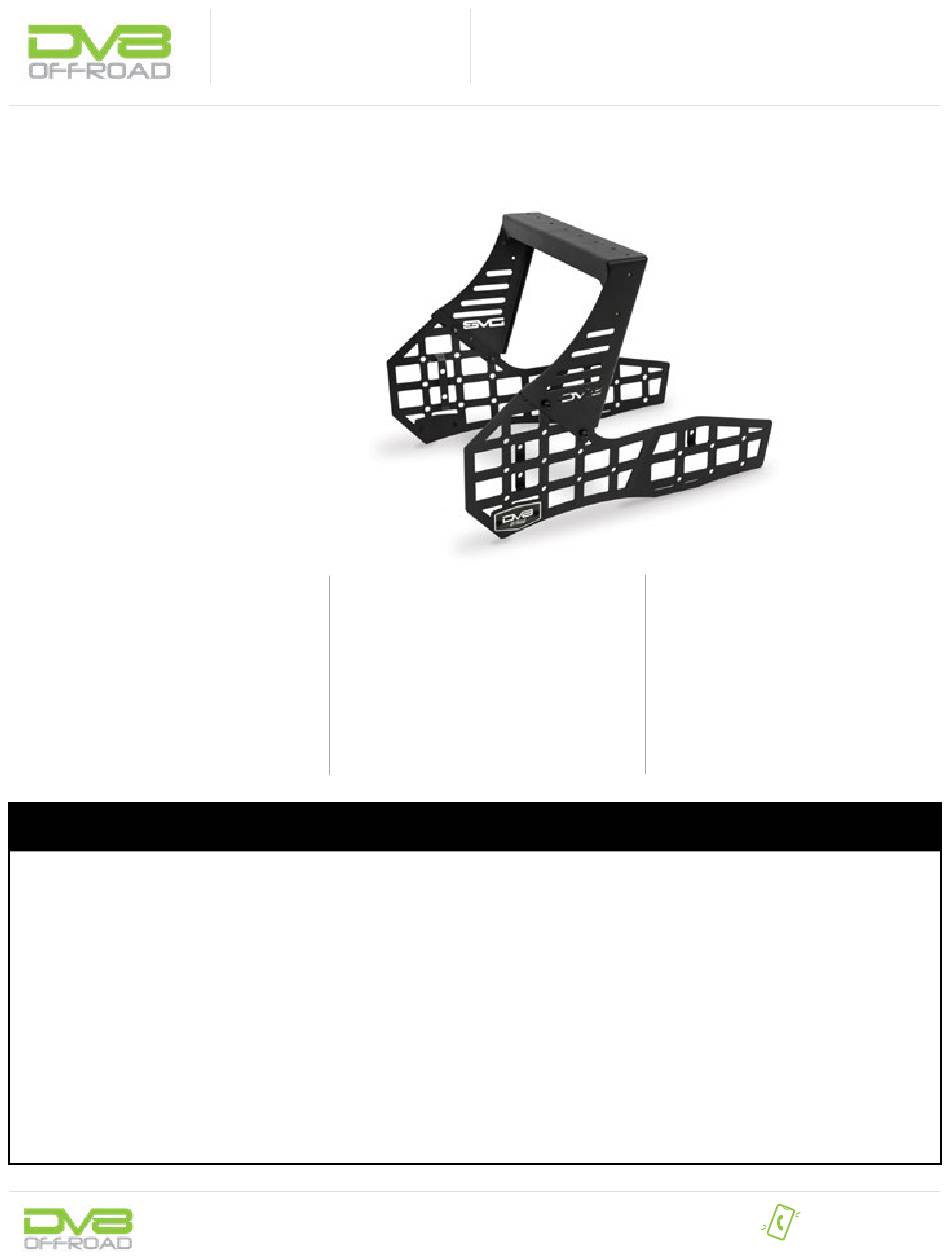

- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM TACOMA CENTER CONSOLE AND BRIDGE 2016-2023 (3RD GEN) TOYOTA TACOMA CCT1-01 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -10mm wrench - Novice/Intermediate - 1 Hour -#4 Allen Bit - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. HARDWARE INCLUDED (10) M6x15mm Bolts (10) M6 Flat Washers (6) M6 Nuts STEP 1 | Line the side brackets up against the center console of the vehicle.
- Page 3 INSTALLATION MANUAL STEP 3 | Once all holes are drilled, push down on the chrome bezel just below the shifter to release the boot. Unscrew the shifter and set off to the side. STEP 4 | Gripping the top of the center console, pull up to release the clips until the center console is free.
- Page 4 INSTALLATION MANUAL STEP 5 | Secure side mounts using the provided M6 hardware with a 4mm allen bit. Apply pressure to the nut with your hand until it “catches” and is secure. Ensure they stay aligned with the trim on the center console.
- Page 5 INSTALLATION MANUAL STEP 7 | Using the remaining M6 hardware and #4 allen bit, install the bridge. Align with dash and ensure it is level. STEP 8 | Double check all hardware is secure. Congratulations, you are done with you new Tacoma Center Console and Bridge! NEED HELP? 855-680-9595...
