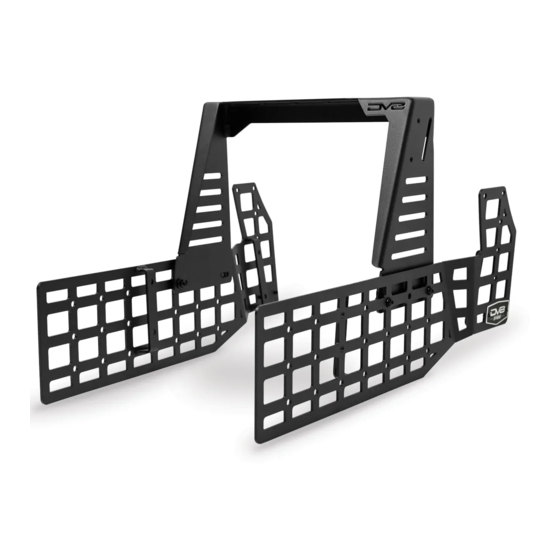

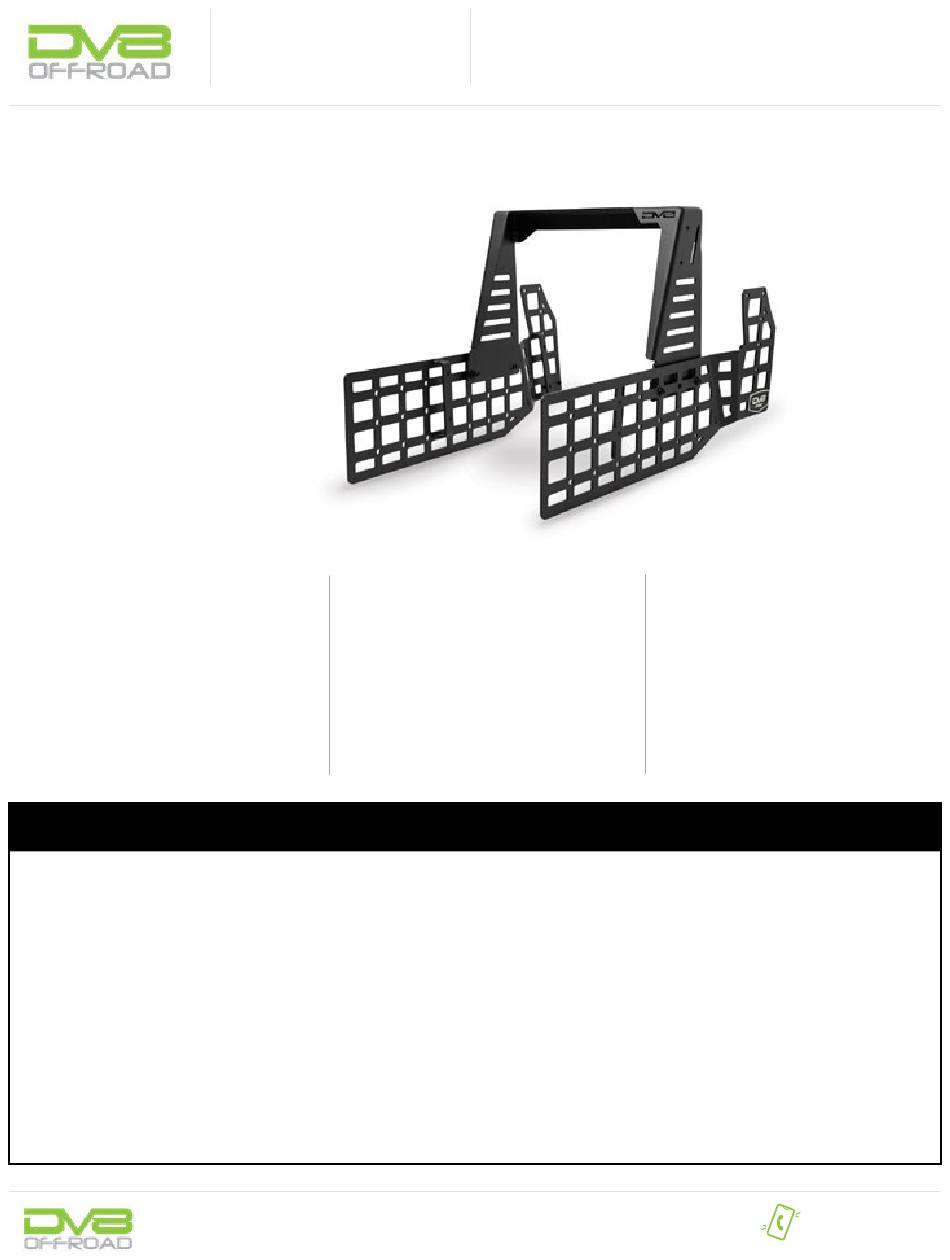

4RUNNER CENTER CONSOLE
AND BRIDGE
2010+ (5TH GEN) TOYOTA 4RUNNER
CCT3-01
TOOLS
REQUIRED
-10mm Socket/Wrench
-#4 Allen Bit
-11/32" Drill Bit/Step Bit
-Drill
-Short Phillips Head Screw Driver
-Plastic Trim Tool
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about an two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DVB CCT3-01
Summary of Contents for DVB CCT3-01
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM 4RUNNER CENTER CONSOLE AND BRIDGE 2010+ (5TH GEN) TOYOTA 4RUNNER CCT3-01 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -10mm Socket/Wrench - Novice/Intermediate - 2 Hours -#4 Allen Bit - 1 (you) to 2 persons Time to install this should only -11/32”...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. HARDWARE INCLUDED (12) M6x15mm Bolts (20) M6 Flat Washers (8) M6 Serrated Nuts STEP 1 | Place the driver and passenger side mounts into place and...
- Page 3 INSTALLATION MANUAL STEP 2 | Release the center console trim to access the wiring harnesses underneath. Pull up on the center console on both sides to release the clips holding it in place. Use a trim piece removal tool if necessary.
- Page 4 INSTALLATION MANUAL STEP 4 | Remove trim surrounding the heater and volume controls by pulling towards the rear of the vehicle to release the clips. Use a trim clip removal tool if necessary. The vehicle we used has two different trim pieces, but some models have one large trim piece.
- Page 5 INSTALLATION MANUAL STEP 5 | Use a 10mm wrench to remove the two bolts located on each side of the transmission shift knob. STEP 6 | Use a phillips head screwdriver to remove the four screws located in front of the transmission shift knob, on both sides of the center console.
- Page 6 INSTALLATION MANUAL STEP 7 | Use a stepped drill bit to drill out the marked holes for installation. We recommend a stepped drill bit so that you do not drill into the rear air conditioning tubing under the center console on the drivers side and due to the angle of drilling for the rear mounts.
- Page 7 INSTALLATION MANUAL STEP 10 | Lift the sides of the center console over the guide pin and install factory hardware using a short philips head screwdriver. STEP 11 | Install trim pieces on the dash by applying pressure until the clips are secure.
- Page 8 INSTALLATION MANUAL STEP 13 | Install the bridge using the provided M6 hardware with a 4mm allen bit. NEED HELP? 855-680-9595...
- Page 9 INSTALLATION MANUAL STEP 14 | Double check all hardware is secure and in place. Congratulations, you are done with the install of your Center Console and Bridge. NEED HELP? 855-680-9595...
