4 DOOR HARDTOP
ROOF RACK
2021+ FORD BRONCO
RRBR-02
TOOLS
REQUIRED
-10mm wrench
-13mm Socket
-3mm, 4mm Aleen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily assemble this by yourself,
however will need assistance for
installation
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hours
Time to install this should take
about 3 hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB RRBR-02
Summary of Contents for DVB RRBR-02

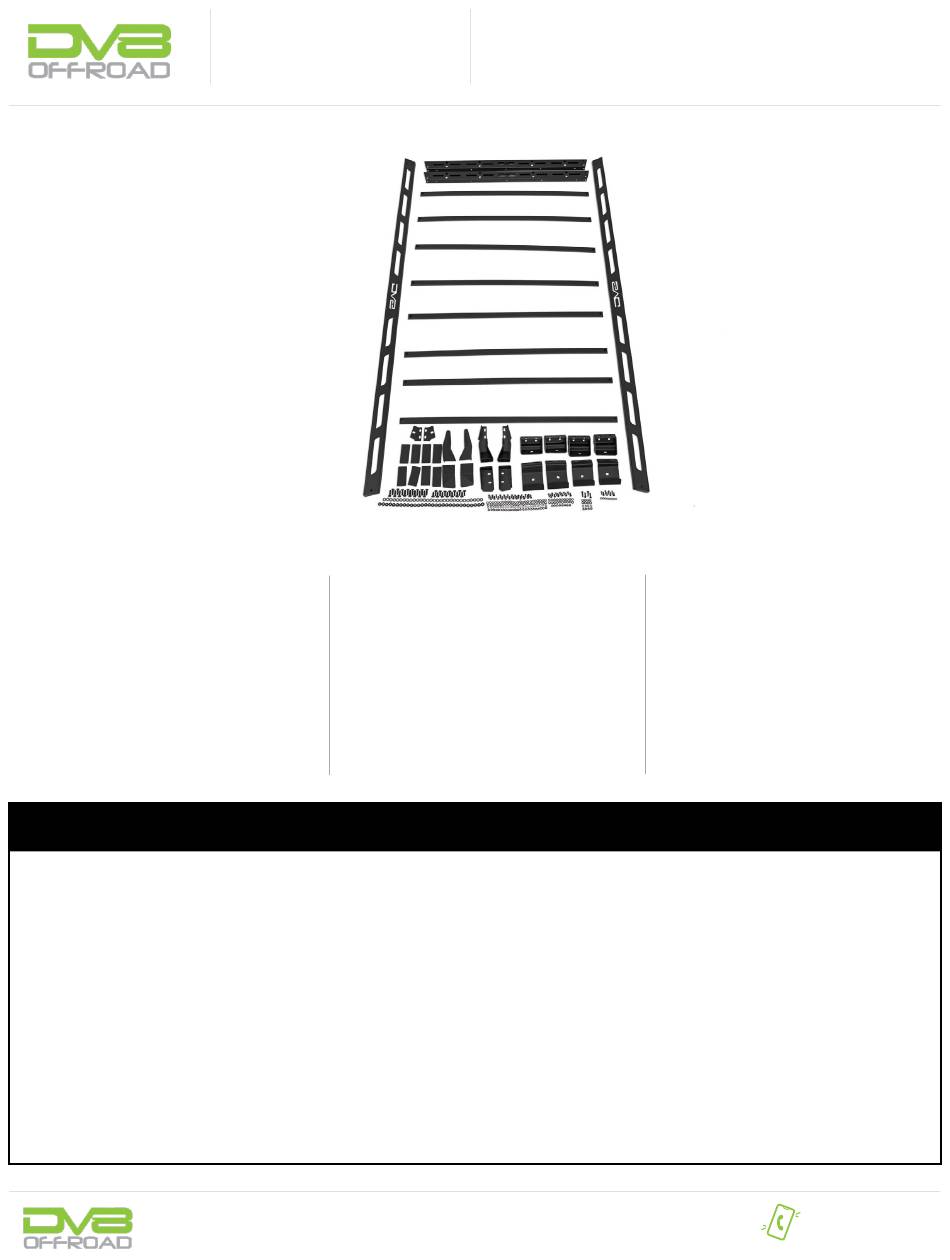

- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM 4 DOOR HARDTOP ROOF RACK 2021+ FORD BRONCO RRBR-02 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -10mm wrench - Novice/Intermediate - 3 Hours -13mm Socket - 1 (you) to 2 persons...

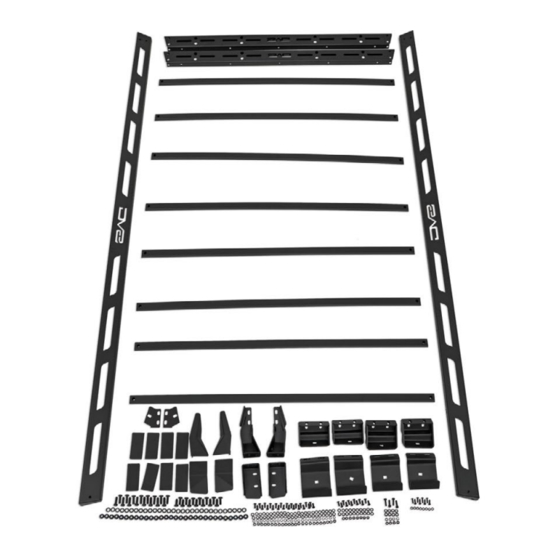

- Page 2 INSTALLATION MANUAL STEP 1 Begin by unpacking all items and inspect- ing for missing pieces or damage. If you have any concerns, please contact the com- pany the product was purchased from. Note: Additional hardware may be included in hardware kit HARDWARE INCLUDED (24) M6x14 Allen Head...
- Page 3 INSTALLATION MANUAL STEP 3 Peel paper from the foam and install to the corresponding brackets. When applying foam to clamps, the foam will bend and wrap inside the mount. STEP 4 Loosely install the feet to the rack using the provided M8x20 hardware and a 13mm socket.
- Page 4 INSTALLATION MANUAL STEP 5 Assemble the front mounting brackets and DRIVERSIDE BRACKET secure using provided M6x20 hardware with a 4mm allen head and 10mm wrench. This is a heavier duty hardware used for this specific application based on the load that is placed on this mount.
- Page 5 INSTALLATION MANUAL STEP 7 Install the front mounting brackets and secure using the factory nuts and a 10mm socket. Ensure the corners are facing towards each other to secure the rack. STEP 8 With the assistance of another person, lift the roof rack on to the vehicle and loosely secure the rack to the front brackets using the provided M8 hardware and a 13mm...
- Page 6 INSTALLATION MANUAL STEP 9 Position the feet of the rack in the slots of the hard top roof so they are lined up with the notches directly above the side win- dows, then finish securing the rack to the front mounts with a 13mm socket. STEP 10 Install the clamps into the notches on the hardtop and secure to the feet of the rack...
- Page 7 INSTALLATION MANUAL STEP 11 Finish securing the feet to the rack and the rack to the front mounts using a 13mm socket/wrench. STEP 12 Install the top and bottom caps to the front mounts using the 3mm allen bit and provid- ed M5x16 hardware..
- Page 8 INSTALLATION MANUAL STEP 13 Double check fitment and all hardware is secure. Congratulations, you are finished with the install of the Ford Bronco Hard Top Roof Rack. NEED HELP? 855-680-9595...
