Important safety instructions :
• Please read carefully all instructions before assembly.
• For your safety and ease, assembly by two or more adults is recommended.
• Keep instructions for future use.
Pre-assembly:
• Do not discard any contents until assembly is complete to avoid accidentally discarding small parts or
hardware.
• Remove all parts and hardware from box along with any plastic protective packaging.
Parts List
Item
Description
P1
RIGHT SIDE FOOTREST
P2
LEFT SIDE FOOTREST
P3
FRONT LEG FRAME
P4
BACK LEG FRAME
P5
CUSHION SEAT
Hardware List
Item
Description
Bolts Ø5/16" x 2"
H1
H2
Lock Washers 5/16"
H3
Flat Washers 5/16"
H4
Allen Wrench 5/16"
H5
Wood Screw 8 # X 1 1/2"
H6
Screwdriver
DISCLAIMER :
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE.
SELLER IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED
AFTER PURCHASE.
ASSEMBLY INSTRUCTIONS

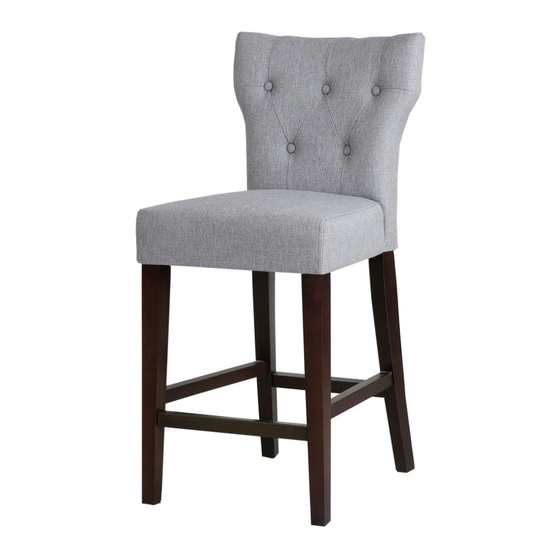

Description: Avila Counter Stool
QTY
1
1
1
1
1
QTY
9
9
9
1
4
**Not Provided
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Madison Park Avila
Summary of Contents for Madison Park Avila
- Page 1 ASSEMBLY INSTRUCTIONS Description: Avila Counter Stool Important safety instructions : • Please read carefully all instructions before assembly. • For your safety and ease, assembly by two or more adults is recommended. • Keep instructions for future use. Pre-assembly: • Do not discard any contents until assembly is complete to avoid accidentally discarding small parts or hardware.
- Page 2 Assembly Procedures: Step 1. Attach Front Leg Frame (P3) to the Seat Frame (P5), secure Front Leg Frame (P3) to the Seat Frame (P5) using Bolt (H1), Allen Wrench (H4) with Lock Washer (H2) and Flat Washer (H3) as shown in the illustration below, do not fully tighten at this step .
- Page 3 Step 4: Attach Cushion Seat (P5), Left and Right side Footrests (P1 & P2) to the Back Leg Frame (P4) using Allen Wrench (H4) with Bolt (H1), Lock Washer (H2), Flat Washer (H3) to secure the Cushion Seat and Screwdriver (H6) with Wood Screw (H5) to ensure the Left and Right Footrest (P1 &...
