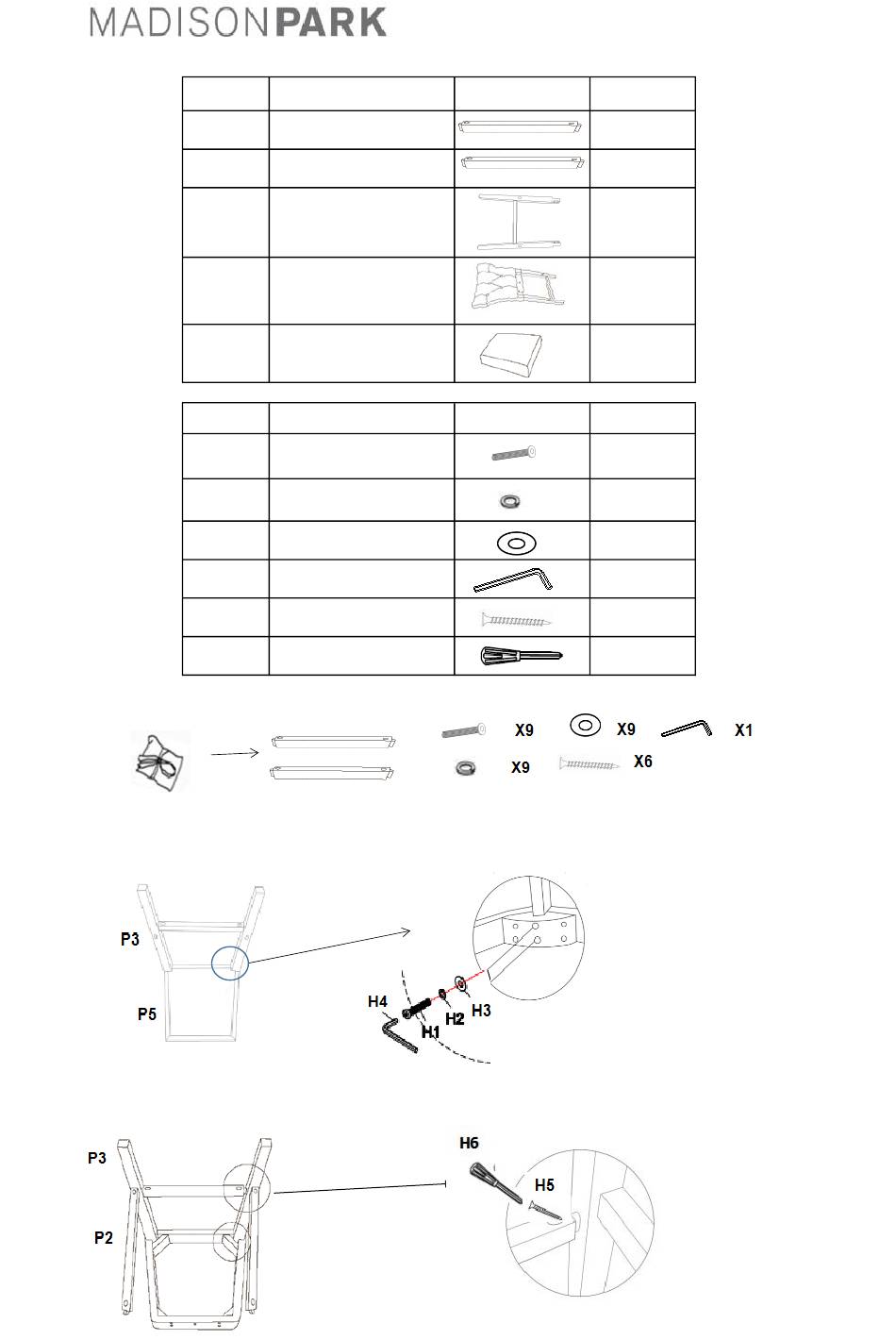

Assembly Instruction---Counterstool
Parts#
P1
P2
P3
P4
P5
Hardware#
H1
H2
H3
H4
H5
H6
Step 1.Take out the leg frames , footrest and hardware from the box.
Step 2: Insert Front leg frame (P3) to the seat frame (P5), Lock the front legs to the seat frame using Allen
Wrench (H4) to loosely tighten bolt (H1), lock washer (H2), flat washers (H3) as illustration below.
Step 3: Insert P1 and P2 to the front leg frame(P3),lock the footrest to the front legs, loosely tighten the screw
(H5) with the screw driver (H6) as illustration below.
Parts Name
Left side footrest
Right side footrest
Front leg frame
Back leg frame
Seat
PARTS NAME
Bolts
φ5/16*2-3/8"
Lock Washers
φ5/16"
Flat Washers
φ5/16"
Allen Wrench
φ5/16"
Screw
Screwdriver
P1
Drawing
Qty
1
1
1
1
1
DRAWING
QTY
9
9
9
1
6
Not provided
Advertisement
Table of Contents
Related Manuals for Madison Park 267517
Summary of Contents for Madison Park 267517
- Page 1 Assembly Instruction---Counterstool Parts# Parts Name Drawing Left side footrest Right side footrest Front leg frame Back leg frame Seat Hardware# PARTS NAME DRAWING Bolts φ5/16*2-3/8" Lock Washers φ5/16" Flat Washers φ5/16" Allen Wrench φ5/16" Screw Screwdriver Not provided Step 1.Take out the leg frames , footrest and hardware from the box. Step 2: Insert Front leg frame (P3) to the seat frame (P5), Lock the front legs to the seat frame using Allen Wrench (H4) to loosely tighten bolt (H1), lock washer (H2), flat washers (H3) as illustration below.
- Page 2 Step 4: Attach Step 3 finished part to back leg frame (P4) as shown in below illustration. Step 5: Lock the seat (P5) to the back frame (P4) using Allen Wrench (H4) to loosely tighten bolt (H1), lock washer (H2), flat washers (H3) as below illustration. Loosely tighten the screw (H5) with the screw driver (H6) to lock P1 and P2 to the back legs (P4) as illustration below.
