Important safety instructions:
● Please read carefully all instructions before assembling the stool.
● For your safety and ease, assembly by two or more adults is recommended.
● Keep instructions for future use.
Pre-assembly:
● Do not discard any content until assembly completed to avoid accidentally discarding small parts or
hardware.
● Take out all parts and hardwares from box.

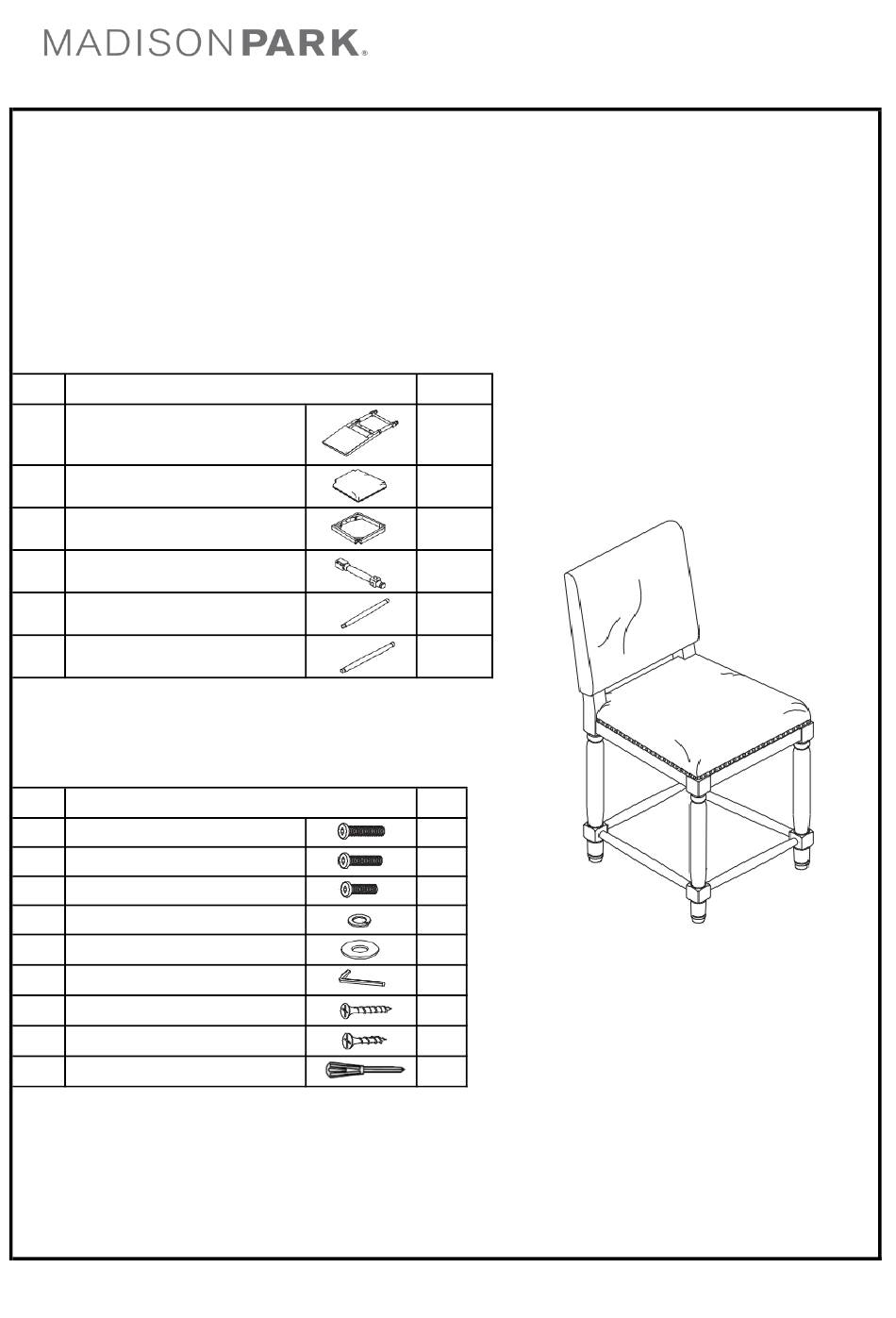

Parts List
Item
Chair Back
A
Seat Cushion
B
C
Seat Frame
D
Front Legs
Short Stretcher
E
Long Stretcher
F
Hardware List
Item
a
Long Bolts Ø5/16"*3-1/2"
Medium Bolts Ø5/16"*2-1/4"
b
Short Bolts Ø5/16"*1-3/4"
c
Lock Washers 5/16"
d
e
Flat Washers 5/16"
Allen Wrench 5/16"
f
Wood Screw 8#*1-3/4"
g
Wood Screw 8#* 5/8"
h
Screwdriver
i
Description
Description
ASSEMBLY INSTRUCTIONS
Description : Counter Stool
QTY
1
1
1
2
1
2
QTY
4
4
1
9
9
1
6
5
1
** Not Provided
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Madison Park 267521
Summary of Contents for Madison Park 267521
- Page 1 ASSEMBLY INSTRUCTIONS Description : Counter Stool Important safety instructions: ● Please read carefully all instructions before assembling the stool. ● For your safety and ease, assembly by two or more adults is recommended. ● Keep instructions for future use. Pre-assembly: ●...
- Page 2 Assembly Procedures: Step 1. 1) Assemble the stool on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. 2) Attach Seat Frame (C) to the Chair Back (A) using Bolts (a) for corner block, Bolt (c) at centre , Lock Washers (d) and Flat Washers (e).
- Page 3 Step 3. 1) Attach Long Stretchers (F) to the leg of Chair Back (A) as shown. Step 4. Attach one of the Front Leg (D) to the left side of Seat Frame (C) and one of the Long Stretchers (F) using Allen Wrench (f), Bolts (b), Lock Washers (d) and Flat Washers (e).
- Page 4 Step 5. 1) Attach one end of Front Stretcher (E) to the Front Leg (D) at the left, then repeat the assembly step 4 to attach another Front Legs (D) to the right side of Seat Frame (C) and attach with another end of the Front Strechers (E). 2) Make sure all pre-drilled holes at all stretchers downwards, then fully tighten all Bolts (a,b,c) with Allen Wrench (f) 3) Fully tighten all the Screws (g) that securing Stretchers (E,F) to the legs.
