Important safety instructions :
• Please read carefully all instructions before assembly.
• For your safety and ease, assembly by two or more adults is recommended.
• Keep instructions for future use.
Pre-assembly:
• Do not discard any contents until assembly is complete to avoid accidentally discarding small parts or
hardware.
• Remove all parts and hardware from box along with any plastic protective packaging.
Parts List
Item
Stool Back
P1
P2
Seat Cushion
P3
Left Stretcher
P4
Right Stretcher
P5
Front Stretcher
P6
Front Legs
Hardware List
Item
H1
Long Bolts Ø5/16" x 3"
H2
Short Bolts Ø5/16" x 2"
H3
Lock Washers 5/16"
H4
Flat Washers 5/16"
H5
Allen Wrench 5/16"
H6
Screw #8 x 1-1/2"
DISCLAIMER :
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE.
SELLER IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED
AFTER PURCHASE.
ASSEMBLY INSTRUCTIONS

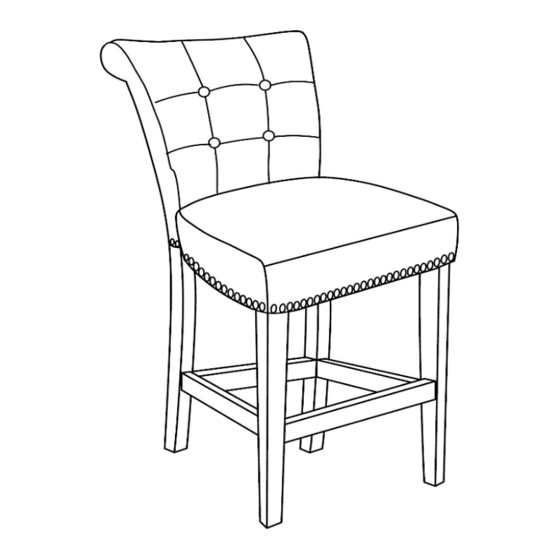

Description: Colfax Counter & Bar Stool
Description
Description
QTY
1
1
1
1
1
2
QTY
4
5
9
9
1
6
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Madison Park Colfax
Summary of Contents for Madison Park Colfax
- Page 1 ASSEMBLY INSTRUCTIONS Description: Colfax Counter & Bar Stool Important safety instructions : • Please read carefully all instructions before assembly. • For your safety and ease, assembly by two or more adults is recommended. • Keep instructions for future use.
- Page 2 Assembly Procedures: Step 1. Asemble the stool on a flat,soft surface such as carpet or cloth to prevent scratching the finish. Attach seat cushion (P2) to stool back (P1) using bolt (H2), lock washer (H3) and flat washer (H4). Loosely tighten the bolts with Allen wrench (H5).
- Page 3 Step 3: Insert right stretcher (P4) to the leg of stool back (P1) according to the label "R" on the leg of stool back and the front end of right stretcher (P4). Loosely attach front leg (P6) to the bottom of seat cushion (P2) and right stretcher (P4) using bolt (H2), lock washer (H3),flat washer (H4) and Allen Wrench (H5).Do not tighten the screws at this time .
