www.ti.com
EVM User's Guide: TAA5242EVM-K TAD5242EVM-K TAC5142EVM-K
TAC5242EVM-K TAD5142EVM-K
TAx5x42EVM-K Hardware Control Evaluation Module
Description
The TAx5x42EVM-K evaluation module (EVM) allows
the user to test the capabilities of Texas Instruments'
TAC5242; a two-channel hardware control high-
performance Codec, TAC5142 a two-channel
hardware control Codec, TAA5242 a two-channel
hardware control high-performance ADC, TAD5242 a
two-channel hardware control high-performance DAC
or TAD5142 a two-channel hardware control DAC.

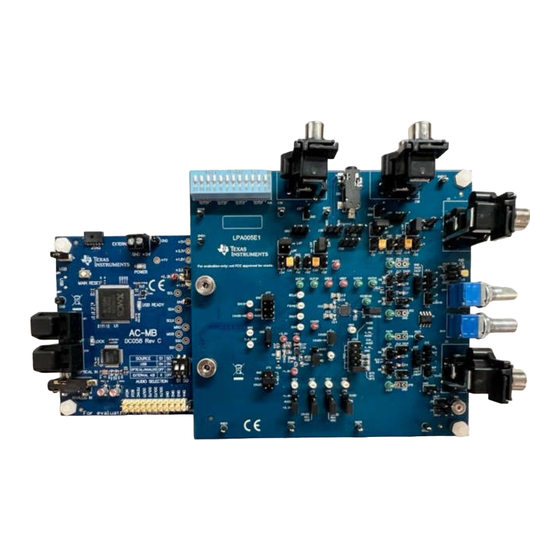

The evaluation module is paired with the AC-MB, a
flexible motherboard which provides power, control
and digital audio data to the evaluation module. Other
variants listed are also supported where the user
replaces the U1 unit with the device of interest.
Get Started
1. Order the EVM from TAx5x1x product folder.
2. Download the latest TAx5x1x data sheet.
SLAU904A – OCTOBER 2023 – REVISED DECEMBER 2023
Submit Document Feedback
Features
•
High performance Mono/Stereo Codec with
dynamic range: 120 dB DAC and 115 dB ADC
•
Standard performance Mono/Stereo Codec with
dynamic range: 106 dB DAC and 102 dB ADC
•
On-board microphones provided for voice
recording testing
•
Direct access to digital audio signals and control
interface for simple end-system integration
•
USB connection to PC provides power, control,
and streaming audio data for easy evaluation
Applications
•
AV receivers
•
Video conference systems
•
IP network camera
•
Speakers
Copyright © 2023 Texas Instruments Incorporated
TAx5x42EVM-K Hardware Control Evaluation Module
Description
1
