Default Jumper Settings ....................... Address Select ........................Mono Setup ....................Windows Playback Devices ..............Texas Instruments USB Audio Device Control Panel ................. Windows Playback device Sample Rate ......................... Stereo Setup ....................Windows Playback Devices ..............Texas Instruments USB Audio Device Control Panel ................. -
Page 2: Export Control Notice

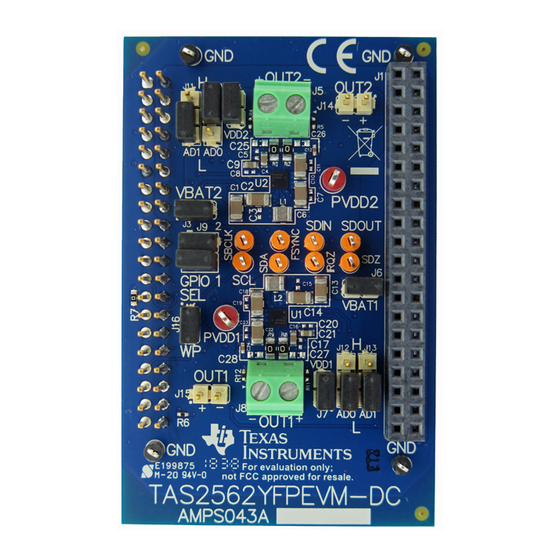

U.S. Department of Commerce and other competent Government authorities to the extent required by those laws. Trademarks PurePath is a trademark of Texas Instruments. Microsoft, Windows are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners. Description The TAS2562YFPEVM-DC is designed to demonstrate the performance of TAS2562 in a stereo configuration. -
Page 3: Software
Ch 1 GPIO Insert Ch 1 VBAT Insert EEPROM WP Insert Ch 1 Out Insert Ch 1 VDD Ch 1 ADDR0 Ch 1 ADDR1 SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 4: Address Select
C addresses shown in Section 6.2. Use J12 & J13 to configure Channel 1 and J10 & J11 to configure Channel 2 as shown in Figure TAS2562YFPEVM-DC User's Guide SLAU788 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 5: Mono Setup
Mono Setup Use the following instructions to complete a mono setup: 1. Install PPC3 with the TAS2562 plug-in. 2. Connect a speaker to J8 on the TAS2562YFPEVM-DC. 3. Remove the jumpers at J3 and J4 as shown in Figure Figure 4. Mono Setup 4. -
Page 6: Windows Playback Devices
Device Configuration www.ti.com Figure 5. Windows Playback Devices 9. Set the maximum bit depth using the Texas Instruments USB Audio Device Control Panel found in the system tray Figure 6. Texas Instruments USB Audio Device Control Panel 10. Set the sampling rate •... -
Page 7: Windows Playback Device Sample Rate
Use the following instructions to complete a stereo setup: 1. Install PPC3 with the TAS2562 plug-in 2. Connect a speaker to both J8 and J5 on the TAS2562YFPEVM-DC 3. Set the jumpers at J12 & J13 and J11 & J10 to the unique I C address as shown in Section 6.2... -
Page 8: Windows Playback Devices
7. Verify that TI USB Audio UAC2.0 is the default playback device by opening the sound dialog from the Windows Control Panel Figure 9. Windows Playback Devices 8. Set the maximum bit depth using the Texas Instruments USB Audio Device Control Panel found in the system tray Figure 10. Texas Instruments USB Audio Device Control Panel 9. -
Page 9: Digital Audio Interfaces
C Data (SDA) The selection between USB (internal) and external inputs is set using the control header on PPC3-EVM-MB. Please refer to for detailed configuration settings. SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 10: Evm Schematics
PVDD1 LVC1G125 GNDD 0.01uF 10uF PGND AD0-1 PGND 1.8V AD1-1 GNDB GNDB AD0-1 GNDB 0.1µF TAS2562YFPR CHANNEL 1 PVDD1 AD1-1 Figure 12. EVM Schematic TAS2562YFPEVM-DC User's Guide SLAU788 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Evm Layer Plots
EVM Layer Plots www.ti.com EVM Layer Plots Figure 13. TAS2562YFPEVM-DC Top Assembly Figure 14. TAS2562YFPEVM-DC Top Silk Screen SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Tas2562Yfpevm-Dc Top Solder Mask
EVM Layer Plots www.ti.com Figure 15. TAS2562YFPEVM-DC Top Solder Mask Figure 16. TAS2562YFPEVM-DC Top Copper TAS2562YFPEVM-DC User's Guide SLAU788 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 13: Tas2562Yfpevm-Dc Copper Layer
EVM Layer Plots www.ti.com Figure 17. TAS2562YFPEVM-DC Copper Layer 2 Figure 18. TAS2562YFPEVM-DC Copper Layer 3 SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 14: Tas2562Yfpevm-Dc Copper Layer
EVM Layer Plots www.ti.com Figure 19. TAS2562YFPEVM-DC Copper Layer 4 Figure 20. TAS2562YFPEVM-DC Copper Layer 5 TAS2562YFPEVM-DC User's Guide SLAU788 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Tas2562Yfpevm-Dc Bottom Copper
EVM Layer Plots www.ti.com Figure 21. TAS2562YFPEVM-DC Bottom Copper Figure 22. TAS2562YFPEVM-DC Bottom Solder SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Bill Of Materials
Bill of Materials www.ti.com Figure 23. TAS2562YFPEVM-DC Bottom Silk Screen Figure 24. TAS2562YFPEVM-DC Bottom Assembly Bill of Materials Table 4. Bill of Materials Designator Value Description PackageRefer PartNumber Manufacturer Alternate Alternate ence PartNumber Manufacturer !PCB1 Printed Circuit AMPS043 Board C1, C2, C6,... - Page 17 TP7, TP8, Orange, TH Testpoint TP9, TP10 U1, U2 6W Boosted YFP0036-C02 TAS2562YFP Texas TAS2562YFP Texas Class-D Audio Instruments Instruments Amplifier with IV-sense, YFP0036-C02 (DSBGA-36) SLAU788 – October 2018 TAS2562YFPEVM-DC User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 18 Inductor, 1 uH, 4.15x4mm PCMB053T- Susumu Co 7 A, 0.014 1R0MS ohm, SMD R10, R13 RES, 0, 5%, 1 2512 RC6432J000C Samsung W, 2512 TAS2562YFPEVM-DC User's Guide SLAU788 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 19 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
