Item #1001 689 750
#1001 689 749
Model #44001-HBC
#44001-HBCB
USE AND CARE GUIDE

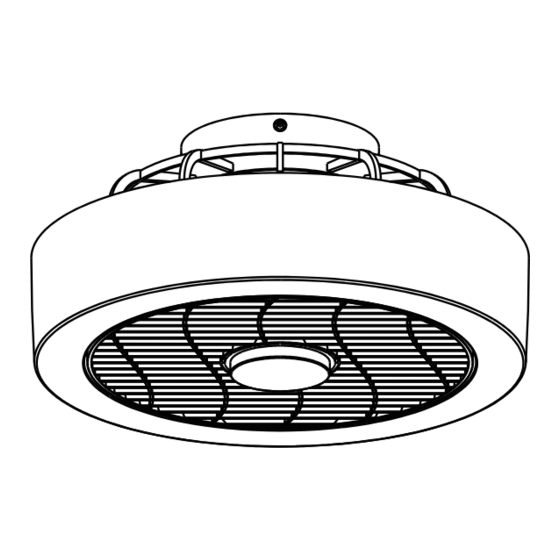

20-INCH INDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.CA
THANK YOU
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection 44001-HBC
Summary of Contents for Home Decorators Collection 44001-HBC
- Page 1 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.CA THANK YOU to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................9 Warranty ................3 Care and Cleaning ............. 10 Pre-Installation ..............3 Troubleshooting ..............10 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of a lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glas s or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Description Part Quantity Mounting Screw Wire nuts Tapping Screw Hanging Board (preassembled) Hanging Board Screw (preassembled) Instructions Green gruond screw AAA Battery Transmitter...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Description Part Quantity Fixture body WWW.HOMEDEPOT.CA Please contact 1-800-986-3460 for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked “acceptable for fan support of 15.9 kg (35 lbs) or less” using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Routing the wires Installing the hang board Attach the hang board (DD) to the outlet box (not included) WARNING: Make sure power is off before attempting with the two mounting screws (AA). installation. Secure the hang board (DD) to the ceilings with the Unlock the hanging board screws (EE) from the hanging tapping screws (CC). - Page 8 Making the electrical connections and installing the finished product lamp NOTE: Alw re nuts (BB) to connect wires and push outlet all e res and connections back into the Attach the hang buckle from the to the hang board (DD). Connect the ground wire from the branch circuit to the green ground screw (GG) on the hang board (DD)
-
Page 9: Operation
Operation REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the surface of the Remote control. This switch controls directions: forward (Default switch) or switch the reverse function NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm weather (counterclockwise direction) A downward air flow creates a cooling effect. -
Page 10: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. Clean your fan periodically to help maintain its new appearance over the years. - Page 11 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.CA Retain this manual for future use.
