USE AND CARE GUIDE

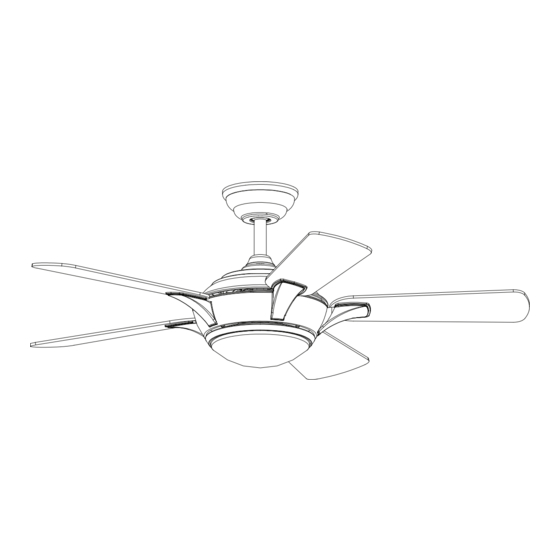

CHELTON 46-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHELTON 46-MDL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection CHELTON 46-MDL

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation.
  • Page 3: Warranty

    A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Blade bracket screws Plastic wire connecting nuts...
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade (inside canopy) Light kit pan Ball/downrod assembly Light kit fitter assembly Canopy Frosted white glass Decorative motor collar cover Receiver Fan-motor assembly Remote control Blade arm Extension lead wire Battery IMPORTANT: This product and/or components are governed by...
  • Page 6: Installation

    Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock or NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “Acceptable ceiling. The maximum angle allowable is 30° away from for fan support of 35 lbs.
  • Page 7: Assembly

    Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Route the wires exiting the top of the fan motor assembly (E) Remove the canopy ring (MM) from the canopy by turning the through the decorative motor collar cover (D) and then the ring to the right until it unlocks.
  • Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ Carefully lift the fan-motor assembly (E) up to the slide-on WARNING: To reduce the risk of fire, electric shock or personal mounting bracket (A). injury, mount to outlet box marked “Acceptable for fan support □...
  • Page 9 Assembly - Hanging the Fan (continued) Setting the code on the remote control and receiver NOTE: The frequencies on your receiver and hand unit have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and hand unit are set to the same frequency.
  • Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the Wiring the fan to the receiver household wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with the electricity off at the main fuse box before wiring.
  • Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) □ Align the locking slots of the canopy (C) with the two screws (JJ) and alignment post (KK) in the mounting bracket (A). □ Push up the canopy (C) and turn clockwise until the alignment post (KK) engage to the round hole and the screws (JJ) engage to the key slots.
  • Page 12 Assembly - Attaching the Accessories Installing the light kit pan □ Remove one screw (LL) from the black bracket below the fan motor assembly (E), and loosen but do not remove the other two screws. □ Push the light kit pan (H) up to the fan motor assembly (E) so that the two loosened screw heads fit into the keyhole slots.
  • Page 13: Operation

    Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate A. Warm weather the speed and lights of your new ceiling fan. Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.
  • Page 14: Care And Cleaning

    Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
  • Page 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
