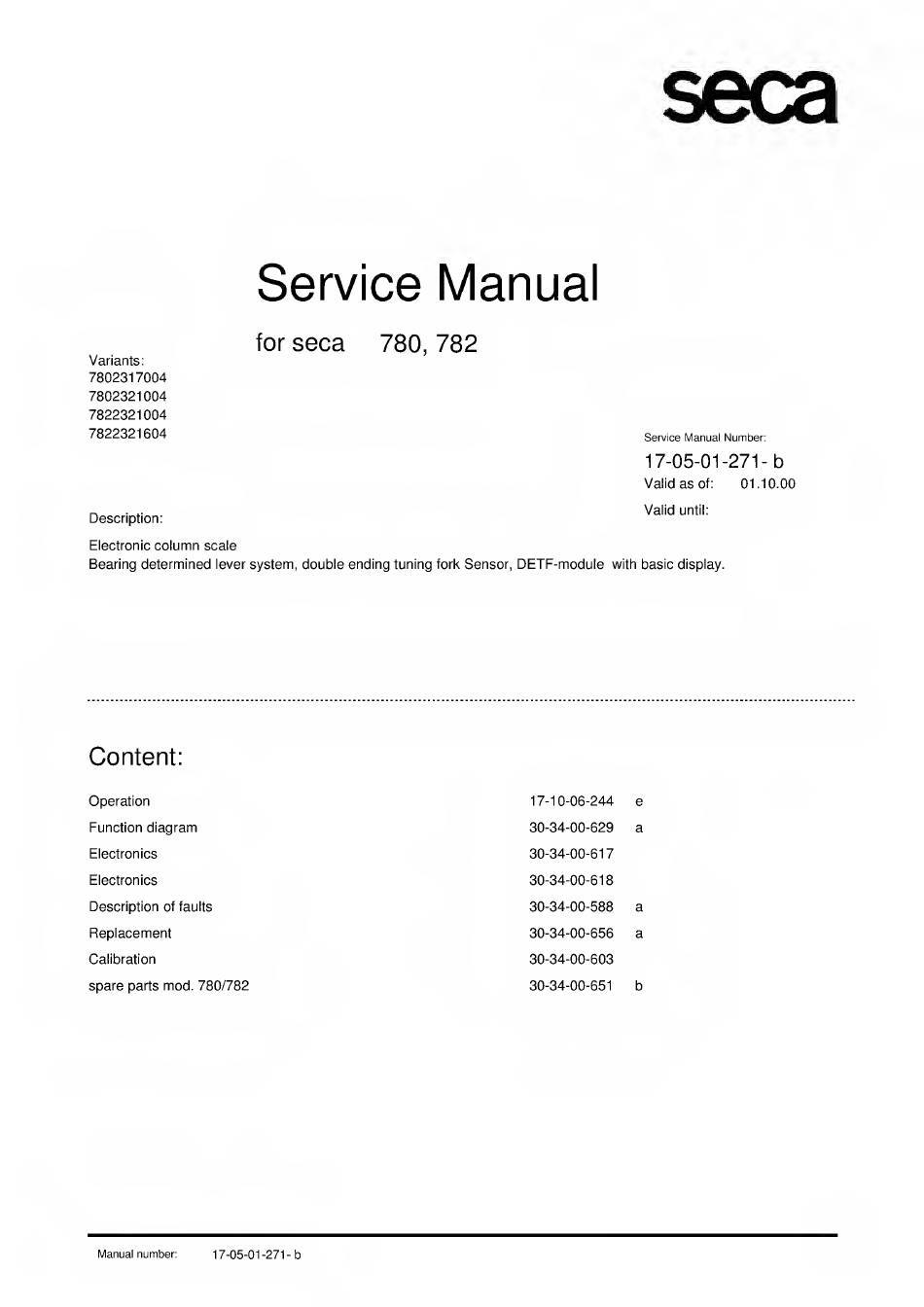

Seca 780 Service Manual

Service Manual
for seca 780, 782
Variants:
7802317004
7802321004
7822321004
7822321604
Description:
Service Manual Number:
17-05-01-271- b
Valid as of: 01.10.00
Valid until:

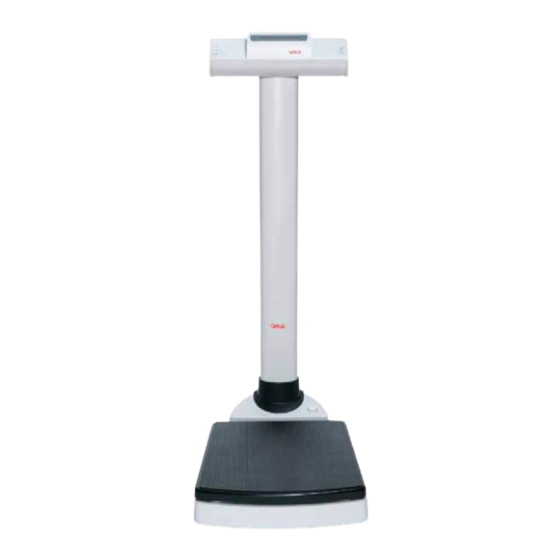

Electronic column scale
Bearing determined lever system, double ending tuning fork Sensor, DETF-module with basic display.
Content:
Operation 17-10-06-244 e
Function diagram 30-34-00-629 a
Electronics 30-34-00-617
Electronics 30-34-00-618
Description of faults 30-34-00-588 a
Replacement 30-34-00-656 a
Calibration 30-34-00-603
spare parts mod. 780/782 30-34-00-651 b
Manual number:
17-05-01-271- b
