Icom IC-A200 Instruction Manual page 5

wi id
- (LS CH
Es
® 9

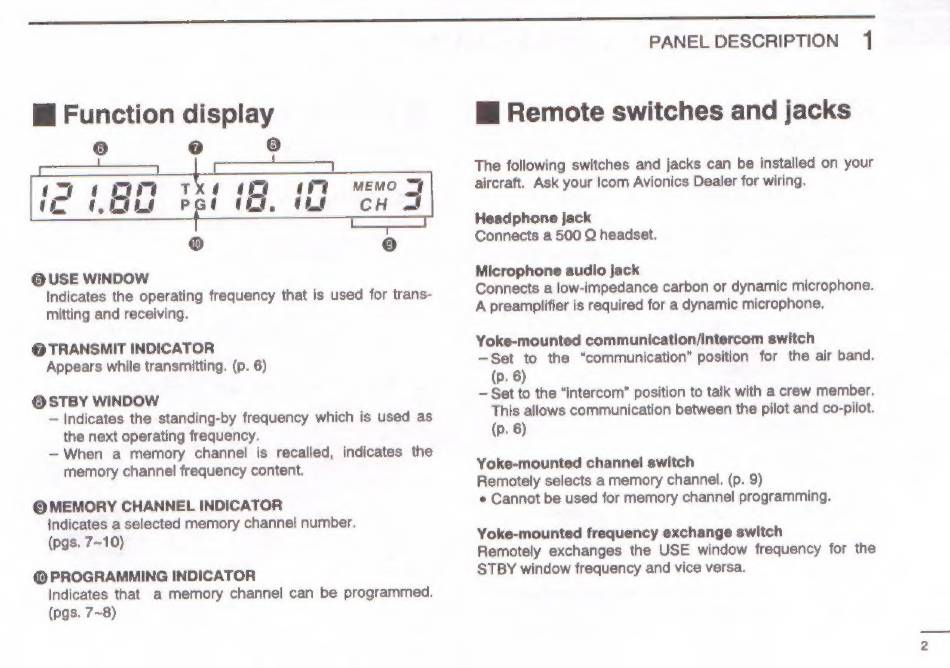

@USE WINDOW
Indicates the operating frequency that is used for trans-
mitting and receiving.
@ TRANSMIT INDICATOR
Appears while transmitting. (p. 6)
@OSTBY WINDOW
— Indicates the standing-by frequency which is used as
the next operating frequency.
—When a memory channel is recalled, indicates the
memory channel frequency content.
@ PROGRAMMING INDICATOR
Indicates that a memory channel can be programmed.
(pgs. 7~8)
PANEL DESCRIPTION 1
Headphone Jack
Connects a 500 Q headset.
Microphone audio jack
Connects a low-impedance carbon or dynamic microphone.
A preamplifier is required for a dynamic microphone.
(p. 6)
Yoke-mounted channel switch
Remotely selects a memory channel. (p. 9)
¢ Cannot be used for memory channel programming.
Yoke-mounted frequency exchange switch
Remotely exchanges the USE window frequency for the
STBY window frequency and vice versa.
