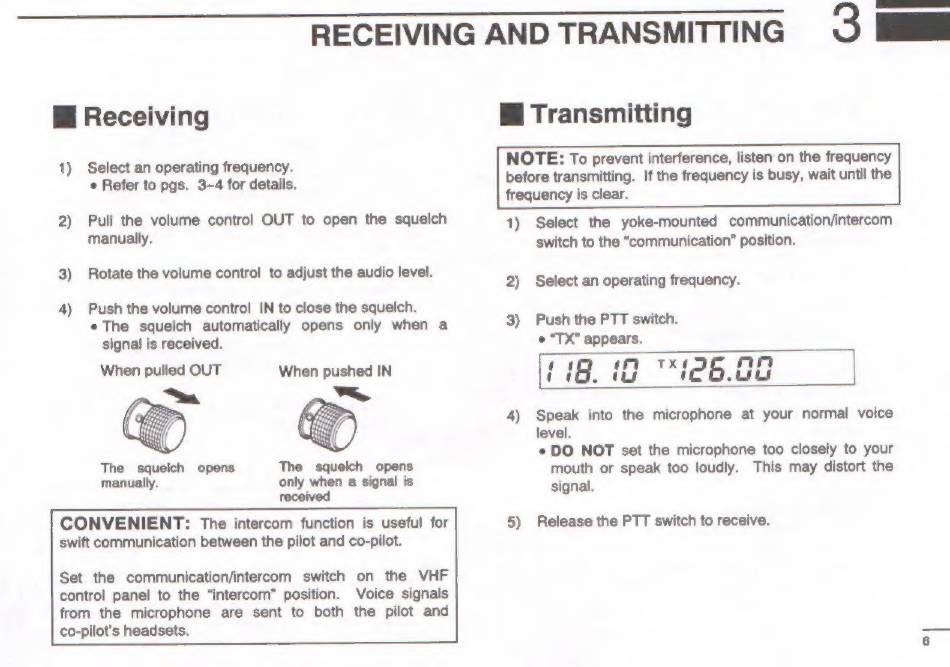

Transmitting - Icom IC-A200 Instruction Manual

1) Select an operating frequency.
¢ Refer to pgs. 3~4 for details.
2) Pull the volume control OUT to open the squelch
manually.
3) Rotate the volume control to adjust the audio level.
4) Push the volume control IN to close the squelch.
The squelch automatically opens only when a
signal is received.
When pulled OUT When pushed IN
The squelch opens
only when a signal is
received
CONVENIENT: The intercom function is useful for
swift communication between the pilot and co-pilot.
The squelch opens
manually.
Set the communication/intercom switch on the VHF
control panel to the "intercom" position. Voice signals
from the microphone are sent to both the pilot and
co-pilot's headsets.
i Transmitting
2) Select an operating frequency.
3) Push the PTT switch.
© "TX" appears.
4) Speak into the microphone at your normal voice
level.
#DO NOT set the microphone too closely to your
mouth or speak too loudly. This may distort the
signal.
5) Release the PTT switch to receive.
