Summary of Contents for MAJORITY Teton Plus

  • Page 1 Teton Plus User Manual H O M E A U D I O • C A M B R I D G E...
  • Page 2: Table Of Contents

    Optical Input ������������������������������������������������������������������������������������������������������������� 14 HDMI ARC Input ������������������������������������������������������������������������������������������������������� 15 Troubleshooting ������������������������������������������������������������������������������������������������������� 18 Spec & Warranty ������������������������������������������������������������������������������������������������������ 19 Safety Information ���������������������������������������������������������������������������������������������������20 EU Declaration of Conformity ��������������������������������������������������������������������������������� 21 year Register your product online for a FREE 3 year Warranty extended warranty at: www.majority.co.uk...
  • Page 3: Box Contents

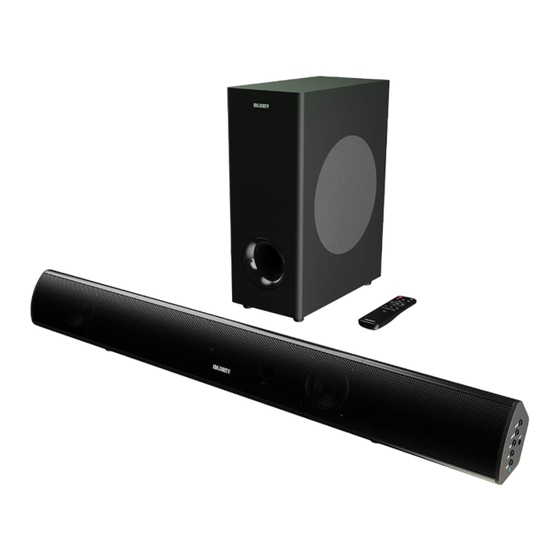

    Box Contents What’s in the Box Majority Teton Plus Soundbar RCA Stereo Audio Cable Subwoofer Power Adapter x 2 Remote Control User Manual 3.3 to 3.5mm Audio Cable AAA Batteries x 2 Note: Remote Control requires 2 × ”AAA” batteries (included)
  • Page 4: Controls & Functions

    Controls & Functions Soundbar Front View Speaker drivers LED Indicator Light Remote control sensor Side View On/Off Change mode (BT, OPTICAL, AUX, RCA, USB, ARC). Adjust volume 3.5mm AUX in socket Bluetooth pair button Back Panel USB port RCA port ARC/HDMI in port OPTICAL in port DC 24V socket...
  • Page 5: Controls & Functions

    Controls & Functions Subwoofer Back Panel Pair mode light Pair reset button DC 24V port Power on/off...
  • Page 6: Controls & Functions

    Controls & Functions Remote Control Power on/off Bass increase/decrease Volume + Back: Use in Bluetooth and USB modes to go back a track. Play/Pause: In Bluetooth/USB mode, press to pause/play media. Volume - 20. Treble increase/decrease Media modes: Select Music, Dialogue or Movie EQ mode 22.
  • Page 7: Additional Info

    TV is switched off, or if there isn’t any audio signal in. Wall Mounting The Majority Teton Plus can be mounted to a wall using the appropriate fittings for your wall type by using the wall mounting brackets positioned at the rear of the unit.
  • Page 8: Mode Indicator Lights

    Mode Indicator Lights Mode Indicator Lights State Indicator Lights Power off AUX mode Green USB mode Purple RCA mode White ARC mode Light blue Optical mode Yellow Bluetooth ready Flashing blue Bluetooth connected Blue Subwoofer Light Indications Indicator Satus Flashing slowly The subwoofer is disconnected Soundbar are wireless pairing with Flashing rapidly...
  • Page 9: Audio Settings

    Audio Settings Audio Settings Mode Bass/Treble Options Db (decibels) refers to sound levels Manually change BASS and TREBLE MUSIC settings (between 0Db and +8Db). BASS+ BASS- TRE+ TRE- functions DIALOG are disabled BASS+ BASS- TRE+ TRE- functions MOVIE disabled Restore to default settings and FLAT manually change BASS and TRE settings between -8Db and +8Db...
  • Page 10: Setup

    The Subwoofer The subwoofer is designed to produce powerful low bass sound effects. The performance is directly related to its placement within the room, when setting up the Teton Plus, make sure to find the best location for maximum bass performance.
  • Page 11: Usb Input

    USB Input Using the USB Input Connect your USB device to the USB port (Ref.9) on the soundbar. Then press the INPUT button on the remote control (Ref.23) or press the INPUT button on the soundbar (Ref.5) to choose USB mode - the light will change to purple.
  • Page 12: Rca Input

    RCA Input Using the RCA Input Use the RCA Stereo Audio Cable to connect the TV’s stereo RCA(L/R) audio output socket to the RCA(L/R) sockets on the unit (Ref.10). Then press the INPUT button on the remote control (Ref.23) or press the INPUT button on the soundbar (Ref.5) to choose the AUX function.
  • Page 13: Hdmi Arc Input

    HDMI ARC Input Using the HDMI ARC Input Connect the HDMI cable (not included) to the HDMI ARC port on the back of the soundbar (Ref.11) to the HDMI (ARC) connector on the TV. NOTE: In the HDMI ARC mode, if your speakers have no audio output and the indicator light is flashing quickly, use your source device (such as a TV, CD player, or cable/satellite receiver).The audio output mode is set to PCM, or turn off the sound source output.
  • Page 14: Optical Input

    Optical Input Using the Optical Input You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (included). Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the soundbar (Ref.12). Press the POWER button on the side panel (Ref.4) or on the remote control (Ref.18) to switch on the unit.
  • Page 15: Hdmi Arc Input

    HDMI ARC Input Using the AUX In Connection Plug one end of a 3.5mm audio input cable (included) into the Line in (Ref.7) on the unit. Before use, disconnect any cables connected to the Stereo RCA Inputs. Plug the other end of the cable into the audio output/headphone output on an MP3 player or other audio source.
  • Page 16 Connecting to the Mains Supply Ensure that the power supply voltage is within the range of 100V~240V. Any other voltage may cause damage to the unit. Unwind the mains cable to its full length. Connect the mains plug to a mains socket.
  • Page 17 INPUT button on the soundbar (Ref.5) repeatedly until Bluetooth mode is selected (indicated by a flashing blue light). From your Bluetooth device, select the “Majority Teton” when prompted to choose a Bluetooth device. If a password is required, enter “0000”. If you encounter issues at this stage, please refer to the user manual for your Bluetooth device for instructions on pairing and connecting Bluetooth devices.
  • Page 18: Troubleshooting

    Troubleshooting Observation Potential Cause/Solution Check that the power is switched on at the wall. No power/function Check that the power adaptor is properly connected to the power outlet. Check whether the unit is set to MUTE. Check that cables are properly installed. If cables are properly installed, please try connecting to your No sound TV using an alternative cable.
  • Page 19: Spec & Warranty

    Net Weight 5.92kg Support If you require further assistance with your new soundbar, please contact our support team on the Majority website: www.majority.co.uk/support Warranty All products come with a standard 12 month warranty. All items must be registered on www.majority.co.uk for the warranty to be valid.
  • Page 20: Safety Information

    ADDITIONAL WARNINGS 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majority.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus.
  • Page 21: Eu Declaration Of Conformity

    EU RP: AR Experts, P.O. Box 5047, 3620 AA Breukelen, The Netherlands US: Izilla Ltd, C/O A.N. Deringer, Inc., 19520 Wilmington Ave, Rancho Dominguez, CA, 90220 Majority is owned and operated by iZilla Ltd. Registered in England with Company No: 08520738...
  • Page 24 www.majority.co.uk...
