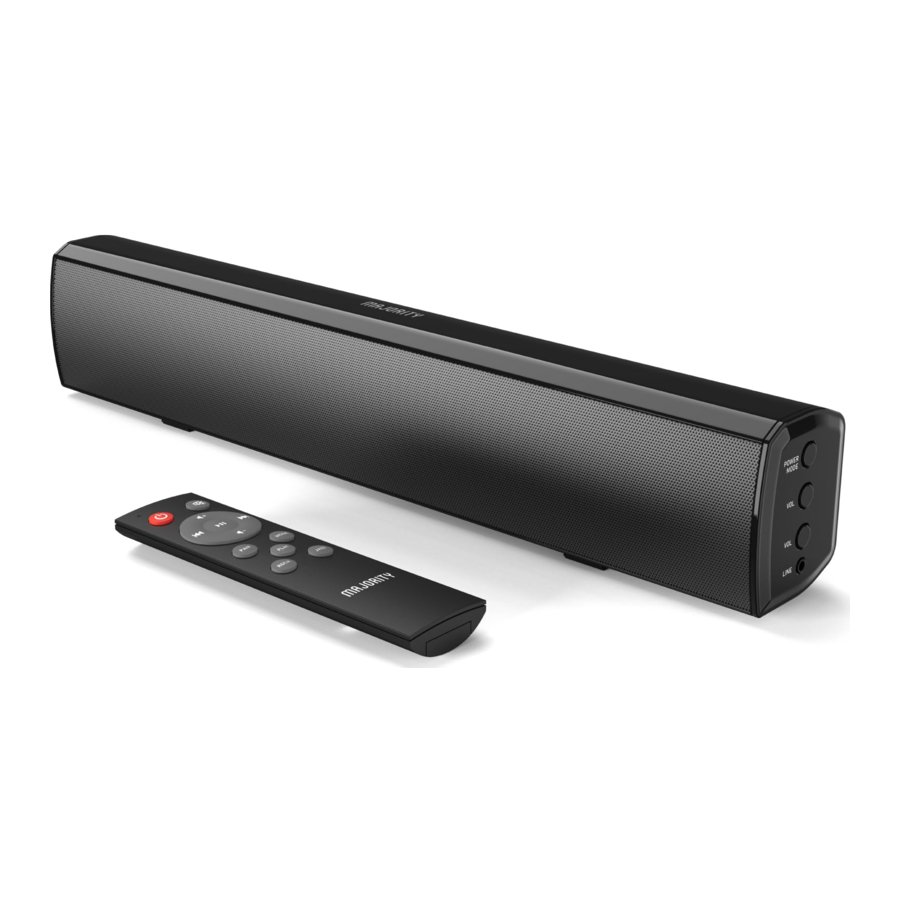

MAJORITY Bowfell - Soundbar Manual

Controls And Functions

Front View/LED Indicator Light

1. Speaker Drivers
2. Remote Control Sensor
3. LED Indicator Light

Side View/Buttons

4. Press and hold for 3 seconds to switch the unit on/off. Press to switch between Bluetooth, USB, LINE in or OPTICAL in
5. Volume increase
6. Volume decrease
7. 3.5mm stereo LINE in

Rear View/Panel Interface Connection

8. USB Socket
9. OPTICAL In Socket
10. DC 12V 1.5A Socket

Automatic Power Off Function

The Majority Bowfell will automatically go to standby mode after 180 minutes if the connected TV is switched off.

Remote Control

11. Power On/Off
12. Volume +: Increase volume
13. Back step: Use in Bluetooth and USB modes to go back a track
14. Play/Pause: In Bluetooth/USB mode, press to pause/play media
15. Volume -: Decrease volume
16. PAIR: In Bluetooth mode, press to pair with your device Press again to disconnect
17. FLAT: Restore default sound settings
18. ROCK: Set the ROCK mode sound effect.
19. MUTE: Mute/unmute sound
20. Forward Step: Use in Bluetooth/USB mode to go forward a track
21. MODE: Switch modes
22. JAZZ: Set the JAZZ mode sound effect.

What's In The Box

1. Majority Bowfell Soundbar
2. Remote Control
3. Adapter
4. 3.5mm to 3.5mm Audio cable
5. 5mm to RCA Audio Cable
6. Instructions Guide

Instructions Guide

Mode Indicator Lights

Using the USB Input

1. Connect your USB device to the USB jack (Ref.8) on the soundbar.

2. Press the "MODE" button (Ref.21) on the remote, and the LED indicator will be LIGHT BLUE.
3. Play music files from the USB device through the soundbar.

Using the Optical Input

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (not included)

Connect the Optical cable to the soundbar (Ref.9).

Press the OPTICAL button on the remote control or on the main unit (Ref.4/Ref.11) to switch to Optical mode. The mode indicator LED will turn ORANGE.
Using the native controls on your connected device, ensure the audio settings are set to PCM or Optical Audio.

Using the RCA Input

You will need: An audio source with an RCA Output and an RCA cable (included)

Connect the RCA cable to the RCA output on the audio source and to the Line in (AUX2) on the speaker bar (Ref.7).

Press the POWER/MODE button on the remote control or the main unit (Ref.4/Ref.11) to select LINE IN mode. The mode indicator LED will turn GREEN.
Using the native controls on your connected device, make sure the audio settings are set to Analog stereo output/RCA/Audio output.

Using the Line In MP3 LINK Connection

Plug one end of a 3.5mm audio input cable (included) into the Line in on the unit (Ref.7).
Plug the other end of the cable into the audio output/headphone output on your MP3 player or other audio source.
Press the POWER/MODE button (Ref.4/Ref.11) repeatedly to enter LINE in mode. The mode indicator will turn GREEN.

Connecting to the Mains Supply

Ensure that the power supply voltage is within the range of 100V~240V. Any other voltage may cause damage to the unit.
Unwind the mains cable to its full length. Connect the mains plug to a mains socket. Ensure that the mains plug is fully inserted into the mains socket.
The mains plug/appliance coupler is used as the disconnect device. The disconnect device must remain readily operable.
Connect the Adapter to the unit and AC Socket (Ref.10).

Ensure all audio connections of the unit are connected before connecting to the mains power socket.
Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

Bluetooth Operation

Pairing a Bluetooth Device for the First Time
Select and press the MODE directly on the remote control (Ref.21) or on the soundbar (Ref.4) until Bluetooth mode is selected, indicated by a flashing blue light.

Using the native controls on your Bluetooth device, select the "Majority Bowfell" when prompted to choose a Bluetooth device.
If your device requests a password, enter the default "0000". If you encounter issues at this stage, please refer to the user manual for your Bluetooth device for instructions on pairing and connecting Bluetooth devices
When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will display a solid blue light After initial pairing, the unit will stay paired unless unpaired manually by the user, or until the device is reset

To unpair, hold down the PAIR button for 3 seconds You can now pair the device with another Bluetooth device
If your device should become unpaired or you find it is unable to connect, repeat the steps above

Troubleshooting

If you encounter an issue with your soundbar, please refer to the following checklist

Specifications

Support

If you require further assistance with your new soundbar, please contact our support team on the Majority website: www.majority.co.uk/support

Safety Information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do no clean the apparatus near or with water.
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect the power from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during light storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to the rain or moisture, does not operate normally or has been dropped.
12. No naked flame sources, such as lit candles, should be placed on the apparatus.
13. Dispose of used electrical products and batteries safely according to your local authority and regulations.

ADDITIONAL WARNINGS
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be places on the apparatus.
Main plug is used to disconnect device and it should remain readily operable during intended use In order to disconnect the apparatus from the main mains completely, the mains plug should be disconnected from the main socket outlet completely.
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Please read all instructions carefully before use and keep for future reference

Risk of electric shock
Do not open

Read all instructions carefully before use and keep for future reference

When servicing, use only identical replacement parts

Please read all instructions carefully before use and keep for future reference

Register your product online for a FREE 3 year extended warranty at: www.majority.co.uk

www.majority.co.uk
