Summary of Contents for CA.MI Clineb Pro
-
Page 2: General Warning

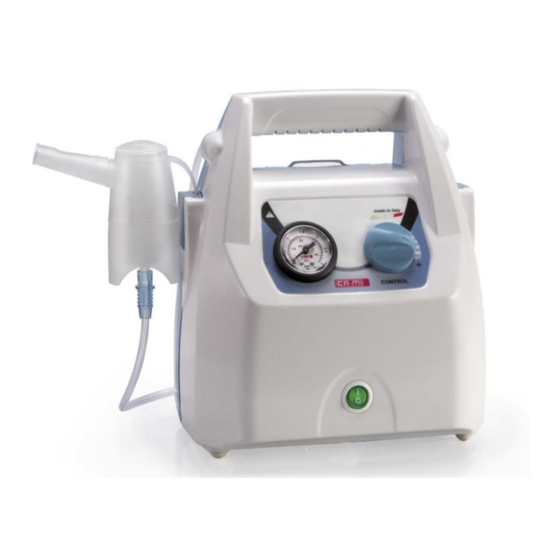

CLINEB PRO is a piston-type compressor nebulizer system working at 230V/50Hz, ideal for intensive hospital and clinic use. High performance with any type of drug, Manufactured with high termal and electric insulation plastic chassis in compliance with the latest European Safety regulations. The oil-free piston compressor has long durability and is equipped with the highly efficient HI-4 nebuliser (featuring 4 different useful positions to adjust the nebulisation speed) to provide fast and accurate treatments. -
Page 3: Technical Characteristics
Only use this device with medicines prescribed by your doctor; Carry out the treatment only using the accessory indicated by the doctor according to the pathology. TECHNICAL CHARACTERISTICS Model CLINEB PRO Typology (MDD 93/42/EEC) Class IIa Medical device Power Feeding 230V ~ / 50 Hz... -
Page 4: Cleaning Device
CLEANING DEVICE Use a soft dry cloth with not – abrasive and not – solvent detergents. The device's plug must be removed from the wall socket before proceeding with any cleaning procedures. SIMBOLOGY Class II isolation equipment CE marking in conformity with EC directive 93/42/EEC and subsequent changes General warnings and/or specifications Consult the instruction manual... - Page 5 NB: The measures and curves are not valid for the high viscosity suspension drug. CLEANING AND WASHING OF ACCESSORIES Before using and/or after cleaning, pay special attention to ensure that all the accessories supplied with the device are intact. Switch off the device before cleaning it and disconnect the mains cable from the electrical socket. PREPARATION Pull out the air tube from the nebulizer and leave it plugged into the air outlet nozzle of the device;...
-
Page 6: Standard Accessories
STANDARD ACCESSORIES ACCESSORIES HI-4 KIT – REF RE 300350 (Nebulizer HI-4, Adult Mask, Pediatric Mask, Air Tube and Mouth-piece, Nosepiece) Power Cable (SP.0021) For each individual patient it’s recommended to use the nebulizer for 6 months or for a maximum of 120 treatments. The nebulizer must be replaced after a long period of inactivity, if it is deformed or broken, or if the nebulizer nozzle is blocked by dry medicine, dust, ecc.. -
Page 7: Maintenance
MAINTENANCE The CLINEB PRO atomiser does not need maintenance or lubrication. With regard to training, given the information contained in the user manual and since it is easy to understand the said device, it doesn’t appear to be necessary. Before use always check correct functioning and safety of the device. Carry out disinfection as described in the “CLEANING ACCESSORIES”... - Page 8 Inhalation Valve: Three vents on top are mechanically opened by patient inhalation force, entraining ambient air. The airflow generated by the compressor along with the airstream entrained by patient enhance the nebulisation activity inside the chamber, thus increasing the volume of aerosol delivered to the patient. Exhalation Valve: While remaining closed during inhalation to prevent aerosol to be wasted in the air, the exhalation valve opens when patient starts exhaling, directing the exhaled air in the...
-
Page 9: Risk Of Electromagnetic Interference And Possible Remedies
This section contains information regarding the conformity of the compliance with the EN 60601-1-2 (2015) Standard. CLINEB PRO is a medical device particularly suitable for home applications. CISPR group and category classification: group 1, category B. CLINEB PRO is an electromedical device that requires special precautions regarding electromagnetic compatibility and needs to be installed and commissioned according to the information specified in the accompanying documents.
