Crosswater Limit LI120WNC Manual

LIMIT

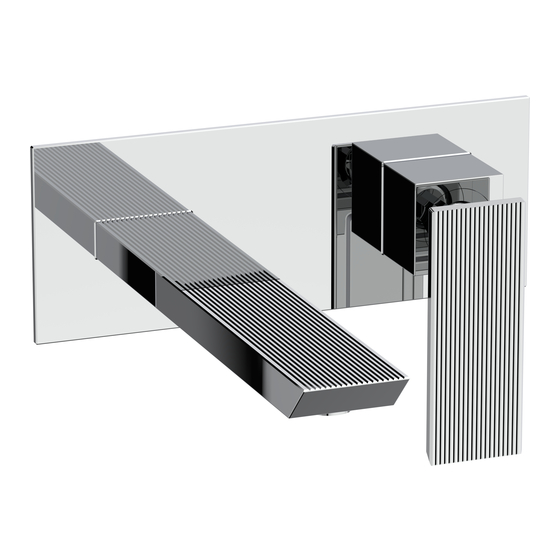

2 Hole Basin Set Wall Mounted No Pop-Up Waste
i
IMPORTANT INFORMATION BEFORE YOU START
Please read carefully and keep this information for further reference.
All products manufactured and supplied by
Crosswater are safe provided they are installed, used
correctly and receive regular maintenance in accordance
with these instructions. If you are in any doubt about your
ability to install this product safely you must employ the
services of an experienced qualified plumber.These fittings
need to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings)
Regulations 1999 and Scottish Byelaws 2004.
Operating pressure range: Minimum 0.2 bar, Maximum 5.0
bar. Maximum static pressure: 10.0 bar.
Note: Nominally equal (balanced) inlet supply pressures are
recommended for optimum performance with mixer taps.
1
Designed to comply with BS EN 200 for single taps
/combination taps and BS EN 817 for single lever mixers, for
water systems of type 1 and 2 general technical specifications
and to be used within systems designed to BS 6700. BS 6700
recommends the temperature of stored water should never
exceed 65°C.
meet all normal requirements and will minimise the build up
of lime scale in hard water areas. If the fitting is installed at
low pressure (tank fed), then the minimum distance from the
highest installed position of the outlet to the underside of the
cold tank should be at least 2 metres to ensure adequate
performance.
PRODUCT CODES:
LI120WNC
LI120WNF
LI120WNM
V10423
