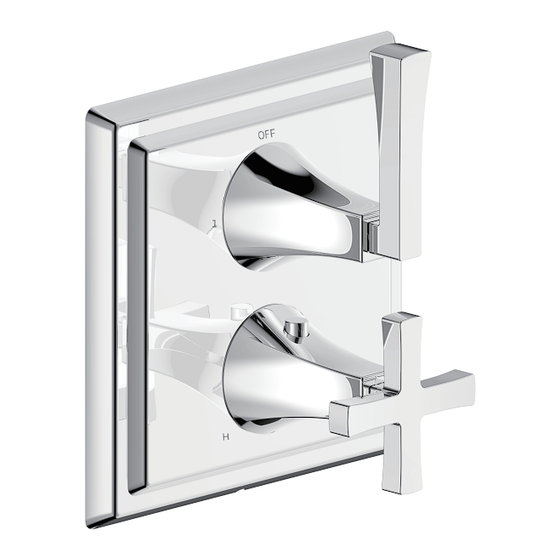

Trim for dual-handle thermostatic valve with volume control and diverter

Advertisement

Leyden Trim for Dual-handle Thermostatic Valve with
Volume Control and Diverter
14-20-T
Installation Instructions
Adjustable Wrench
For ease of installation you will need:
● To read the installation instructions completely before beginning.
● To read all warnings, care, and maintenance information.
● To complete the valve rough-in prior to installing this trim kit.
Tools You Will Need
Adjustable Pliers
Before beginning installation, check for any
damage that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
Screwdriver
15122863-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leyden 14-20-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Crosswater Leyden 14-20-T

  • Page 1 Leyden Trim for Dual-handle Thermostatic Valve with Volume Control and Diverter 14-20-T Installation Instructions Tools You Will Need Adjustable Wrench Adjustable Pliers Screwdriver Before beginning installation, check for any For ease of installation you will need: damage that may have occurred during transport. ●...
  • Page 2: Installation Instructions

    Install escutcheon with 2 screws. making sure the temperature Please contact your Crosswater Do not overtighten the screws. override button facing straight up. London dealer. Secure with screw.
  • Page 3 Safety Safety Temperature Temperature Turn on the water supply, with the Rotate the cartridge stem to adjust temperature control handle in the safety temperature. Rotate clockwise default position, measure the to reduce temperature while rotate Turn off the water supply. Remove temperature of the water.
  • Page 4: Cleaning Instructions

    Reinstall handle, escutcheon. Installation completed. Cleaning Instructions Rinse away any traces of soap and gently dry with a clean, soft cloth after each use. Rinse completely with water and dry any overspray. This will maintain the finish and avoid water spotting. To remove mineral deposits, use a 50/50 solution of white vinegar and water.
  • Page 5: Replacement Parts

    14-20-T Replacement Parts NO. Description Part NO. Spring Button 9Q1112 & & Handle Assembly 9Q1208 Hex Set Screw 9Q1356NT Screw M4X80 5T0F0266NT Extension kit 9Q242000 Temperature Range Control Ring 5K202720PL Ordered Separately if needed 15122863-D...
  • Page 6: Installation Dimensions

    4 " 7-3/16 " Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 www.crosswaterlondon.com...
