KA01614F/00/EN/01.23-00
71610093
2023-04-22
advanced physical layer
Products

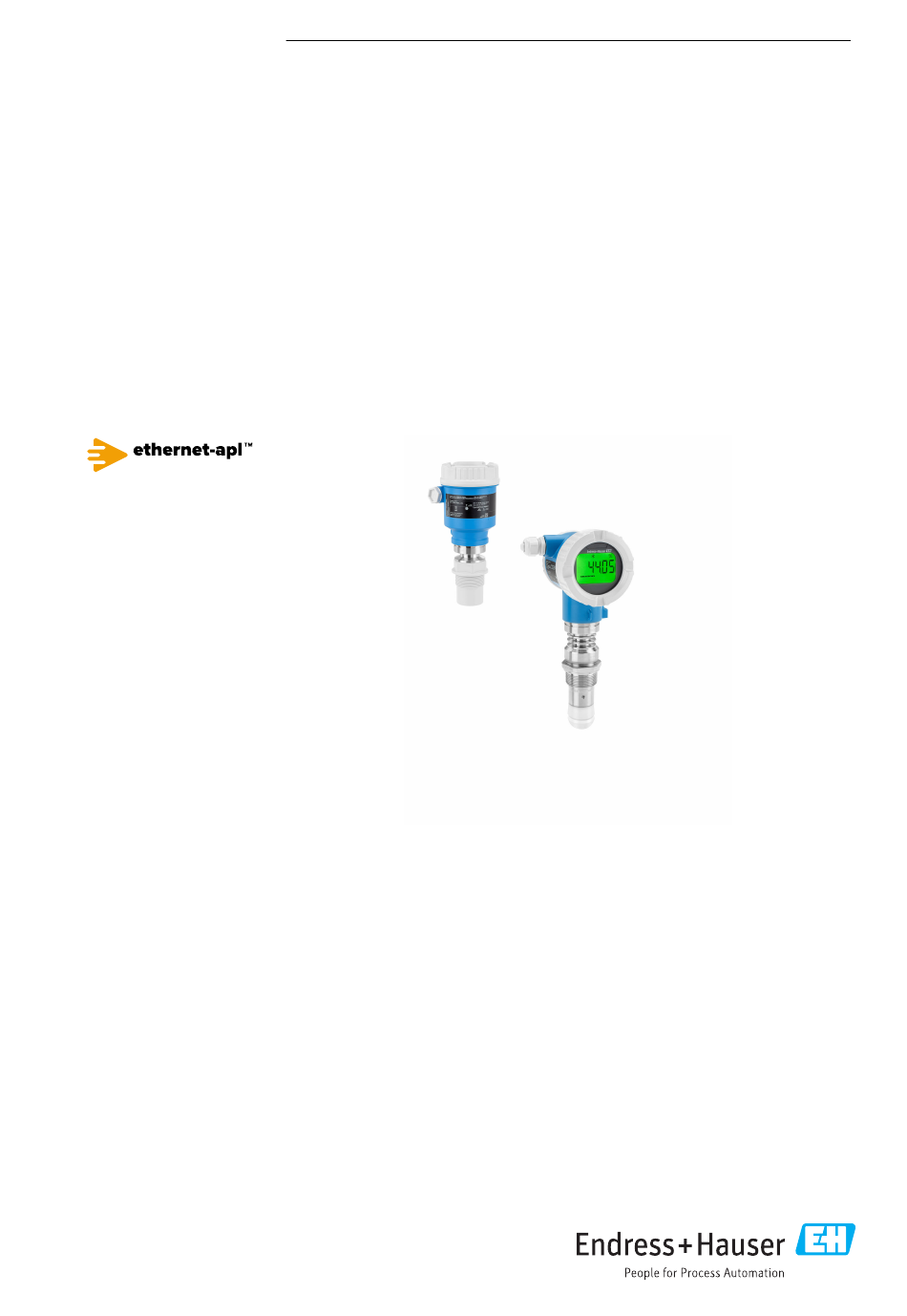

Brief Operating Instructions
Micropilot FMR66B
PROFINET with Ethernet-APL
Free space radar
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Micropilot FMR66B PROFINET with Ethernet-APL
Summary of Contents for Endress+Hauser Micropilot FMR66B PROFINET with Ethernet-APL
- Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
- Page 2 Micropilot FMR66B PROFINET with Ethernet-APL Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
Micropilot FMR66B PROFINET with Ethernet-APL Table of contents Table of contents Symbols ................4 Safety symbols . -
Page 4: Symbols
Symbols Micropilot FMR66B PROFINET with Ethernet-APL Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 5: Requirements For Personnel
Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Workplace Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser... -
Page 7: Incoming Acceptance
All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate. All the information about the measuring device is displayed. -
Page 8: Manufacturer Address
Storage and transport Micropilot FMR66B PROFINET with Ethernet-APL • Firmware version, hardware version • Approval-related information, reference to Safety Instructions (XA) • DataMatrix code (information about the device) Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. -
Page 9: Mounting Requirements
Micropilot FMR66B PROFINET with Ethernet-APL Mounting Install the device or turn the housing so that the cable entries do not point upwards. A0029263 Always firmly tighten the housing cover and the cable entries. Counter-tighten the cable entries. A drip loop must be provided when laying the cables. - Page 10 Mounting Micropilot FMR66B PROFINET with Ethernet-APL Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. 10.2.2 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes.
-
Page 11: Mounting The Measuring Device
Micropilot FMR66B PROFINET with Ethernet-APL Mounting 10.2.5 Optimization options Mapping Measurement can be optimized by electronically suppressing interference echoes. See the Confirm distance parameter. 10.3 Mounting the measuring device 10.3.1 Encapsulated antenna, PVDF 40 mm (1.5 in) Information concerning threaded connections •... - Page 12 Mounting Micropilot FMR66B PROFINET with Ethernet-APL Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. Maximum nozzle length H as a function of the nozzle diameter D D 50 to 80 mm (2 to 3.2 in) 750 mm (30 in) 80 to 100 mm (3.2 to 4 in)
- Page 13 Micropilot FMR66B PROFINET with Ethernet-APL Mounting A0046660 Plastic single compartment housing (no locking screw) Aluminum single compartment housing Single compartment housing, 316L, hygiene (no locking screw) Dual compartment housing Dual compartment housing, L-form Locking screw NOTICE The housing cannot be unscrewed fully.
-
Page 14: Post-Mounting Check
Electrical connection Micropilot FMR66B PROFINET with Ethernet-APL Unscrew the electronics compartment cover from the transmitter housing and check the cover seal. Press the release mechanism and remove the display module. Turn the display module to the desired position: maximum 4 × 90 ° in each direction. Fit the display module on the electronics compartment in the desired position until it clicks into place. - Page 15 Micropilot FMR66B PROFINET with Ethernet-APL Electrical connection NOTICE If the securing screw is not positioned correctly, the cover cannot provide secure sealing. ‣ Open the cover: slacken the screw of the cover lock with a maximum of 2 turns so that the screw does not fall out.
- Page 16 Electrical connection Micropilot FMR66B PROFINET with Ethernet-APL A0046583 Single compartment housing, plastic Single compartment housing, aluminum Single compartment housing, 316L hygiene (Ex device) Dual compartment housing Dual compartment housing, L-form Ground terminal for connecting the potential matching line WARNING Explosion Hazard! ‣...
-
Page 17: Connecting The Device
Micropilot FMR66B PROFINET with Ethernet-APL Electrical connection 11.2 Connecting the device A0046659 Plastic single compartment housing Aluminum single compartment housing Single compartment housing, 316L hygiene Dual compartment housing Dual compartment housing, L-form Connection compartment cover Devices with a single compartment housing, 316L hygiene, and conduit gland must be connected as end-of-line devices. - Page 18 Electrical connection Micropilot FMR66B PROFINET with Ethernet-APL Cable outer diameter The cable outer diameter depends on the cable gland used • Coupling, plastic: ⌀5 to 10 mm (0.2 to 0.38 in) • Coupling, nickel-plated brass: ⌀7 to 10.5 mm (0.28 to 0.41 in) •...
- Page 19 Micropilot FMR66B PROFINET with Ethernet-APL Electrical connection 11.2.4 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). The specified cable gland must be used.
- Page 20 Electrical connection Micropilot FMR66B PROFINET with Ethernet-APL 11.2.5 Terminal assignment Single compartment housing A0042594 3 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
- Page 21 Micropilot FMR66B PROFINET with Ethernet-APL Electrical connection Dual compartment housing A0042803 4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
- Page 22 Electrical connection Micropilot FMR66B PROFINET with Ethernet-APL Dual compartment housing, L-form A0045842 5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.6 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...
-
Page 23: Ensuring The Degree Of Protection
Micropilot FMR66B PROFINET with Ethernet-APL Electrical connection The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover. -
Page 24: Operation
Operation Micropilot FMR66B PROFINET with Ethernet-APL Cover lock tightened correctly? Operation 12.1 Reading off the device locking status Displaying active write protection: • In the Locking status parameter Menu path of local display: at the top operating level Menu path of operating tool: System → Device management •... -
Page 25: Establishing A Connection Via Fieldcare And Devicecare
Computer with Web browser or with operating tool (e.g.,, DeviceCare) Automation system Field Xpert SMT70 Mobile handheld terminal Local operation via display module 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser... -
Page 26: Configuring The Operating Language
Commissioning Micropilot FMR66B PROFINET with Ethernet-APL 13.4 Configuring the operating language 13.4.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: Press the key for at least 2 s. A dialog box appears. -
Page 27: Configuring The Device
Micropilot FMR66B PROFINET with Ethernet-APL Commissioning 13.5 Configuring the device 13.5.1 Level measurement in bulk solids 100% A0016934 7 Configuration parameters for level measurement in bulk solids Reference point of measurement Length of antenna + 10 mm (0.4 in) Distance Level "Empty calibration"... - Page 28 *71610093* 71610093 www.addresses.endress.com...
